Surveillance Mega-Store Ultimate Destination for All CCTV Needs
Home HD-TVI High Definition Cameras and DVRs HD-TVI Security Cameras Pan Tilt Zoom, PTZ Speed Dome HD TVI Cameras LTS PTZH212X23-C Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP - In Ceiling

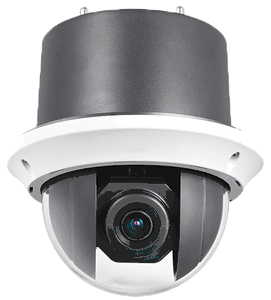

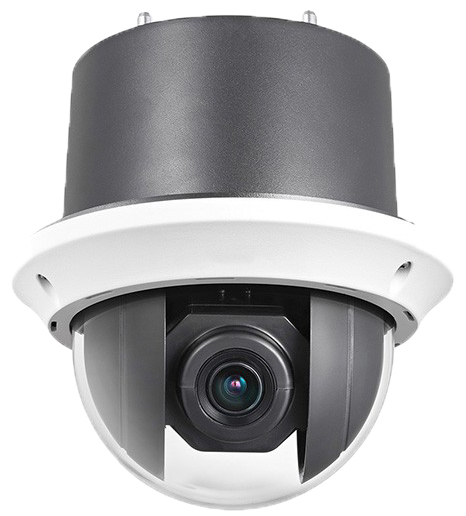

LTS PTZH212X23-C Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP - In Ceiling
LTS PTZH212X23-C Platinum HD-TVI PTZ High Speed Dome Camera 2.1MP - In Ceiling
- 2.1MP High Definition
- 1920X1080P@30fps
- 4" dome in-ceiling and flush mount
- 4-92mm, 23x Optical Zoom
- 3D DNR, DWDR, 3D Privacy Masking
- AC 24V
- 4"(Φ)
- CVBS Output
- Indoor Only
Model | PTZH212X23-C | |
Camera Series | Platinum Series | |
Camera Resolution | 2.1MP / 1080P | |
Camera Technology | TVI | |
Camera Housing | PTZ | |
Featured Product | No | |
Camera | ||
Image Sensor | 1/3" Progressive Scan CMOS | |
Min. Illumination | Color: 0.05 Lux@(F1.6, AGC ON); B/W: 0.001 Lux@(F1.6, AGC ON) | |
Max. Image Resolution | 1920x1080 | |
White Balance | Auto/Manual/ATW/Indoor/Outdoor | |
AGC | Auto / Manual | |
S / N Ratio | ≥ 50dB | |
3D DNR | Support | |
DWDR | Support | |
Shutter Time | 1/1 ~ 1/10,000s | |
Day and Night | IR Cut Filter | |
Privacy Mask | 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen | |
Lens | ||
Focal Length | 4-92mm, 23x | |
Digital Zoom | 16x | |
Zoom Speed | Approx.3s (Optical Wide-Tele) | |
Angle of View | 49 - 2.2 degree (Wide-Tele) | |
Min. Working Distance | 10 - 1000mm (Wide-Tele) | |
Aperture Range | F1.6 ~ F3.5 | |
Focus Mode | Auto / Semiautomatic / Manual | |
Pan and Tilt | ||
Pan Range | Pan: 360° endless | |
Pan Speed | Pan Manual Speed: 0.1° ~ 160°/s, Pan Preset Speed: 160°/s | |
Tilt Range | 0° - 90° (Auto Flip) | |
Tilt Speed | Tilt Manual Speed: 0.1° - 120°/s, Tilt Preset Speed: 120°/s | |
Number of Preset | 256 | |
Patrol | 8 Patrols, Up to 32 Presets Per Patrol | |
Pattern | 4 Patterns, with the total recording time not less than 10 minutes | |
Park Action | Preset/Patrol/Pattern/Pan scan/Tilt scan/Random Scan/Frame scan/Panorama scan | |
RS-485 Communication Diagnosis | Support | |
Input/Output | ||
HD Output | 1 1080P output, 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC | |
CVBS Output | 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC | |
Alarm Input | 2 | |
Alarm Output | 1 | |
RS-485 Interface | Half-duplex mode; Self-adaptive Pelco-P, Pelco-D protocol | |
Infrared | ||
IR Distance | 492ft (150m) | |
IR Intensity | Automatically adjusted, depending on the zoom ratio | |
General | ||
Power | 24V AC, Max. 12W | |
Working Temperature /Humidity | -30°C - 65°C(-22°F - 149°F) 90% or less | |
Impact Protection | IK08 | |
Dimensions | Φ7.3"×13.0" (Φ185×330 mm) | |
Weight | 8.8 lbs(4.0 Kg) |
