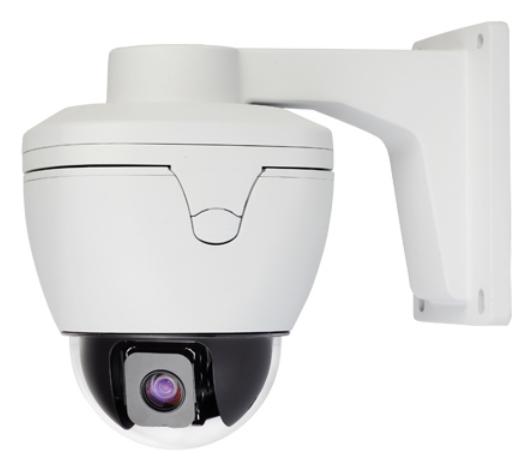

PT9200-SDI 1/3" Panasonic CMOS Lens 1080P Resolution 3X Optical SDI PTZ Camera
- Integrated structure, convenient and fast installation
- Built-in heater and radiating system. 4 alarms input.
- 1 alarm output as factory default, IP board is optional
- Built-in 36 x zoom (3x optical, 12x digital)
- 50%. High Sensitivity Mode: 0.25 lx (F1.2. ICR off); 0.03 lx (F1.2. ICR on)
- 50% Normal Mode: 1.0 lx (F1.2. ICR off): 0.1 lx (F1.2. ICR on)
- Signal System : 1080p/25, 1080L/60 (30 PsF), 1080i/50 (25 PsF) 720p/60, 720p/50. 720p/30, 720p/25
- 128 presets(titles can be set).
- 4 tours; 8 programmable zones(titles can be set); 4 pattern, each record time is more than 180 seconds;4 scan, support camera scanning repeatly between right limit and left limit at an appointed speed.
- Park action function, can auto-call presets or start-up tour, pattern, scan and display areas after dome is idle for period of time.
- All-in-one. highly compact camera ideal for demanding applications such as video surveillance, public transportation. sports, video conferencing and more
- Screen will display pan/tilt position, zoom etc.
- IP66 all-day defend cover.
- Built-in TVS1500W lightning-proof, surge-proof and wave-proof.
PT9200-SDI | |
Sensor | 1/3" Sony Original Zoom Camera |
Scanning System | 2:1 Interlacing |
Effective Pixels | Approximately 3.27 Megapixels |
White Balance | Auto, ATW, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp (Fix/Auto), One-push, Manual |
Back-Compensation | Off /Auto |
Focus | f=3.0 mm (wide) - 9.00 mm (tele) F1.2 to F2.1 |
Shutter | 1s-1/10.000s |
Manual Speed | Pan (0.5? - 160? /s) , Tilt (0.5? - 90? /s) |
Preset Speed | 320? /s |
Rotation | Continuously 360? ; Tilt 0? ~ 90? with Auto-Flip |
Speed Proportion | As the Length of Focus, to auto-adjust the speed |
Preset | 128 preset, title can be edited |
Auto-flip | Tilt down 90?; with auto-flip 180? |
Scan | 355? Programmable, 4 Scans |
Display Zone | 8 programmable zones with titles |
Sync Model | Internal |
Decoder | Built-in |
Video Output | Female BNC |
Remote Controlling | RS 485 |
Baud Rate(RS485) | 2400 / 4800 / 9600 / 19200 bps |
ID Range | 1 ~ 254 |
Temperature | -22?F ~ 155?F |
Humidity | 0 ~ 95% |
Protection Grade | IP 66, 150W lightning-proof, Surge-Proof, All-day Defend Cover |
Pwer Supply | AC 24V |
Power Consumption | < 12 W |
