Home New Arrivals LTS POE-SW801N PoE Port Switch with 1 Port Uplink

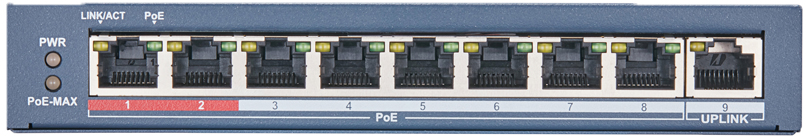

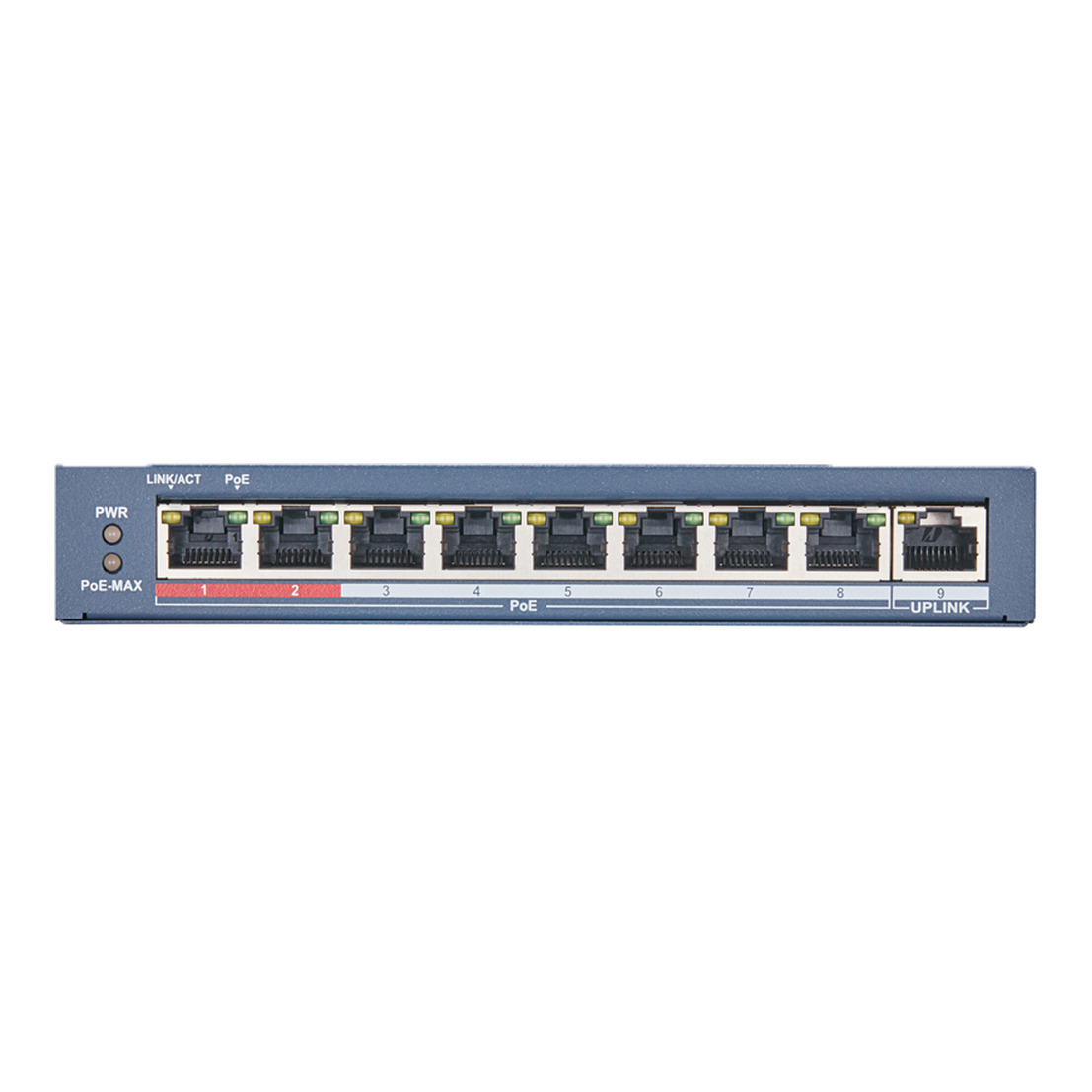

LTS POE-SW801N PoE Port Switch with 1 Port Uplink
LTS POE-SW801N PoE Port Switch with 1 Port Uplink
- PoE Port Switch with 1 Port Uplink
- 110W, 802.3af/at
- 10/100Mbps, Up to 820ft
- UL Listed
Model | POE-SW801N |
Network Parameters | |
Port number | 8 × 100 Mbps PoE ports, 1 × 100 Mbps Ethernet port |
Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Forwarding mode | Store-and-forward switching |
Working mode | Standard mode (default); Extend mode |
High priority ports | Ports 1 to 2 |
Ports for long-distance transmission | Ports 1 to 8 |
MAC address table | 2 K |
Switching capacity | 1.8 Gbps |
Packet forwarding rate | 1.339 Mpps |
Internal cache | 1 Mbits |
PoE Power Supply | |
PoE standard | IEEE 802.3af, IEEE 802.3at |
PoE power pin | Supports 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply |
PoE port | Ports 1 to 8 |
Max. port power | 30 W |
PoE power budget | 115 W |
Max. power consumption | 120 W |
General | |
Shell | Metal material, fan-free design |
Gross weight | 1.01 kg (2.23 lb) |
Net weight | 0.35 kg (0.77 lb) |
Dimension (L × H × D) | 170 mm × 27.6 mm × 93.1 mm (6.7" × 1.1" × 3.7") |
Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Storage temperature | -40°C to 85°C (-40°F to 185°F) |
Operating humidity | 5% to 95% (no condensation) |
Storage humidity | 5% to 95% (no condensation) |
Power supply | 48 VDC, 2.5 A |
Power consumption in idle | 5 W |
