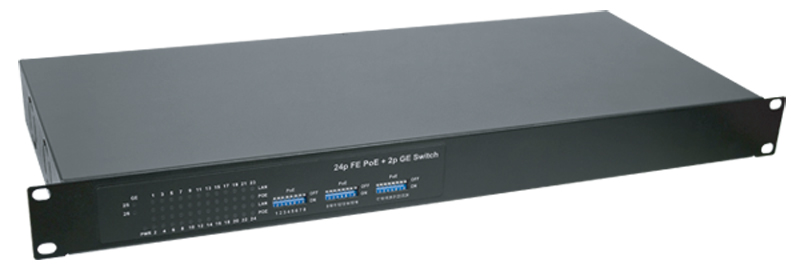

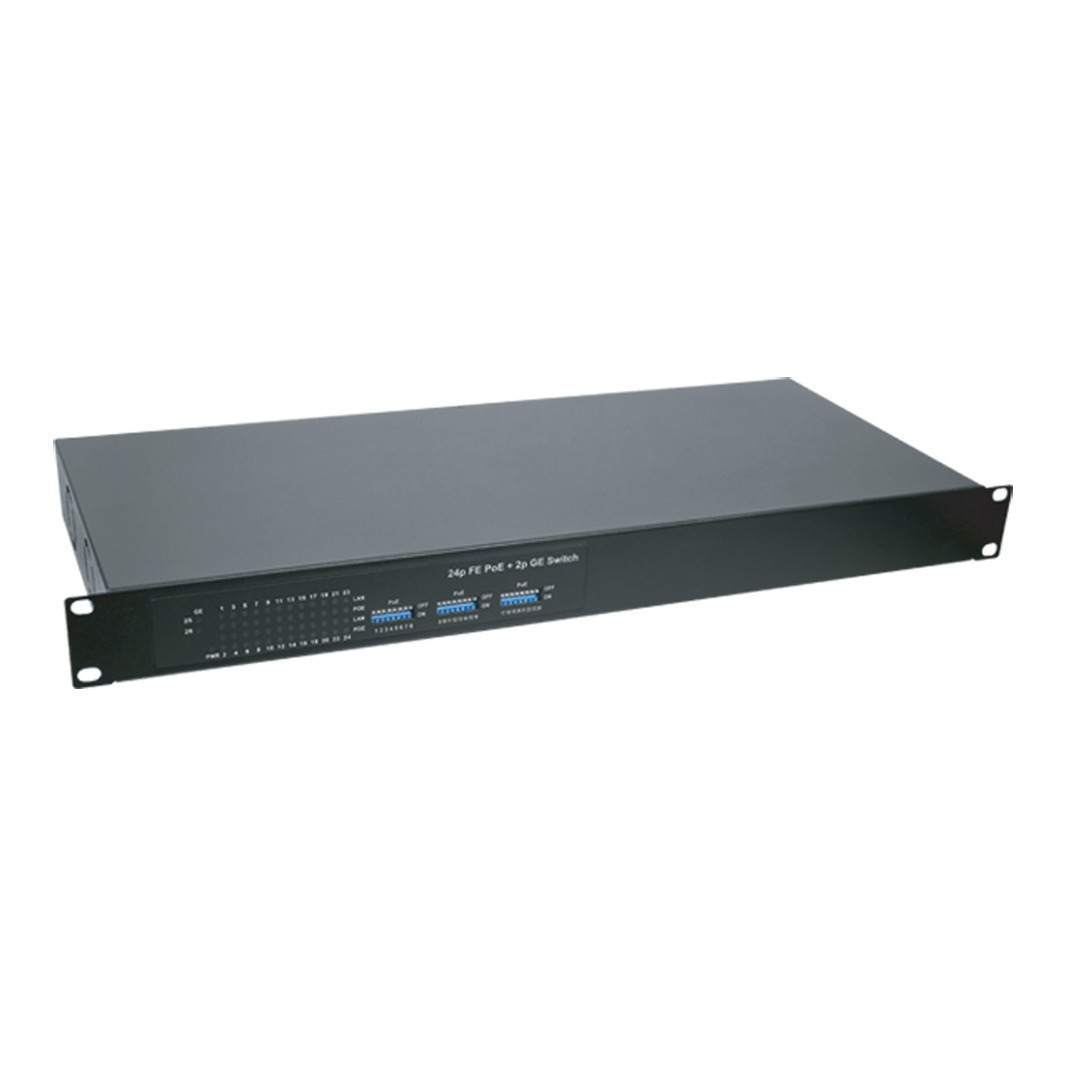

LTS POE-SW2402A PoE 24 Port + 2 Port GE Switch
LTS POE-SW2402A PoE 24 Port + 2 Port GE Switch
- 24 PoE Ports, Plus 2 Port GE Switch + DIP Switch
- Up to 1000Mbps Data transfer rate
- 250W Max Power
- Max 30W per port
- IEEE 802.3at/af
- Power Protection on low powered devices
- Unmanaged
- Ports automatically detect devices
Model | POE-SW2402A |
Standard | IEEE 802.3/u 10/100/10000 Base T/TX, IEEE 802.3x Flow Control IEEE 802.3at/af PoE Compliant Midspan PoE compliant |
Number of PoE Ports | 24 PoE Ports + 2 Port GE Switch |
MAC Address Table | 8K |
Buffer Memory | 512KB |
Transmission Method | Store and Forward |
Filtering/Forwarding Rates | 1000Mbps Port - 1,488,000pps 100Mbps Port - 148,800pps 10Mbps Port - 14,880pps |
Transmission Media | 10BaseT Cat 3, 4, 5 UTP 1000/100Base TX Cat.5 UTP/SFP |
Output PoE Pin | 4, 5, 7, 8 |
LED Indicators | Port 1~24: 10/100M, PoE ON?OFF Power, Port 25, 26: 10/100/1000M |
Power Input | 100~240V/AC, 50~60 Hz |
Power Output | 56VDC 3.6A (250W) |
Power Consumption | 250W Max Power, 30W Per Port |
Dimensions | 480X118X40mm (LxWxH) |
Weight | 3.15 lbs |
Operating Temperature | 0șC to 40 șC |
Humidity | 10 to 90% RH (Non-condesending) |
Certifications | FCC Class A, CE |
