Home New Arrivals LTS POE-SW1602N 16 PoE Port Switch with 2 Gb Uplink and 2 SFP

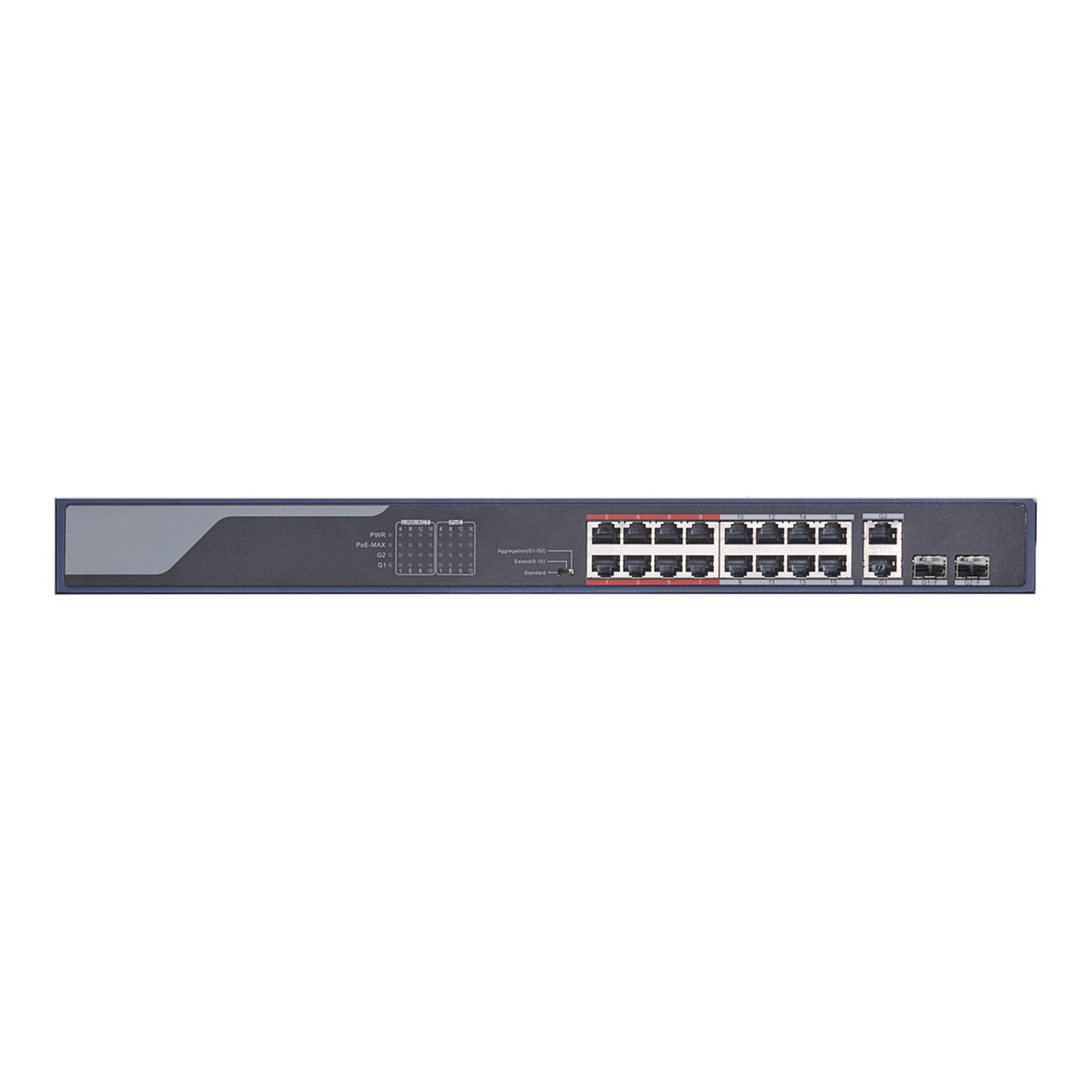

LTS POE-SW1602N 16 PoE Port Switch with 2 Gb Uplink and 2 SFP
LTS POE-SW1602N 16 PoE Port Switch with 2 Gb Uplink and 2 SFP
- 16 PoE Port Switch with 2 Gb Uplink and 2 SFP
- 230W, 802.3af/at
- 10/100Mbps Up to 820ft
- UL Listed
Model | POE-SW1602N |
Network Parameters | |
Port number | 16 × 100 Mbps PoE ports, 2 × 1000 Mbps combos |
Port type | RJ45 port, full duplex, MDI/MDI-X adaptive |
Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
Forwarding mode | Store-and-forward switching |
Working mode | Standard mode (default); Extend mode |
High priority ports | Ports 1 to 8 |
Ports for long-distance transmission | Ports 9 to 16 |
Link aggregation port | G1 to G2 |
MAC address table | 4 K |
Switching capacity | 7.2 Gbps |
Packet forwarding rate | 5.356 Mpps |
Internal cache | 2.75 Mbits |
PoE Power Supply | |
PoE standard | IEEE 802.3af, IEEE 802.3at |
PoE power pin | Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply |
PoE port | Ports 1 to 16 |
Max. port power | 30 W |
PoE power budget | 230 W |
Max. power consumption | 250 W |
General | |
Shell | Metal material |
Gross weight | 3.47 kg (7.65 lb) |
Net weight | 2.65 kg (5.84 lb) |
Dimension (L × H × D) | 440 mm × 44 mm × 220.8 mm (17.3" × 1.73" × 8.7") |
Operating temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Storage temperature | -40°C to 85°C (-40°F to 185°F) |
Operating humidity | 5% to 95% (no condensation) |
Storage humidity | 5% to 95% (no condensation) |
Power supply | 100 to 240 VAC, 50/60 Hz, Max. 4 A |
Power consumption in idle | 20 W |
