Home IP Cameras and Network Video Recorders NVRs IP Accessories, PoE Switches, Power Injectors LTS PoE-SW1600E 16-Port 10/100 Base-T(x) PoE Switch

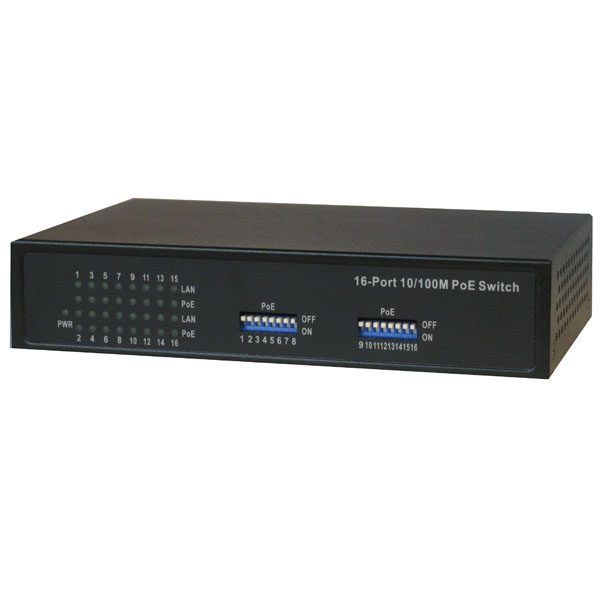

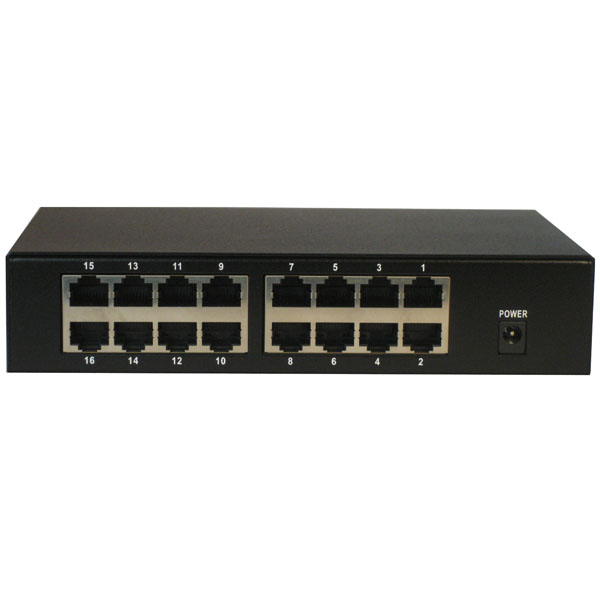

LTS PoE-SW1600E 16-Port 10/100 Base-T(x) PoE Switch
LTS PoE-SW1600E 16-Port 10/100 Base-T(x) PoE Switch
- 16×10/100 Base-T(x) with PoE(Half/Full power)
- Compatible with IEEE802.3af PoE standard
- 48V/DC per port output; 15.4W Max per port
- Max. PoE Power (115 Watts)
Model | PoE-SW1600E | |
Standards | IEEE 802.3 10bA | |
IEEE 802.3u 100BaseTX | ||
IEEE 802.3x Flow Control | ||
IEEE 802.3af/midspan PoE complaint | ||
Features | MAC Address: 2K | |
Buffer Memory: 512K bits | ||
Transmission Method: Store and Forward | ||
Filtering/Forwarding Rates | 100Mbs port- 148,000pps | |
10Mbps port- 14,880pps | ||
Transmission Media | 10BaseT Cat. 3, 4, 5 UTP/STP | |
100BaseTX Cat.5 UTP/STP | ||
PoE on each Port | 15.4W | |
Output PoE Pin | Input Voltage | DC 12V |
LED Indicators | Per Port: Link/Act with 10/100M, PoE ON/OFF | |
Per Unit: Power | ||
Power Adaptor | Input: 100-240VAC, 50-60Hz | |
Output: 48VDC 2.5A (120W) | ||
Dimension | 188x118x38mm (LxWxH) | |
Weight | 1.5kg | |
Operating Temperature | 0 to 50? C | |
Humidity | 10 to 90% RH (non-condensing) | |
Certification | FCC Class A, CE |
