Home New Arrivals LTS POE-PTZPI60N 60W PoE Injector

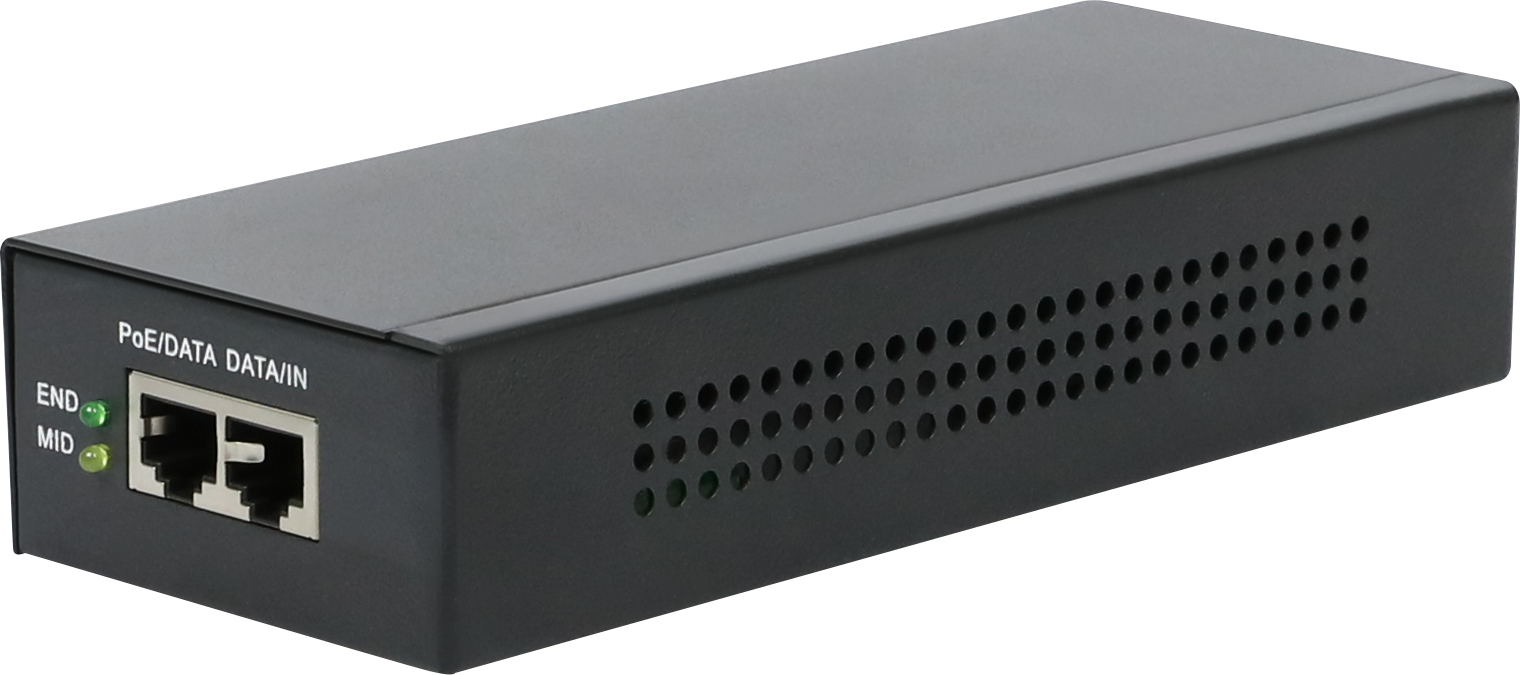

LTS POE-PTZPI60N 60W PoE Injector
LTS POE-PTZPI60N 60W PoE Injector
- RoHS compliant
- Compatible With All IEEE pre 802.3af, 802.3at and Legacy Powered Devices
- Input voltage:90Vac~264Vac
- Support 300Vac input for long time work
- Output over current protection
- Short circuit protection
- MTBF ≥1, 000, 000 hrs
- Surge protection
- CE mark
Model | POE-PTZPI60N |
Input Voltage | AC100V~240V |
Output Voltage Range | 56V(-4%~+2%) |
Output Power | 60W |
Pass Through Data Rates | 10/100/1000 Mbps |
Ports | Two 10/100/1000M adaptive RJ45 ports, one is DATA/IN, another is PoE/DATA |
LED Indicator | Power & PoE Status(The module operates normally when MID and END are on) |
Base Function | Compliance to IEEE 802.3 at/af Standard |
Protection Methods | Output Over Current Protection, Short Circuit Protection |
Network Medium | 10BASE-T: unshielded twisted pair category 3, 4 or 5 100BASE-TX: unshielded twisted pair category 5 and above 1000BAST-TX: unshielded twisted pair category 5 and above |
Operating Humidity | 5% ~ 90% |
Weight | 473g |
Dimension | 185mm x 70.8mm x 37mm (L x W x H) |
Operating Temperature | -20 ~ 60 °C |
