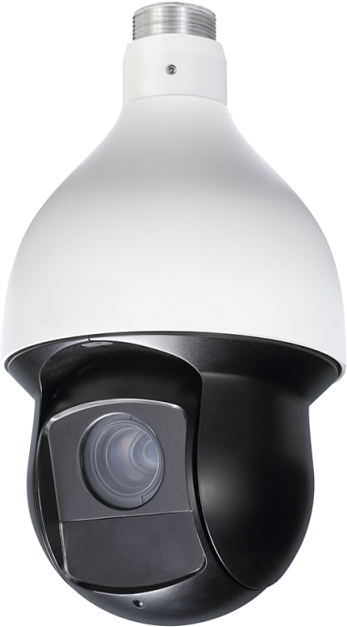

ENS PDN59U225H-I 2MP 25x Starlight IR PTZ Network Camera

Model

PDN59U225H-I

Image Sensor

1/2.8” STARVIS™ CMOS

Image Size

1920(H) x 1080(V), 2 Megapixels

RAM/ROM

1024M/128M

Electronic Shutter

1/1s~1/30,000s

Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6

S/N Ratio

> 55dB

Video Output

N/A

Day / Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR (120dB)

White Balance

Auto, ATW, Indoor, Outdoor, Manual

Gain Control

Auto / Manual

Digital Noise Reduction

Ultra DNR (2D/3D)

Privacy Masking

Up to 24 areas

Optical Zoom

25x

Digital Zoom

16x

Electronic Image Stabilization (EIS)

N/A

Defog

Support

Wide Dynamic Range

120dB

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
Detect	Observe	Recognize	Identify
1613m(5292ft)	646m(2119ft)	323m(1060ft)	161m(528ft)

Focal Length

4.5mm~135mm

Max. Aperture

F1.6 ~ F4.4

Focus Control

Auto / Manual

Angle of View

H: 60° ~ 2.2°

Close Focus Distance

100mm~ 1000mm

Laser Light Control

IR LEDs

IR Distance

Distance up to 150m (492ft)

IR On/Off Control

Auto/Manual

Angle of Laser Light

Pan Range

Pan: 0° ~ 360° endless; auto flip 180°

Pan Speed

Pan: 0.1° ~300° /s

Tilt Range

Tilt: -15° ~ 90°

Tilt Speed

Tilt: 0.1° ~200° /s

Number of Preset

300

PTZ Mode

5 Pattern, 8 Tour, Auto Pan ,Auto Scan

Speed Setup

Human-oriented focal Length/ speed adaptation

Power Up Action

Auto restore to previous PTZ and lens status after power failure

Idle Motion

Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

Time Task

Auto activation of Preset / Pan / Scan / Tour / Pattern by preset-time

Video Compression

H.265+/H.265/H.264+/H.264

Video Resolution

1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)

Video Frame Rate

Main stream: 41080P/1.3M/ 720P(1~50/60fps)
Sub stream1: D1/CIF(1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)

Video Bitrate

H.265/H.264: 448K ~ 8192Kbps

Auto Tracking

Tracking the specified target

IVS

Tripwire, Intrusion, Abandoned/Missing

Tracking Trigger Mode

N/A

Tracking Trigger Event

Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly

Audio Compression

G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2

Audio In

1CH

Audio Out

1CH

IPC Alarm

Yes

Alarm In

2CH

Alarm Out

1CH

Ethernet

RJ-45 (10XBase-T/100Base-TX)

Network Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP,
ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP,
DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

Network Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Network Max. Users

20 users

Storage

NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB

Storage Card

Micro SD card 256GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Mobile

iPhone, Android

Certifications

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1

RS485

N/A

Power Supply

AC 24V/1.5A(±10%), PoE+(802.3at)

Power Consumption

13W,23W(IR on)

Operating Temperature

-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Ingress Protection

IP66

Dimensions

Φ7.3(in)×12.1(in)

Weight

Net Weight 3.5kg(7.72lb) Gross Weight 6.8kg(14.99lb)
