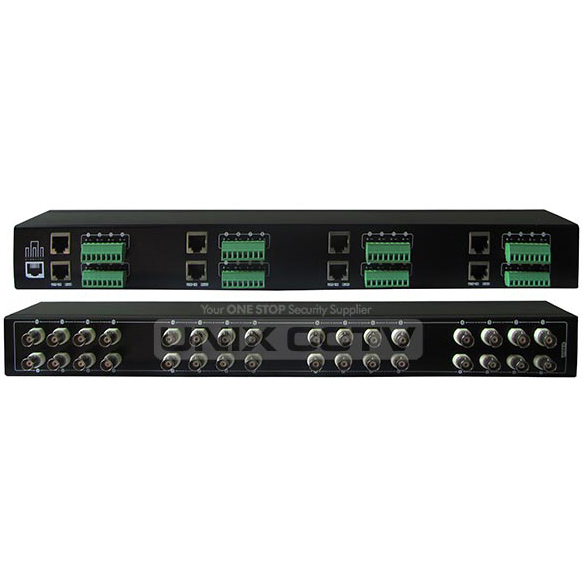

The OP-4632SR video balun hub is a passive(non-amplified) device that allows the transmission of real-time CCTV video signal via cost-effective Unshielded Twisted Paired(UTP) cable. Baseband(composite) signals of any type are supported.

The OP-4632SR supports screwless terminal block or RJ45 connections. Used in pairs, it is capable to transmit 32 channel live CCTV color video signal from camera end and receive 32 channel video signal at DVR end via 8 UTP cable at distance up to 1300ft(400m). OP-4632SR is compatible with all the other passive transceiver for application at distance up to 1300ft(400m) and active receiver up to 2200ft(700m).

The superial interference rejection and low emissions of the OP-4632SR allow video signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable plant. It has built-in surge suppression to protect video equipment against damaging voltage spikes and provide noise immunity to ensure quality signals without disturbing "hum-bars".

Application Diagram

• 32-Channel Passive Video Transceiver Hub
• Full-motion color video signal up to 1300ft(400m) and monochrome(B&W) up to 1950ft(600m) via UTP cat5e/6
• NTSC, PAL&SECAM video format compatible
• Real-time transmission
• No power required
• RJ45 and detachable terminal blocks for UTP cat5e/6
• Female BNC connector
• Exceptional interference rejection
• Built-in TVS(Transient Voltage Suppressors) for surge protection
• Lightning protection design Grade : III
• 50 dB corosstalk and noise immunity
• Compact size and easy installation
• Rack, wall mountable and desk installation with 4 rubber feet
• Black galvanized housing

APPLICATIONS

• Security Monitoring System
• Multimedia Network Teaching System
• Medical Monitoring Display System
• Industrial Automation Control System
• Banking, Securities, Financial Information Display System
• Remote Network Server Monitoring
• Department Store Security
• Casino Security
• Hospitals, Airports and Banks
• School Campuses
