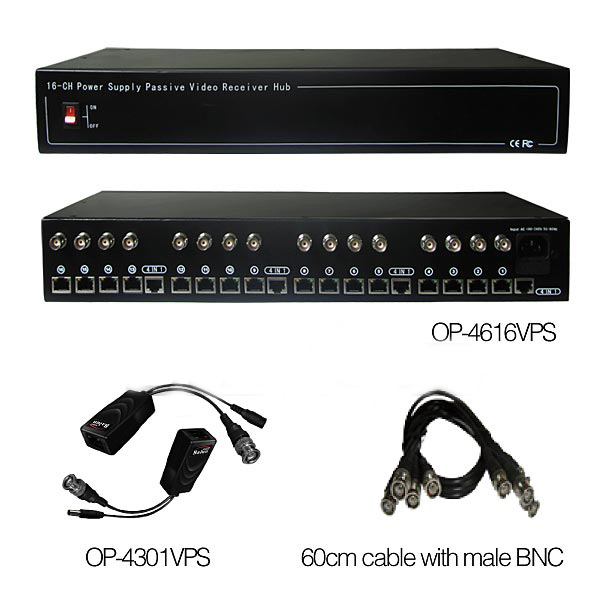

OP-4616VPS 16CH Power Supply Passive Video Receiver Hub, 16 Channel Video/Power Balun
- 16-Channel Video & Power Server (required to use with OP-4301VP male together)
- Transmit a color video signal up to 400m/1200ft, and a full motion monochrome (B&W) video signal up to 600m/1800ft via Unshielded Twisted Paired(UTP) wires
- Don't need extra power supply for camera
- Built-in 16.5A power supply
- Transmit 12VDC Power up to 225m/700ft
- Input Power 176--264 VAC / 90-130VAC, 50-60Hz
- BNC male and RJ45 Jack
- 16BNC to 4 Cat5e cable
- NTSC, PAL & SECAM video format compatible
- Real-time transmission
- Exceptional interference rejection
- Built in TVS(Transient Voltage Suppressors) for surge protection
- Lightning protection design Grade : III
- Wave filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995 Standard
- Metal housing, black
- 1.5U Rack Mount with Wall Mount Capability
| Application Diagram |
 |
| Distance betwen camera and OP-4616VPS : 250m 16CH cost 16*250m=4000m cat5/5e |
 |
| Distance between camera and OP-4616VPS : 100m, 16CH cost 16*100m=1600m, cat5/5e Distance between OP-4616VPS and OP-4616SR/DVR : 150m, after adopt 4 in 1 function, it takes only 4*150m=600m cat5/5e, so in total it cost only 1600m+600m=2200m cat5/5e cable |
 |
| Via this diagram, the color video reach actually at least 500m |
