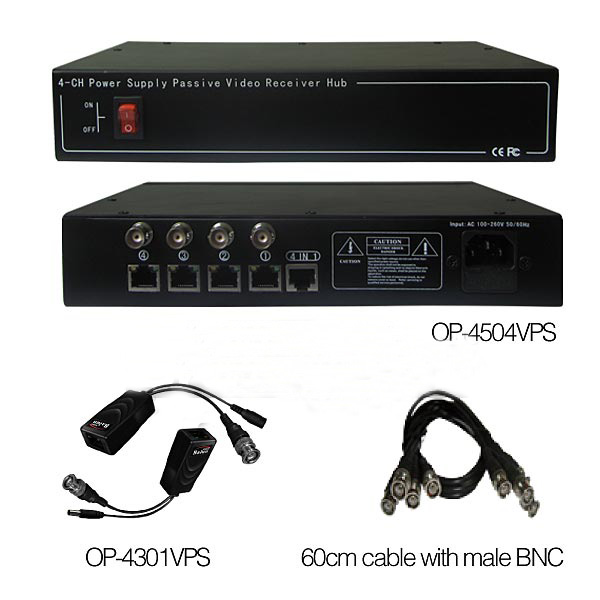

OP-4504VPS 4CH Power Supply Passive Video Receiver Hub Package / 12VDC output / 110VAC input. 4 Channel Power/Video Balun.
- 4-Channel Video & Power Server (required to use with OP-4301VP male together)
- Transmit a color video signal up to 400m/1200ft, and a full motion monochrome (B&W) video signal up to 600m/1800ft via Unshielded Twisted Paired(UTP) wires
- Don't need extra power supply for camera
- Built-in 5A power supply
- Transmit 12VDC Power up to 225m/700ft
- Input Power 176--264 VAC / 90-130VAC, 50-60Hz
- BNC male and RJ45 Jack
- 4BNC to 1 Cat5e cable
- NTSC, PAL & SECAM video format compatible
- Real-time transmission
- Exceptional interference rejection
- Built in TVS(Transient Voltage Suppressors) for surge protection
- Lightning protection design Grade : III
- Wave filter Design, Anti-Static Design, Confirm to IEC 61000-4-2:1995 Standard
- Metal housing, black
- Rack Mount With Wall Mount Capability
| Application Diagram |
 |
| Distance betwen camera and OP-4608VPS : 250m 8CH cost 8*250m=2000m cat5/5e |
 |
| Distance between camera and OP-4608VPS : 100m, 8CH cost 8*100m=800m, cat5/5e Distance between OP-4504SR/DVR : 150m, after adopt 4 in 1 function, it takes only 1*150m=150m cat5/5e, so in total it cost only 400m+150m=550m cat5/5e cable |
 |
| Via this diagram, the color video reach actually at least 500m |
