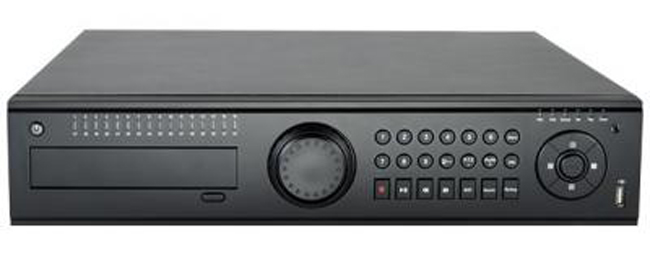

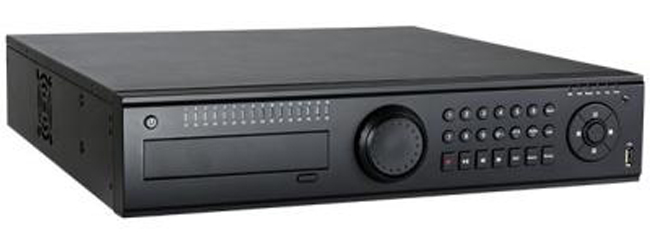

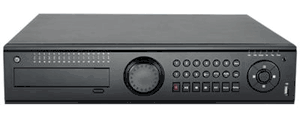

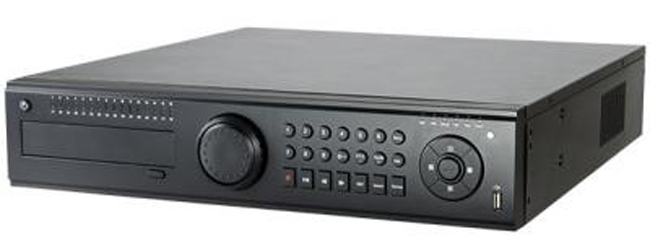

IP Power NVST-TX216-32 32 Channel Network Video Recorder(NVR) for IP cameras up to 3MP with 16 CH PoE Input





IP Power NVST-TX216-32 32 Channel Network Video Recorder(NVR) for IP cameras up to 3MP with 16 CH PoE Input

This series are standard 32 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. It supports 32 CH IP input, simultaneous 16 CH playback, and HDMI 1080P high resolution display, with standard 2U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- Support 32 CH 3 MP@30fps or 1080P@30fps or 960P@30fps or 720P@30fps IP input
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : support 16 CH playback
- Search : calendar / time, events ( sensor, motion )
- Express and flexible backup via USB, network or DVD-RW
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream & network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- HDMI 1080P output, true high resolution display
- Support PTZ preset & auto cruise, up to 128 presets & 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod. Compatible with 3G
Model | NVST-TX216-32 |
SYSTEM | |
Compression | Standard H.264 / MPEG4 |
CPU | Cortex A9 |
OS | Embedded Linux |
VIDEO | |
Output | VGA x 1:1080P HDMI x 1:1080P |
IP INPUT | |
Resolution | 3MP / 1080P / 960P / 720P |
Frame Rate | 32 CH 3MP / 1080P / 960P / 720P @30 fps |
AUDIO | |
Input | 32 CH IPC input |
Output | RCA x 1 |
2-way audio | RCA x 1 |
RECORD | |
Resolution | 3MP : 2048 x 1536, 1080P : 1920 x 1080 960P : 1280 x 960, 720P : 1280 x 720 D1 : 704 x 576 |
Frame Rate | 800 fps ( PAL ) 960 fps ( NTSC ) |
Bit Rate | 256Kbps ~ 12Mbps |
Encode | VBR / CBR |
Quality | 6 Level |
Mode | Manual, Timer, Motion, Sensor |
File Manager | Lock, unlock, reserving time |
PLAYBACK | |
Playback | 16 CH |
Search | Time/calendar search, event (motion,external alarm) |
Smart Search | Apply different colors to display whether a channel in a period of time recording or not |
Function | Play, Pause, FF, FB, Digital zoom |
ALARM | |
Mode | Sensor, Motion, Video Loss |
Input | 16 CH local input, support IPC alarm input |
Output | 4 CH |
Triggering | Record, alarm out, e-mail, etc |

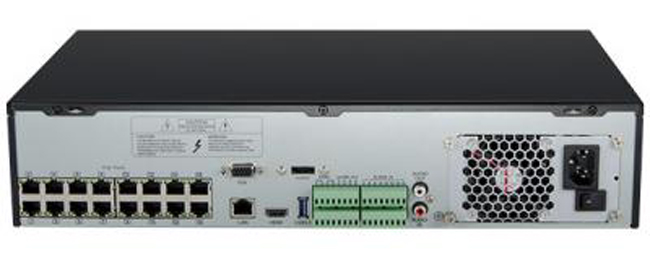

NETWORK | |
Common Interface | GMAC x 1 |
PoE Interface | RJ45 x 16 |
Protocal | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS,E-mail |
Others | 18 users online, dual stream |
CELLPHONE | |
OS | iPhone, Andriod |
Function | Multi-screen surveillance, record, snapshot, PTZ control, save the device list |
PORT | |
HDD | SATA x 8 |
RS485 | RS 485 x 1, support PTZ and keyboard |
USB | USB 3.0 x 1, USB 2.0 x 1, one for mouse, another for USB backup device |
Remote Controller | Yes |
OTHERS | |
Power Supply | ATX |
Dimensions | 430 mm x 450 mm x 89 mm (W x D x H) |
Work Environment | -10 ~ 55 °C =, 10% ~ 90% Humidity |
