Home IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Network Video Recorders 4-128 Channel IP Power NVST-TX204-04L 4 Channel Network Video Recorder(NVR) for IP cameras up to 3MP with 4 CH PoE Input

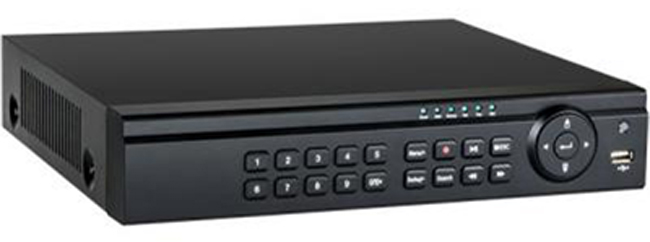

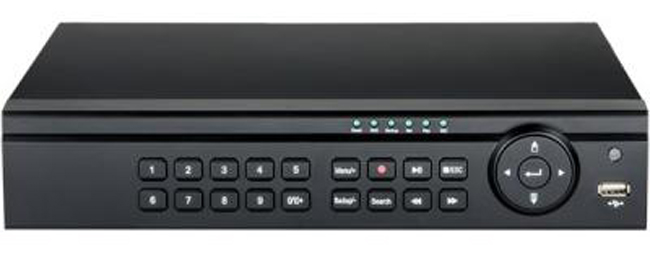

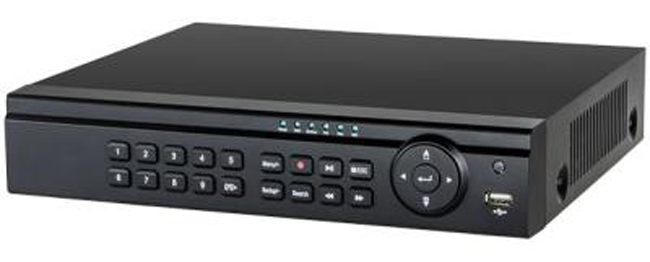

IP Power NVST-TX204-04L 4 Channel Network Video Recorder(NVR) for IP cameras up to 3MP with 4 CH PoE Input
NVST TX204-04L is standard 4 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution PoE NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. NVST TX204-04L integrates with 4 PoE network ports, support 4 CH IPC direct connection to NVR, support simultaneous 4 CH playback, and HDMI 1080P high resolution display, with standard 1U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- Support 4 CH 1080P 15fps or 4 CH 720P 30fps IP input
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface(GUI), Windows style, operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback: 4 CH simultaneous playback
- Search: time / calendar, events ( alarm, motion )
- Express and flexible backup via USB, network
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS: preview, playback, backup, PTZ and configuration
- 4 PoE network ports; support IPC direct connection to NVR; support PoE power supply
- Dual stream technology to encode recording stream and network stream respectively. User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
- Giga ethernet interface to get the fastest transmission
- Complete SDK software available, easy to integrate with other applications
Model | NVST-TX204-04L |
SYSTEM | |
Compression | Standard H.264 |
CPU | Cortex A9 |
OS | Embedded Linux |
VIDEO | |
Output | VGA x 1 : 1920 x 1080 HDMI x 1 : 1920 x 1080 BNC x 1 |
IP INPUT | |
1080p | 4 CH @ 15fps |
720p | 4 CH @ 30fps |
D1 | 4 CH @ 30fps |
AUDIO | |
Input | No |
Output | RCA x 1 |
2-way audio | RCA x 1 |
RECORD | |
Resolution | 1080P / 720P / D1 |
Frame Rate | 1 ~ 25fps / CH ( PAL ) , 1 ~ 30fps / CH ( NTSC ) |
Bit Rate | 256Kbps ~ 12Mbps |
Encode | CBR |
Quality | 6 Level |
Mode | Manual, Timer, Motion, Sensor |
File Manager | Lock, Unlock, Reserving Time |
PLAYBACK | |
Playback | 4 CH |
Search | Time / calendar search, event ( motion, external alarm ) |
Smart Search | Highlighted date and time to display the channel record |
Function | Play, Pause, FF, FB, Digital zoom |
ALARM | |
Mode | Sensor, Motion, Video Loss |
Input | 4 CH |
Output | 1 CH |
Triggering | Record, PTZ move, alarm out, e-mail, etc |
NETWORK | |
Interface | RJ45 10M/100M adaptive ethernet network port x 1 |
PoE | RJ45 x 4 |
Protocal | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS |
Others | 20 users online, dual stream |
CELLPHONE | |
OS | iPhone, Andriod |
Function | Multi-screen surveillance, record, snapshot, PTZ control, save the device list |
PORT | |
HDD | SATA x 1 |
RS485 | RS485 x 1, connect to PTZ or keyboard |
USB | USB2.0 2, one for mouse, another for USB backup device |
Remote Controller | Yes |
OTHERS | |
Power Supply | DC 12V/DC 48V |
Consumption | < 7W (without HDD) |
Dimensions | 300 mm x 270 mm x 58 mm (W x D x H) |
Work Environment | 0 ~ 50 °C , 10% ~ 90% Humidity |
