Home IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Network Video Recorders 4-128 Channel IP Power NVST-TS5408-08E TS Series 8 CH NVR for IP cameras up to 5MP w/ 8 CH PoE & 4K OUTPUT

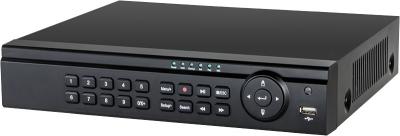

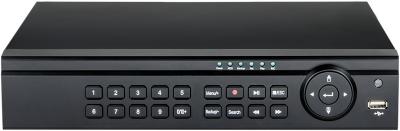

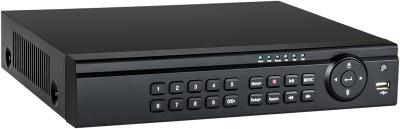

IP Power NVST-TS5408-08E TS Series 8 CH NVR for IP cameras up to 5MP w/ 8 CH PoE & 4K OUTPUT
IP Power NVST-TS5408-08E TS Series 8 CH NVR for IP cameras up to 5MP w/ 8 CH PoE & 4K OUTPUT
- Support 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input
- Adopt standard H.265 high profile compression format to get high-quality
- video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style
- operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 8 CH simultaneous playback
- Search : time slice, time, event ( manual, sensor, motion ), tag search
- Express and flexible backup via USB, network and so on
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and
- configuration
- 8 PoE network ports, support IPC direct connection to NVR; support
- PoE power supply
- Dual stream technology for local storage with high definition, remote
- network transmission and remote surveillance with mobile device
- Multi-user online simultaneously
- Authorization management, log view and device status view
- 4K output, true high resolution display
- Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
- Support NAT function and QRCode scanning by mobile phone and PAD
- Powerful smart phone & Pad surveillance with iOS and Andriod OS
Model | NVST-TS5408-08E | |
System | ||
Compression | Standard H.265 | |
OS | Embedded Linux | |
Video | ||
Network Input | 8 CH IPC input | |
Network Access Bandwidth | 50Mbps | |
Network Access Format | 5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps | |
Output | HDMI ื 1 : 4K ื 2K / 1920 ื 1080 / 1280 ื 1024 VGA ื 1 : 1920 ื 1080 / 1280 ื 1024 | |
Audio | ||
Network Input | 8 CH IPC audio input | |
2-way Audio | RCA ื 1 | |
Local Output | RCA ื 1 | |
Record | ||
Record Stream | Dual stream recording | |
Resolution | 5MP / 4MP / 3MP / 1080P / 960P / 720P | |
Mode | Manual, timer, motion, sensor | |
Playback | ||
Simultaneous Playback | Max 8 CH | |
Search | Time slice / time / event / tag search | |
Smart Search | Highlighted color to display the camera record in a certain period of time, different colors refers to different record events | |
Function | Play, pause, FF, FB, digital zoom, etc. | |
Alarm | ||
Mode | Manual, sensor, motion, exception | |
Input | Support IPC alarm input | |
Output | Support IPC alarm output | |
Triggering | Record, snap, preset, e-mail, etc. | |
Network | ||
Interface | RJ45 10 / 100 Mbps ื 1 | |
PoE Port | RJ45 ื 8 | |
Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | |
Web Client | Max 10 users online | |
Mobile Device | ||
OS | iOS, Andriod | |
Storage | ||
HDD | SATA ื 1, max 6T per HDD | |
Backup | ||
Local Backup | U disk, USB mobile HDD | |
Network Backup | Yes | |

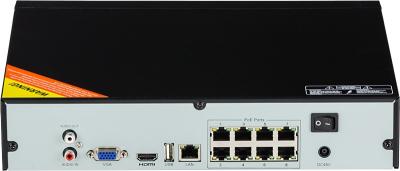

Port | ||
USB | USB 2.0 ื 2 ( one in the front panel and the other in the rear panel ) | |
Remote Controller | Included | |
Others | ||
Power Supply | DC48V | |
Consumption | ≤5W ( without HDD ) | |
Dimensions (mm) | 300 ื 248 ื 52 ( W ื D ื H ) | |
Work Environment | -10 ~ 50°C, 10% ~ 90% humidity |
