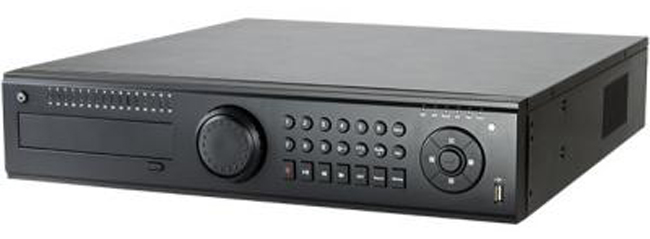

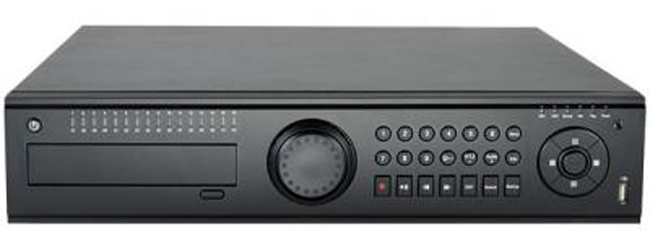

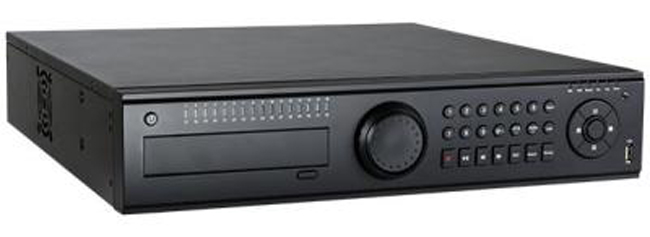

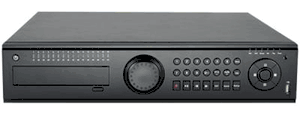

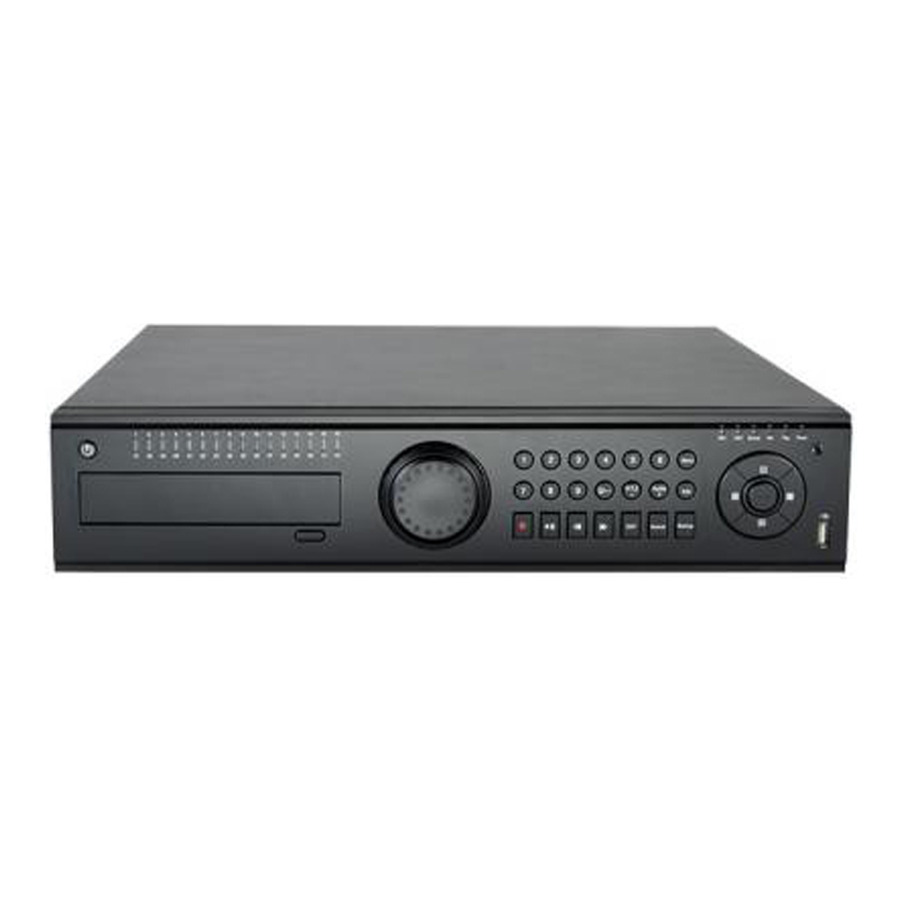

IP Power NVST-TN280-32D 32 Channel NVR for IP cameras up to 3MP with 8 HDD Slots
This series are standard 32 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. It support 32 CH IP input, simultaneous 4 CH playback, and HDMI 1080P high resolution display, with standard 2U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- Support 32 CH 3MP@30fps or 1080P@30fps or 960P@30fps or 720P@30fps IP input
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : support 4 CH playback
- Search : calendar / time, events ( alarm, motion )
- Express and flexible backup via USB, network or DVD-RW ( SATA )
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
Model | NVST-TN280-32D |
SYSTEM | |
Compression | Standard H.264 / MPEG4 |
CPU | Cortex A9 |
OS | Embedded Linux |
VIDEO | |
Output | VGA x 1 : 1920 x 1080 HDMI x 1 : 1920 x 1080 |
IP INPUT | |
Resolution | 3MP / 1080P / 960P / 720P |
Frame Rate | 32 CH 3MP / 1080P / 960P / 720P @30 fps |
AUDIO | |
Input | 32 CH IPC input |
Output | RCA x 1 |
2-way audio | RCA x 1 |
RECORD | |
Resolution | 3MP : 2048 x 1536 1080P : 1920 x 1080 960P : 1280 x 960 720P : 1280 x 720 D1 : 704 x 576 |
Frame Rate | 800 fps ( PAL ), 960 fps ( NTSC ) |
Bit Rate | 256Kbps ~ 12Mbps |
Encode | CBR |
Quality | 6 Level |
Mode | Manual, Timer, Motion, Sensor |
File Manager | Lock, unlock, reserving time |
PLAYBACK | |
Playback | 4 CH |
Search | Time/calendar search, event (motion,external alarm) |
Smart Search | Highlighted date and time to display the channel record |
Function | Play, Pause, FF, FB, Digital zoom |
ALARM | |
Mode | Sensor, Motion, Video Loss |
Input | 16 CH local input, support IPC alarm input |
Output | 4 CH |
Triggering | Record, PTZ move, alarm out, e-mail, etc |
NETWORK | |
Interface | RJ45 10M/100M/1000M adaptive ethernet network port x 1 |
Protocal | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS |
Others | 20 users online, dual stream |
CELLPHONE | |
OS | iPhone, Andriod |
Function | Multi-screen surveillance, record, snapshot, PTZ control, save the device list |

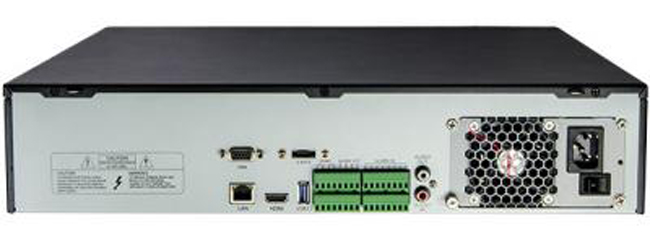

PORT | |
HDD | SATA x 8 |
RS485 | RS 485 x 2, support PTZ and keyboard |
USB | USB 3.0 x 1, USB 2.0 x 1, one for mouse, another for USB backup device |
Remote Controller | Yes |
OTHERS | |
Power Supply | ATX |
Consumption | < 15W (without HDD) |
Dimensions | 430 mm x 450 mm x 89 mm (W x D x H) |
Work Environment | -10 ~ 55 °C =, 10% ~ 90% Humidity |
