Home IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Network Video Recorders 4-128 Channel IP Power NVST-TN220-32E 32 Channel NVR for IP cameras up to 3MP

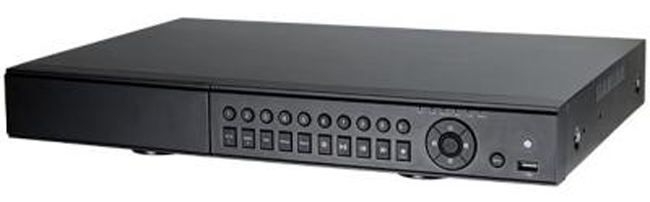

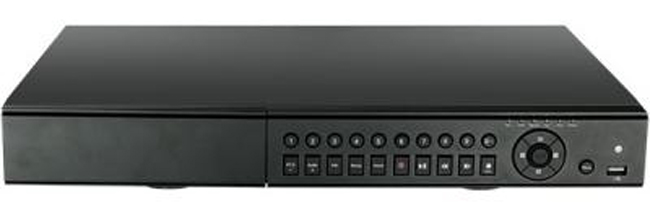

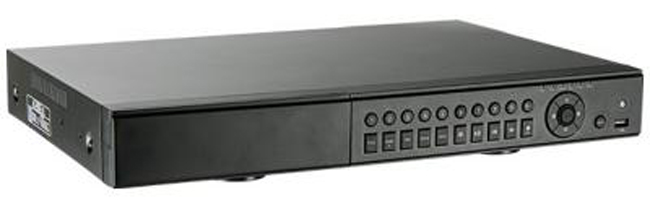

IP Power NVST-TN220-32E 32 Channel NVR for IP cameras up to 3MP
NVST TN220-32E is standard 32 CH real time 3MP / 1080P / 960P / 720P / D1 high resolution NVRs, which adopt the most advanced SOC technique to ensure high definition recording in each channel and realize outstanding robustness of the system. NVST TN220-32E support 32 CH IP input, simultaneous 4 CH playback, and HDMI 1080P high resolution display, with standard 1U chassis. The series of product can meet different security requirements of home, financial, commerce, enterprise, transportation and government, etc.
- Support 32 Ch 3MP @30fps or 1080P @30fps or 960P @30fps or 720P @30fps IP input
- Adopt standard H.264 high profile compression format to get high-quality video at much lower bit rate
- Intuitive and user-friendly Graphic User Interface(GUI), Windows style, operation by mouse
- Multi-mode recording: manual / timer / motion / sensor
- Playback : 4 CH simultaneous playback
- Search : calendar / time, events ( alarm, motion )
- Express and flexible backup via USB, network or DVD-RW ( SATA )
- Pentaplex : preview, record, playback, backup and remote access
- DHCP, DDNS, PPPoE Network protocol, IE browse and CMS supported
- Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
- Dual streaming technology to encode recording stream and network stream separately . User can adjust network stream to fit bandwidth without changing recording quality
- Multi-user online simultaneously
- Authorization management, log review and device status review
- HDMI 1080P output, true high resolution display
- Support PTZ preset and auto cruise, up to 128 presets and 8 cruises
- Powerful smart phone surveillance supporting iPhone, Andriod
Model | NVST-TN220-32E |
SYSTEM | |
Compression | Standard H.264 / MPEG4 |
CPU | Cortex A9 |
OS | Embedded Linux |
VIDEO | |
Output | VGA x 1 : 1920 x 1080 HDMI x 1 : 1920 x 1080 |
Resolution | 3MP / 1080P / 960P / 720P |
Frame Rate | 32 CH 3MP / 1080P / 960P / 720P @30 fps |
AUDIO | |
Input | 8 CH IPC input |
Output | RCA x 1 |
2-way audio | RCA x 1 |
RECORD | |
Resolution | 3MP : 2048 x 1536 1080P : 1920 x 1080 960P : 1280 x 960 720P : 1280 x 720 D1 : 704 x 576 |
Frame Rate | 800 fps ( PAL ) 960 fps ( NTSC ) |
Bit Rate | 256Kbps ~ 12Mbps |
Encode | CBR |
Quality | 6 Level |
Mode | Manual, Timer, Motion, Sensor |
File Manager | Lock, Unlock, Reserving Time |
PLAYBACK | |
Playback | 4 CH |
Search | Time/calendar search, event(motion) |
Smart Search | Highlighted date and time to display the channel record |
Function | Play, Pause, FF, FB, Digital zoom |
ALARM | |
Mode | Sensor, Motion, Video Loss |
Input | 4 CH local input, support IPC alarm input |
Output | 1 CH |
Triggering | Record, PTZ move, alarm out, e-mail, etc |
NETWORK | |
Interface | RJ45 10M/100M/1000M adaptive ethernet network port x 1 |
Protocal | TCP / IP, UDP, DHCP, DNS, PPPOE, DDNS |
Others | 20 users online, dual stream |
CELLPHONE | |
OS | iPhone, Andriod |
Function | Multi-screen surveillance, record, snapshot, PTZ control, save the device list |

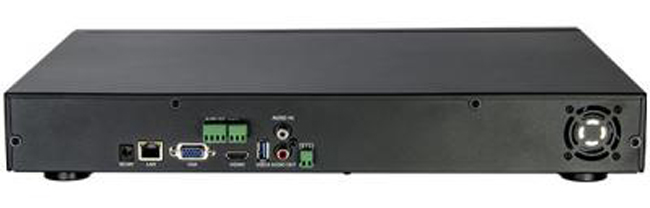

PORT | |
HDD | SATA x 2 |
RS485 | RS485 x 1, connect to PTZ or keyboard |
USB | USB 3.0 x 1, USB 2.0 x 1, one for mouse, another for USB backup device |
Remote Controller | Yes |
OTHERS | |
Power Supply | DC 12V |
Consumption | < 10W (without HDD) |
Dimensions | 400 mm x 300 mm x 55 mm (W x D x H) |
Work Environment | -10 ~ 55 °C =, 10% ~ 90% Humidity |
