Truon NVST-SR632H 32 CH Hybrid Network Video Recorder (NVR) for IP Cameras & Analog

Additional View

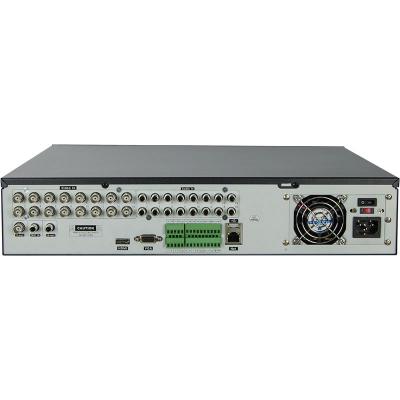

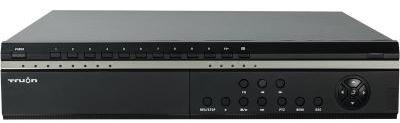

Truon NVST-SR632H 32 CH Hybrid Network Video Recorder (NVR) for IP Cameras & Analog

NVR mode : Max 32CH D1 / 22CH 720p / 16CH 1080p
Hybrid mode : Max 16CH Analog + 16CH D1 / 8CH 720p / 4CH 1080p
Up to 5 Megapixel resolution
HDMI / VGA / BNC simultaneous video output
16 channel synchronous realtime playback
ONVIF Version 2.0/2.1/2.2
Support 8 SATA HDDs up to 3TB
Multiple network monitoring: Web viewer, CMS & Mobile

Model	NVST-SR632H
System
Operating System	Embedded LINUX
Video & Audio
IP Camera Input (NVR mode )	32 channel Max 16CH@1080P or 22CH@720P or 32CH@D1
IP Camera Input (Hybrid mode)	16 channel Max 4CH@1080P or 8CH@720P or 8CH@D1
Analog Camera Input	16 channel, BNC(1.0Vp-p,75ohms),PAL/NTSC Optional
Two-way Talk	1 channel Input, 1 channel Output, BNC
Display
Interface	1 HDMI, 1 VGA, 1 BNC
Resolution	800?600;1024?768;1280?1024;1440?900;1920?1080
Display Split	1/4/9/16/25/32
OSD	Camera title, Time, Video loss, Camera lock, Motion detection, Recording
IP Camera Recording
Compression	H.264 (High Profile@Level4.2) / MPEG-4
Resolution	5MP(2560?1920) / 3MP(2048?1536) / 1080P(1920?1080) / 720P(1280?720) / D1 (704?576/704?480)
Record Rate	32 Kbps-16384 Kbps, or user defined (Max. 16384 Kbps)
Dual Stream	support(sub-stream ? 4CIF)
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Analog Camera Recording
Compression	H.264
Resolution	960H(960?576/960?480)/D1(704?576/704?480)/CIF(352?288/352?240)
Record Rate	48Kbps~2048Kbps / 48Kbps~3072Kbps(960H)
Frame Rate	25fps (PAL) / 30fps (NTSC)
Dual Stream	support
Record Mode	Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Record Interval	1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events	Recording, Alarm, Video Push, Email, Buzzer
Video Detection	Motion Detection,Video Loss,HDD Loss
Alarm Input	16 channel
Relay Output	3 channel
Playback & Backup
Sync Playback	1/4/9/16
Search Mode	Time/Date, Alarm, MD & Exact search (accurate to second)
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode	USB Device / Network
Network
Ethernet	RJ-45 port (10/100M)
Network Functions	HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS
Max.User Access	20 users
Mobile Phone	IPhone, IPad, Android
Storage
Internal HDD	8 SATA ports, up to 3TB
Auxiliary Interface
USB Interface	3 ports (1 Rear), USB2.0
RS232	Yes
RS485	1 port, For PTZ control
General
Power Supply	DC12V/2A
Power Consumption	20W(without HDD)
Working Environment	-10 ~+55?C / 10~90%RH / 86~106kpa
Dimension(W?D?H)	1.5U,375?378?65 (mm)
