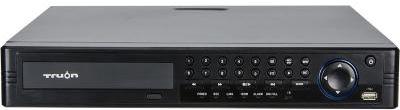

Truon NVST-SR516 16 CH Network Video Recorder (NVR) for IP Cameras
Truon NVST-SR516 16 CH Network Video Recorder (NVR) for IP Cameras
- Up to 16CH with 1080p / 16CH with 720p / 16CH D1 realtime live view
- H.264/MPEG-4 dual codec decoding
- Up to 5MP resolution
- HDMI / VGA / BNC simultaneous video output
- 8 channel synchronous realtime playback with 720p, 1ch playback in 1080p
- ONVIF Version 2.0/2.1/2.2 conformance
- Support 2 SATA HDDs up to 3TB
- Multiple network monitoring: Web viewer, CMS & Mobile
Model | NVST-SR516 |
System | |
Operating System | Embedded LINUX |
Video & Audio | |
IP Camera Input | 16 channel |
Two-way Talk | 1 channel Input, 1 channel Output, BNC |
Display | |
Interface | 1 HDMI, 1 VGA, 1 BNC |
Resolution | 800?600;1024?768;1280?1024;1440?900;1920?1080 |
Display Split | 1/4/9/16 |
OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
Compression | H.264 (High Profile@Level4.2) / MPEG-4 |
Resolution | 5MP(2560?1920) / 3MP(2048?1536) / 1080P(1920?1080) / 720P(1280?720) / D1 (704?576/704?480) |
Record Rate | Max 16CH@1080P or 16CH@720P or 16CH@D1 |
Record Mode | Manual, Schedule(Regular(Continuous), MD, Alarm), Stop |
Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
Video Detection & Alarm | |
Trigger Events | Recording, Alarm, Video Push, Email, Buzzer |
Video Detection | Motion Detection,Video Loss,HDD Loss |
Alarm Input | 8 channel |
Relay Output | 3 channel |
Playback & Backup | |
Sync Playback | 1/4/8 |
Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) |
Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom |
Backup Mode | USB Device / Network |
Network | |
Ethernet | RJ-45 port (10/100M/1000M) |
Network Functions | HTTP, IPv4/IPv6, TCP/IP, UPNP, DHCP, DNS, PPPOE, DDNS |
Max.User Access | 20 users |
Mobile Phone | IPhone, IPad, Android |
Storage | |
Internal HDD | 2 SATA ports, up to 3TB |
Auxiliary Interface | |
USB Interface | 3 ports (1 Rear), USB2.0 |
RS232 | Yes |
RS485 | 1 port, For PTZ control |
General | |
Power Supply | NVR:DC12V/4A, POE Port::DC48V/1A |
Power Consumption | 20W(without HDD) |
Working Environment | -10 ~+55?C / 10~90%RH / 86~106kpa |
Dimension(W?D?H) | 1U,375?378?65(mm) |
