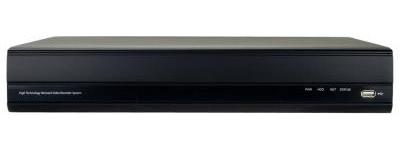

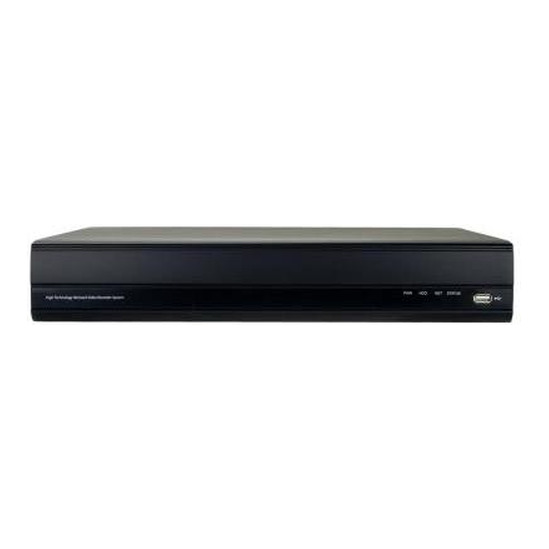

Telpix NVST-PHD4004P 4CH Stand-Alone Network Video Recordingorder NVR
Telpix NVST-PHD4004P 4CH Standalone Network Video Recordingorder NVR
- Easy plug-and-play DVR-like design
- Convenient auto IP scan and channel allocation
- Up to 1,080p at 240/200fps recording
- IP camera function set up (WDR, TDN, auto zoom, and etc.)
- Supports powerful CMS, EMS 2.0 S/W integrating with DVR and IP camera
- Fully supports remote surveillance with DVR and IP camera
- Mac PC Compatible
- ONVIF
| Model | NVST-PHD4004P | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SYSTEM | |
Video System |
NTSC |
IP Camera |
4ch PoE |
Video Output |
VGA/HDMI (upto 1920x1080) |
Audio Input / Output |
IN : 4/8ch (from IP CAM) + 1ch (SET for Two wayaudio) OUT : 1ch (SET) |
Audio InputLevel |
0.5~1.4 Vp-p @ 20K Ohm |
Sensor Input/ Output |
4 input / 1 relay output |
ExternalPort |
RS-232 / RS485 |
USB Port |
2 Ports (Front / Rear) |
Control |
IR Remote Control, Mouse, Client S/W |
RECORDING |
|
CODEC |
H.264 |
Throughput(BitRate) |
Max. 40 Mbps |
MaximumRate & Resolution |
Max. 200 / 240 fps @ 1080P |
Record Mode |
Manual, Schedule, Event (motion/sensor) |
Quality |
Super, High, Middle, Low (4levels) |
Pre/PostRecording |
~5sec / ~300sec |
MotionDetection |
8 ? 8 Grids / 20 Senssitivity Levels |
PLAYBACK |
|
Search Mode |
Calendar, Time, Event, Thumb-nail, Instant Playback |
Playback Speed |
1? ~ 16? FF/REW, STEP |
STORAGE |
|
HDD Support |
2 internal SATA HDDs (Up to 6TB) |
ExternalStorage |
e-SATA (1 port) / USB (2 port) |
Backupdevice |
USB-DVD?RW / USB flash drive / Network |
OSD |
|
DisplayDivision |
1, 4, 6, 7, 8, 9 |
Title |
Multi languages / 12 characters |
Digital Zoom |
2?, 4?, 8? |
NETWORK |
|
CODEC |
H.264 / JPEG |
Accounts |
1 Admin + 10 Users |
ClientSoftware |
EMS 2.0 / IE (active-X) / Mac PC / Mobile Phone |
RemoteNotification |
Email message, PUSH Service(Smart Phone) |
Service |
TCP/IP, SMTP, DHCP, DDNS, UPnP |
OTHER |
|
FirmwareUpdate |
USB Flash Drive / Network |
DaylightSaving |
YES |
PowerRecovery |
Auto Recovery |
Log |
Event log / System log |
Watchdog |
Software / Hardware watchdog |
Dimension |
38 ? 34 ? 7 (CM) / 15 ? 13 ? 2.7 (Inch) |
Power Source |
12V 5A Adapter |
| 48V 1A Adapter(POE) | |
OperationEnvironment |
30 ~ 80% RH, 5?C ~ 40?C (41?F ~ 104?F) |
