Surveillance Mega-Store Ultimate Destination for All CCTV Needs

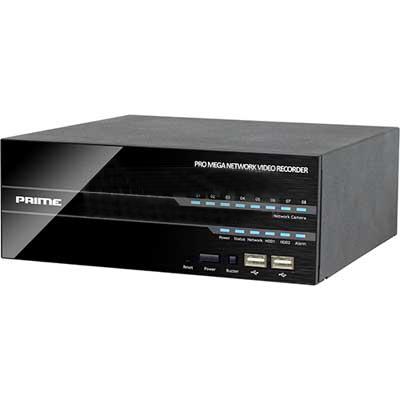

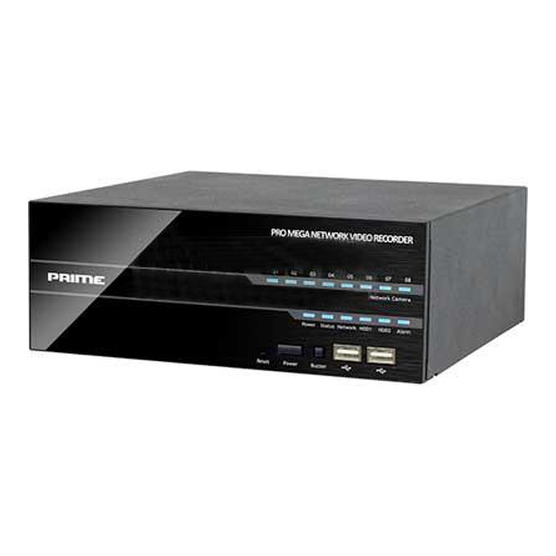

The PRO Mega Network Video Recorder is designed for use within a surveillance system, and performs recordings and playbacks pictures from network cameras in the system. It is designed for small scale applications such as retail store and the system is expandable for multi-sites management with the bundled CMS software. Up to 16 cameras can be connected via a network and it is possible to record their camera pictures. It is possible to perform the settings or operate the NVR using a web browser installed on a PC connected to a network and live videos can be viewed on major mobile devices through its web browser. Recorded video can be played back from remote site by a PC. Up to 4 PCs (web browsers) can access this unit concurrently and it is possible to perform the settings and operate this unit. The PRO Mega Network Video Recorder is compatible with most major brand cameras and its ability to automatically search and find the available cameras on the network can greatly reduce the user effort when expanding the system.
Cameras
- Support Axis / Sony / Panasonic / AVTech / ACTi / D-Link / Canon / AMTK / Vivotek / Zavio / Prime Pro Mega and more (20+ Major Brand)
- Add Camera: Manual / Smart IP Search
- Max. Channel: 16
Video
- Compression: MJPEG/MPEG-4 Part 2/H.264
- Resolution: HD/MegaPixel/FD1/CIF/QCIF, or depends on camera
Audio
- Streaming: Two-way audio
Live View
- Display Mode: Live View/Playback/Full Screen
- Split Screen: 1/4/8/16
- Full Screen: up to 1 video
- PTZ Support: Virtual PTZ Panel/Auto Pan/Preset Point/Preset Sequence
- Sequence Mode: Sequence All/Manually Selected Cameras in 1/4/8/16 split view with configurable time interval
- Snapshot: Video Snapshot in JPEG format
Playback
- Split Screen: 1/4/8/16
- Search Method: Time/Date, Event with thumbnails
- Playback Controls: Play/Pause/Stop/Forward/Reverse/Speed Adjustable Forward and Rewind/Frame by Frame Forward
- AVI Export: Export recorded files to AVI format
Network
- Protocols: HTTP/SMTP/DHCP server and client/ARP/NTP/DNS/UPnP/FTP
- Streaming Protocols: Depends on the supported cameras
Recording
- Capacity: 3TB Max. (1.5TB × 2)
- Recording Mode: Manual/Continuous/Scheduling/Event
- Schedule Types: Manual Select/Day Mode/Night Mode/Weekend Mode
User Management
- Management: User/Group
- Number of Groups: 7 (administrator/Guest/User define x 5)
- Privileges: Live View/Playback/System Configurations/Camera Configurations/Recording Configuration/Event Configuration/Maintenance
Triggers & Events
- System Event -- System Start/Shutdown, System Settings Modified, Camera Settings Modified, Start Recycle, Disk Full
- Camera Events -- Motion/Sensor Detection
- Event Actions: HTTP/Mail/FTP/Buzzer/Record
- Event Recording: Pre/Post Event Recordings
SPECIFICATIONS
NVST-MP16 | |
CPU and Memory | ARM9 500Mhz/128MB DDR RAM |
Ethernet | 10BaseT / 100BaseT/1GBaseT and half duplex/full duplex auto-negotiation |
HDD | SATA HDD Slot x 2, Max. Capacity 1.5TB per disk |
LED | Cameras/Power/System/Network/HD/Alarm |
Buttons | Reset/Power/Buzzer |
Connectors | USB x 2 / RS-485 / DI/DO Connectors / RS-232 |
Power | 19V DC / Power consumption: 90W |
Dimensions | 220 (L) × 215 (W) × 81(H) mm (8.6" × 8.5" × 3.2") |
Weight | 10 lbs (HDD not included) |
Operating Temp. | 5°C ~ 45 °C (41 °F ~ 113 °F) |
Storage Temp. | -40 °C ~ 70 °C (-14 °F ~ 158 °F) |
Humidity | 5% ~ 90% (non condensing) |
Safety | FCC Class A/CE/UL |
NVST-MP04/08/16 / IVS Central Basic Supported Camera List (as of 10/01/10) | |||||||
Manufacturer | Model | Compression Type Suppported | Firmware | Unit Type | PTZ | Audio Supported | I/O Supported |
Axis | All dual-stream and H.264 capable cameras | MJPEG/MPEG4/H.264 | v4.30 or above | All | V | two-way | V |
Panasonic (Communication) |
BL-C1 | MJPEG | (firmware 1.29 or later) | Fixed | -- | two-way | V |
BL-C10 | MJPEG | (firmware 1.24 or later) | Fixed | -- | two-way | V | |
BL-C20 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BL-C30 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BL-C111 | MJPEG/MPEG4 | (firmware 3.10 or later) | Fixed | -- | two-way | V | |
BL-C131 | MJPEG/MPEG4 | (firmware 3.10 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCS301 | MJPEG | (firmware 1.30 or later) | PTZ Wireless (Digital Zoom) | V | two-way | V | |
BB-HCM100 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM110 | MJPEG | (firmware 1.30R01 or later) | Fixed | -- | two-way | V | |
BB-HCM311 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BB-HCM331 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM371 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM-381 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
KX-HCM110 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
KX-HCM280A | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM403 | MJPEG | (firmware 1.33 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCE481 | MJPEG | (firmware 1.29) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM511 | MJPEG/MPEG4 | (firmware 3.12 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM527 | MJPEG/MPEG4 | (firmware 3.51R00 or later) | PTZ | V | two-way | V | |
BB-HCM531 | MJPEG/MPEG4 | (firmware 3.12 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM547 | MJPEG/MPEG4 | (firmware 3.51R00 or later) | PTZ | V | two-way | V | |
BB-HCM515 | MJPEG/MPEG4 | (firmware 3.11 or later) | PTZ MegaPixel | V | two-way | V | |
BB-HCM580 | MJPEG/MPEG4 | (firmware 3.13 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM581 | MJPEG/MPEG4 | (firmware 3.13 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM715 | MJPEG/MPEG4/H.264 | (firmware 4.10R00 or later) | PT | V | two-way | V | |
BB-HCM715 | MJPEG/MPEG4/H.264 | (firmware 4.10R00 or later) | PT | V | two-way | V | |
Panasonic (Business) |
WV-NP1004 | MJPEG | v1.21 | MegaPixel Box | -- | one-way | v |
WV-NP244 | MJPEG/MPEG4 | Fixed Box | -- | one-way | v | ||
WV-NS202 | MJPEG | v1.30 | PTZ | V | one-way | v | |
WV-NF284 | MJPEG/MPEG4 | v1.11 | Fixed Dome | -- | one-way | v | |
WJ-NT304 | MJPEG | v1.10 | 4 Ch. Encoder | V | one-way | v | |
WV-NW484S | MJPEG/MPEG4 | v1.03 | Vandal Dome (Surface Mount) | V | one-way | v | |
WV-NS202A | MJPEG/MPEG4 | v1.10 | PTZ | V | one-way | v | |
WV-NS954 | MJPEG/MPEG4 | v2.20 | PTZ | V | one-way | v | |
WV-NW964 | MJPEG/MPEG4 | v1.10 | Outdoor PTZ | V | one-way | v | |
WJ-NT314 | MJPEG | N/A | 4 Ch. Encoder | V | one-way | v | |
WV-NF302 | MJPEG/MPEG4 | v1.10 | Ruggedized MegaPixel Fixed Dome | -- | one-way | v | |
WV-NP304 | MJPEG/MPEG4 | v1.10 | MegaPixel Box | -- | one-way | v | |
Sony | SNC-CS10 | MJPEG/MPEG4 | v1.06 | Fixed | -- | two-way | x |
SNC-CS11 | MJPEG/MPEG4 | v1.06 | Fixed | -- | two-way | x | |
SNC-CS20 | MJPEG/MPEG4 | v1.02 | Fixed | -- | two-way | x | |
SNC-CS50 | MJPEG/MPEG4/H.264 | v2.23 | Fixed SuperExwave DEPA | -- | two-way | v | |
SNC-DF40 | MJPEG/MPEG4 | v1.18 | Minidome | V | two-way | x | |
SNC-DF50 | MJPEG/MPEG4/H.264 | v1.14 | DynaView Minidome DEPA | V | two-way | v | |
SNC-DF70 | MJPEG/MPEG4 | v1.18 | Ruggedized Minidome | V | two-way | v | |
SNC-DF80 | MJPEG/MPEG4/H.264 | v1.14 | Ruggedized SuperExwave Minidome DEPA | V | two-way | v | |
SNC-DS10 | MJPEG/MPEG4 | v1.02 | Minidome DEPA | V | two-way | v | |
SNC-DS60 | MJPEG/MPEG4 | v1.02 | Ruggedized Minidome DEPA | V | two-way | v | |
SNC-P1 | MJPEG/MPEG4 | v1.29 | Fixed | -- | two-way | x | |
SNC-P5 | MJPEG/MPEG4 | v1.29 | PTZ | V | two-way | x | |
SNC-RZ25 | MJPEG/MPEG4 | v1.30 | PTZ Exwave | V | two-way | x | |
SNC-RZ50 | MJPEG/MPEG4/H.264 | v1.13 | PTZ DEPA | V | two-way | v | |
SNC-RX530 | MJPEG/MPEG4/H.264 | v3.02/v2.32 | PTZ Exwave DEPA | V | two-way | v | |
SNC-RX550 | MJPEG/MPEG4/H.264 | v3.02/v2.32 | PTZ Exwave DEPA | V | two-way | v | |
SNC-RX570 | MJPEG/MPEG4/H.264 | v3.02/v2.23 | PTZ Exwave DEPA Dynaview | V | two-way | v | |
SNC-CM120 | MJPEG/MPEG4 | v1.03 | Megapixel fixed camera | -- | two-way | v | |
SNC-CS20 | MJPEG/MPEG4 | v1.03 | Fixed camera | -- | two-way | v | |
SNC-DM110 | MJPEG/MPEG4 | v1.03 | Megapixel normal minidome camera | V | two-way | v | |
SNC-DM160 | MJPEG/MPEG4 | v1.03 | Megapixel ruggedized minidome camera | V | two-way | v | |
SNC-DS10 | MJPEG/MPEG4 | v1.03 | Normal minidome camera | V | two-way | v | |
SNC-DS60 | MJPEG/MPEG4 | v1.03 | Ruggedized minidome camera | V | two-way | v | |
SNC-RH124 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RH164 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS46 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS44 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS86 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS84 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNT-EX101 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EX104 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EX154 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EP104 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EP154 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNC-CH140 | MJPEG/MPEG4/H264 | 1.10.03 | PoE 720P Boxed | -- | two-way | v | |
SNC-CH180 | MJPEG/MPEG4/H264 | 1.10.03 | PoE 720P Bullet | -- | two-way | v | |
SNC-CH240 | MJPEG/MPEG4/H264 | 1.11 | PoE HD Boxed | -- | two-way | v | |
SNC-DH140 | MJPEG/MPEG4/H264 | 1.10.03 | 720P MiniDome | V | two-way | v | |
SNC-DH140T | MJPEG/MPEG4/H264 | 1.10.03 | 720P MiniDome Vandal Resistance | V | two-way | v | |
SNC-DH180 | MJPEG/MPEG4/H264 | 1.11 | 720P MiniDome Vandal Resistance with IR | V | two-way | v | |
SNC-DH240 | MJPEG/MPEG4/H264 | 1.10.03 | HD MiniDome | V | two-way | v | |
SNC-DH240T | MJPEG/MPEG4/H264 | 1.10.03 | HD MiniDome Vandal Resistance | V | two-way | v | |
SNC-DF85 | MJPEG/MPEG4/H264 | 1.2 | Dual Stream MiniDome D/N and PoE | V | two-way | v | |
AVTech | AVI-201 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x |
AVI-202 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x | |
AVI-203 | MJPEG/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-211 | MJPEG/MPEG4/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-212 | MJPEG/MPEG4/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-222 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x | |
AVN-244 | MJPEG/MPEG4/H.264 | N/A | PTZ | v | two-way | x | |
AVN-252 | MJPEG/MPEG4/H.264 | N/A | Bullet | -- | two-way | x | |
AVN-263 | H.264 | N/A | Bullet | -- | two-way | x | |
AVN-284 | MJPEG/MPEG4/H.264 | N/A | PTZ | v | two-way | x | |
Canon | VB-C300 | MJPEG | V1.1 | PTZ | v | two-way | v |
VB-C60 | MJPEG/MPEG4 | V1.0.0 | PTZ | v | two-way | v | |
VB-C500D | MJPEG/MPEG4 | V1.0.0 | PTZ | v | two-way | v | |
ACTi | ACM1011 | MJPEG/MPEG4 | V3.11 | IP Bullet Camera | -- | two-way | v |
ACM1511 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM1231 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM1232 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM3011 | MJPEG/MPEG4 | V3.11 | IP Fixed Dome | -- | two-way | v | |
ACM3401 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM3411 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM3511 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM4000 | MJPEG/MPEG4 | V3.11 | IP Cube Camera | -- | two-way | v | |
ACM4001 | MJPEG/MPEG4 | V3.11 | IP Cube Camera | -- | two-way | v | |
ACM4200 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Cube IP Camera | -- | two-way | v | |
ACM4201 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Cube IP Camera | -- | two-way | v | |
ACM5601 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Box IP Camera | -- | two-way | v | |
ACM5611 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Box IP Camera | -- | two-way | v | |
ACM7411 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACD2100 | MJPEG/MPEG4 | V3.11 | 1 Ch. Video Server | v | two-way | v | |
ACD2200 | MJPEG/MPEG4 | V3.11 | 4 Ch. Video Server | v | two-way | v | |
ACD2300 | MJPEG/MPEG4 | V3.11 | 8 Ch. Video Server | v | two-way | v | |
ACD2400 | MJPEG/MPEG4 | V3.11 | 16 Ch. Video Server | v | two-way | v | |
TCM-5311 | MJPEG/MPEG4/H.264 | V3.11 | H.264 CCD MegaPixel IP Camera | -- | two-way | v | |
D-Link | DCS-2102 | MJPEG/MPEG4 | v1.03 | Fixed | -- | two-way | x |
DCS-2121 | MJPEG/MPEG4 | v1.03 | Fixed | -- | two-way | x | |
DCS-3410 | MJPEG/MPEG4 | v1.03 | Box | -- | two-way | x | |
DVS-N3010 | MJPEG/MPEG4 | v3.2.58 | Single-channel video server | -- | two-way | x | |
DVS-N3014 | MJPEG/MPEG4 | v3.2.58 | Single channel wireless video server | -- | two-way | x | |
DVS-N3040 | MJPEG/MPEG4 | v3.2.58 | Four-channel video server | -- | two-way | x | |
DVS-N3044 | MJPEG/MPEG4 | v3.2.58 | Four-channel video server | -- | two-way | x | |
DCS-N3530 | MJPEG/MPEG4 | v3.2.58 | Day/Night | -- | two-way | x | |
DCS-N3531 | MJPEG/MPEG4 | v3.2.58 | Day/Night | -- | two-way | x | |
DCS-N3534 | MJPEG/MPEG4 | v3.2.58 | Wireless | -- | two-way | x | |
DCS-N5440 | MJPEG/MPEG4 | v3.2.58 | PT | -- | two-way | x | |
DCS-N5442 | MJPEG/MPEG4 | v3.2.58 | PT/IR | -- | two-way | x | |
DCS-N5444 | MJPEG/MPEG4 | v3.2.58 | PT/IR/Wireless | -- | two-way | x | |
DCS-N6240 | MJPEG/MPEG4 | v3.2.58 | PTZ | -- | two-way | x | |
DCS-N6241 | MJPEG/MPEG4 | v3.2.58 | PTZ PoE | -- | two-way | x | |
DCS-N6244 | MJPEG/MPEG4 | v3.2.58 | Wireless PTZ PoE | -- | two-way | x | |
DCS-N2100 | MJPEG/MPEG4 | v3.2.58 | 3GPP | -- | two-way | x | |
DCS-N2104 | MJPEG/MPEG4 | v3.2.58 | 3GPP Wireless | -- | two-way | x | |
Zavio | F210A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v |
F312A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F611E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F510E/W | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F511E/W | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F520E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F610A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
D611E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
D510E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
M511E/W | MJPEG/MPEG4 | LM.1.6.16.03 | PT IP Camera | v | one-way | v | |
M510W/W | MJPEG/MPEG4 | LM.1.6.16.03 | PT IP Camera | v | one-way | v | |
D520E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
F731E | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
F721A | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
F521E | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
V111T | MJPEG/MPEG4 | LM.1.6.16.03 | Video Server | v | one-way | v | |
F3105 | MJPG/MP4/H264 | MG 1.6.01 | H.264 Wireless MegaPixel Camera | -- | one-way | v | |
D6111 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP Vandal Proof Dome | -- | one-way | v | |
F3100 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP fixed | -- | one-way | v | |
F3105 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP fixed wireless | -- | one-way | v | |
F5100 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP box | -- | one-way | v | |
F5105 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP box wireless | -- | one-way | v | |
F5115 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP D/N box wireless | x | one-way | v | |
A-MTK | H.264 MegaPixel Series: AM91xxM |
MJPEG/MPEG4/H.264 | V5.0.0.3263 | Cube | -- | two-way | v |
AM92xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | PT | v | two-way | v | |
AM93xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | PTZ | v | two-way | v | |
AM95xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR | -- | two-way | v | |
AM96xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Box | -- | two-way | v | |
AM97xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Dome | v | two-way | v | |
AM98xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR Dome | v | two-way | v | |
AM90xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Vandal | -- | two-way | v | |
H.264 CCD Series: AM93xx |
MJPEG/MPEG4/H.264 | V5.0.2.3832 | PTZ | v | two-way | v | |
AM95xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR | -- | two-way | v | |
AM96xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Box | -- | two-way | v | |
AM97xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Dome | v | two-way | v | |
AM99xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Speed Dome | v | two-way | v | |
AM62xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Video Server | v | two-way | v | |
MPEG4 MegaPixel Series: AM31xM |
MJPEG/MPEG4 | V3.0.2.3269 | CMOS | -- | two-way | v | |
AM32xM | MJPEG/MPEG4 | V3.0.2.3269 | PT | v | two-way | v | |
AM36xM | MJPEG/MPEG4 | V3.0.2.3269 | Box | -- | two-way | v | |
MPEG4 CCD/VGA Series: AM30xx |
MJPEG/MPEG4 | V3.0.2.3269 | Vandal | -- | two-way | v | |
AM31xx | MJPEG/MPEG4 | V3.0.2.3269 | CMOS | -- | two-way | v | |
AM32xx | MJPEG/MPEG4 | V3.0.2.3269 | PT | v | two-way | v | |
AM35xx | MJPEG/MPEG4 | V3.0.2.3269 | IR | -- | two-way | v | |
AM36xx | MJPEG/MPEG4 | V3.0.2.3269 | Box | -- | two-way | v | |
AM37xx | MJPEG/MPEG4 | V3.0.2.3269 | Dome | v | two-way | v | |
AM38xx | MJPEG/MPEG4 | V3.0.2.3269 | IR Dome | v | two-way | v | |
AM39xx | MJPEG/MPEG4 | V3.0.2.3269 | Speed Dome | v | two-way | v | |
AM61xx | MJPEG/MPEG4 | V3.0.2.3269 | Video Server | v | two-way | v | |
Vivotek | 7000 Series IP7131 (Ver.1) |
MJPEG/MPEG4 | 0102b |
Fixed |
-- | one-way | x |
IP7132 (Ver.1) | MJPEG/MPEG4 | 0102a | Fixed | -- | one-way | x | |
IP7135 (Ver.1) | MJPEG/MPEG4 | 0301b | Fixed | -- | one-way | x | |
IP7137 (Ver.1) | MJPEG/MPEG4 | 0401a | Fixed | -- | one-way | x | |
PT7135 (Ver.1) | MJPEG/MPEG4 | 0301a | PTZ | one-way | x | ||
PT7137 (Ver.1) | MJPEG/MPEG4 | 0400b | PTZ | v | one-way | x | |
New 7000 Series IP7130 |
MJPEG/MPEG4 | 0101b |
Fixed |
-- | one-way | v | |
IP7133 | MJPEG/MPEG4 | 0101b | Fixed | -- | one-way | v | |
P7134 | MJPEG/MPEG4 | 0101e | Fixed | -- | one-way | v | |
IP7142 | MJPEG/MPEG4 | 0201a | Fixed | -- | one-way | v | |
IZ7151 | MJPEG/MPEG4 | 0101f | Fixed | -- | one-way | v | |
IP7153 | MJPEG/MPEG4 | 0100b | Fixed | -- | one-way | v | |
IP7154 | MJPEG/MPEG4 | 0100b | Fixed | -- | one-way | v | |
IP7160 | MJPEG/MPEG4 | 0102a | Fixed | -- | one-way | v | |
IP7161 | MJPEG/MPEG4 | 102h | Fixed | -- | one-way | v | |
IP7251 | MJPEG/MPEG4 | 0100f | Fixed | -- | one-way | v | |
IP7330 | MJPEG/MPEG4 | 0103a | Fixed | -- | one-way | v | |
PZ7111 | MJPEG/MPEG4 | 0106b | PTZ | v | one-way | v | |
PZ7112 | MJPEG/MPEG4 | 0104e | PTZ | v | one-way | v | |
PZ7121 | MJPEG/MPEG4 | 0106b | PTZ | v | one-way | v | |
PZ7122 | MJPEG/MPEG4 | 0104c | PTZ | v | one-way | v | |
PZ7131 | MJPEG/MPEG4 | 0100b | PTZ | v | one-way | v | |
PZ7132 | MJPEG/MPEG4 | 0100e | PTZ | v | one-way | v | |
PZ7151 | MJPEG/MPEG4 | 0101b | PTZ | v | one-way | v | |
PZ7152 | MJPEG/MPEG4 | 0101b | PTZ | v | one-way | v | |
PT7135 | MJPEG/MPEG4 | 0301a | PTZ | v | one-way | v | |
FD7131 | MJPEG/MPEG4 | 0201c | Fixed Dome | -- | one-way | v | |
FD7132 | MJPEG/MPEG4 | 0201c | Fixed Dome | -- | one-way | v | |
FD7141 | MJPEG/MPEG4 | 0101b | Fixed Dome | -- | one-way | v | |
FD7141V | MJPEG/MPEG4 | 0101b | Fixed Dome | -- | one-way | v | |
FD7151 | MJPEG/MPEG4 | 0201b | Fixed Dome | -- | one-way | v | |
SD73x3 | MJPEG/MPEG4 | 0102a | Speed Dome | v | one-way | v | |
IP8161 | MJPEG/MPEG4/H.264 | 0100m | 2MP H.264 D&N Fixed Camera | -- | one-way | v | |
VS2403 | MJPEG/MPEG4 | 0103e | MPEG4 Video Server | -- | -- | -- | |
Toshiba | IK-WD01A | MJPEG/MPEG4 | N/A | Speed Dome | v | one-way | v |
K-WB70A | MJPEG/MPEG4 | N/A | IP Bullet | -- | one-way | v | |
Abus | TV7240 | MJPEG/MPEG4 | 0102a,0102c,0910l | P/T | v | one-way | v |
TV7230 | MJPEG/MPEG4 | 0102a,0102c,0910w | P/T | v | one-way | v | |
TV7203 | MJPEG/MPEG4 | 0202a,0203a,0210l | Compact Fixed | -- | one-way | v | |
TV7204 | MJPEG/MPEG4 | 0202a,0203a,0210w | Compact Fixed | -- | one-way | v | |
TV7206 | MJPEG/MPEG4 | 0100b | Video Server | v | one-way | v | |
TV7220 | MJPEG/MPEG4 | 610l | Boxed | -- | one-way | v | |
TV7221 | MJPEG/MPEG4 | 4270 | Boxed | -- | one-way | v | |
TV7222 | MJPEG/MPEG4 | 710l | Boxed | -- | one-way | v | |
TV7223 | MJPEG/MPEG4 | 4970 | Boxed | -- | one-way | v | |
Arecont Vision | AV1300 | MJPEG | N/A | 1.3M IP Camera | x | one-way | x |
AV1305 | MJPEG/H.264 | N/A | 1.3M H.264 IP Camera | x | one-way | x | |
AV1355 | MJPEG/H.264 | N/A | 1.3M MegaDome H.264 | x | one-way | x | |
AV2100 | MJPEG | N/A | 2M IP Camera | x | one-way | x | |
AV2105 | MJPEG/H.264 | N/A | 2M H.264 IP Camera | x | one-way | x | |
AV2155 | MJPEG/H.264 | N/A | 2M MegaDome H.264 | x | one-way | x | |
AV3100 | MJPEG | N/A | 3M IP Camera | x | one-way | x | |
AV3105 | MJPEG/H.264 | N/A | 3M H.264 IP Camera | x | one-way | x | |
AV3155 | MJPEG/H.264 | N/A | 3M MegaDome H.264 | x | one-way | x | |
AV3130 | MJPEG | N/A | 3M/1.3M Day and Night | x | one-way | x | |
AV5100 | MJPEG | N/A | 5M IP Camera | x | one-way | x | |
AV5105 | MJPEG/H.264 | N/A | 5M H.264 IP Camera | x | one-way | x | |
AV5155 | MJPEG/H.264 | N/A | 5M MegaDome H.264 | x | one-way | x | |
AV8180 | MJPEG | N/A | 8M 180°Panoramic | x | one-way | x | |
AV8185 | MJPEG/H264 | N/A | 8M 180°Panoramic H.264 | x | one-way | x | |
AV8360 | MJPEG | N/A | 8M 360°Panoramic | x | one-way | x | |
AV8365 | MJPEG/H264 | N/A | 8M 360°Panoramic H.264 | x | one-way | x | |
Etrovision | EV6150 | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x |
EV6150A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6151A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6153A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6551A | MJPEG/MPEG4/H.264 | v1.5.1 | Dome | v | Two-way | x | |
EV6552A | MJPEG/MPEG4/H.264 | v1.5.1 | Dome | v | Two-way | x | |
EV8150A | MJPEG/MPEG4/H.264 | v1.5.1 | MegaPixel | v | Two-way | x | |
EV6353A | MJPEG/MPEG4/H.264 | v1.5.1 | Outdoor | -- | Two-way | x | |
EV6250A | MJPEG/MPEG4/H.264 | v1.5.1 | Speed Dome | v | Two-way | x | |
EV3850A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3151A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3151 | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3150A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
Mobotix | M12 | MJPEG | 3.4.5.18 | DualNight | v | Two-way | x |
M22 | MJPEG | 3.4.5.18 | Allround | v | Two-way | x | |
D12 | MJPEG | 3.4.5.18 | DualDome | v | Two-way | x | |
D24 | MJPEG | 4.0.1.15 | MonoDome | v | Two-way | x | |
ALinking | 9122/9122p | MJPEG/MPEG4 | v1.29 | Box Camera | -- | Two-way | -- |
9751/9751w | MJPEG/MPEG4 | v1.27 v1.32 | Box Camera | -- | Two-way | -- | |
9852/9852w | MJPEG/MPEG4 | v1.27 v1.33 | Box Camera | -- | Two-way | -- | |
9451 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9351 | MJPEG/MPEG4 | v1.27 v1.33 | Dome Camera | -- | Two-way | -- | |
9551 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9552 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9553 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9152 | MJPEG/MPEG4 | v1.27 v1.33 | Box Camera | -- | Two-way | -- | |
9652 | MJPEG/MPEG4 | v1.27 v1.33 | IR IP Camera | -- | Two-way | -- | |
BrickCom | WFB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x |
FD-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Fixed Dome | -- | Two-way | x | |
FB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
CB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
WCB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
IQInvision | IQA2xx series | MJPEG | V3.0/4 | Dome | v | Two-way | v |
IQA1xx serires | MJPEG | V3.0/4 | Boxed | -- | Two-way | v | |
IQ04xx/D4xx/05xx series | MJPEG | V3.0/4 | Boxed | -- | Two-way | v | |
IQEye5xx | MJPEG | V2.8/6 | Boxed | -- | Two-way | v | |
IQEye7xx/8xx series | MJPEG | V2.8/6 | Boxed | -- | Two-way | v | |
Hunt | All | MJPEG/MPEG4 | N/A | N/A | v | Two-way | v |
Pixord | P600 | MJPEG/H.264 | 1.0.5_rc1_1 | Boxed | -- | Two-way | x |
LevelOne | FCS-0010v2 | MJPEG/MPEG4 | 1.0.12 | Network Camera | -- | Two-way | v |
WCS-0010 | MJPEG/MPEG4 | 1.0.13 | Wireless Network Camera | -- | Two-way | v | |
FCS-0020 | MJPEG/MPEG4 | 1.0.07 | PTZ | v | Two-way | v | |
WCS-0020 | MJPEG/MPEG4 | 1.0.07 | Wireless | -- | Two-way | v | |
FCS-1091 | MJPEG/MPEG4 | 1.0.07 | D&N PoE | -- | Two-way | v | |
WCS-1090 | MJPEG/MPEG4 | 1.0.07 | Wireless | -- | Two-way | v | |
FCS-1030 V2.0 | MJPEG/MPEG4 | 0204a | Network Camera | -- | One-way | x | |
WCS-2030 V3.0 | MJPEG/MPEG4 | 0205a | Wireless | -- | One-way | v | |
FCS-1060 | MJPEG/MPEG4 | 0204a | CMOS PT | v | One-way | x | |
WCS-2060 | MJPEG/MPEG4 | 0204b | Wireless | -- | One-way | x | |
FCS-3021 | MJPEG/MPEG4 | 0101b | PoE IP Dome | v | One-way | v | |
FCS-5030 | MJPEG/MPEG4 | 0102g | Network Camera with IR | -- | One-way | v | |
FCS-4010 | MJPEG/MPEG4 | 0100f | D&N IP Speed Dome | v | One-way | v | |
FCS-5011 | MJPEG/MPEG4 | 0100f | Outdoor WDR PoE with IR | -- | One-way | v | |
FCS-1101 | MJPEG/MPEG4 | 1.6.16P02 | PoE | -- | Two-way | v | |
FCS-1081A | MJPEG/MPEG4 | 1.6.16P02 | PoE | -- | Two-way | v | |
FCS-4x00 | MJPEG/MPEG4 | 1.6.16P02 | D&N PTZ/Speed Dome | v | Two-way | v | |
FCS-0030 | MJPEG/MPEG4/H.264 | N/A | H.264 MegaPixel PIR | -- | Two-way | v | |
WCS-0030 | MJPEG/MPEG4/H.264 | N/A | Wireless | -- | Two-way | v | |
FCS-1121 | MJPEG/MPEG4/H.264 | v1.0 | H.264 MegaPixel PoE | -- | Two-way | v | |
FCS-3061 | MJPEG/MPEG4/H.264 | N/A | H.264 D&N MegaPixel PoE Dome | -- | Two-way | v | |
FCS-4020 | MJPEG/MPEG4 | 0100b | D&N Speed Dome | -- | One-way | v | |
FCS-3071 | MJPEG/H.264 | L20100602NS | Mini Dome | -- | x | x | |
FCS-1131 | MJPEG/H.264 | L20100602NS | Mini Dome | -- | x | x | |
FCS-1141 | MJPEG/MPEG4/H.264 | L20100602NS | Boxed | -- | x | x | |
Planet | ICA-H312 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 IR Camera | -- | Two-way | v |
ICA-H610 | MJPEG/MPEG4/H.264 | N/A | H.264 Indoor CCD | -- | Two-way | v | |
ICA-H651 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 Outdoor Speed Dome | v | Two-way | v | |
ICA-HM125 | MJPEG/MPEG4/H.264 | 1.0.3_rc7_4782 | H.264 2MP Boxed | -- | Two-way | v | |
ICA-HM130 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Dome | v | Two-way | v | |
ICA-HM135 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Vandal Proof Dome | v | Two-way | v | |
ICA-HM230 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel CMOS PT | v | Two-way | v | |
ICA-HM350 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Outdoor IR | -- | Two-way | v | |
ICA-M220 | MJPEG/MPEG4 | 1.19 | MegaPixel CMOS PT | v | Two-way | v | |
ICA-M220W | MJPEG/MPEG4 | 1.19 | 802.11n MegaPixel CMOS PT | v | Two-way | v | |
ICA-107 | MJPEG/MPEG4 | 1.37 | Wired CMOS | -- | Two-way | v | |
ICA-107P | MJPEG/MPEG4 | 1.37 | PoE CMOS | -- | Two-way | v | |
ICA-107W | MJPEG/MPEG4 | 1.37 | Wireless CMOS | -- | Two-way | v | |
ICA-108 | MJPEG/MPEG4 | 3.0.3.3597 | Wired IR | -- | Two-way | v | |
ICA-108W | MJPEG/MPEG4 | 3.0.3.3597 | Wireless IR | -- | Two-way | v | |
ICA-110 | MJPEG/MPEG4 | N/A | Wired | -- | Two-way | v | |
ICA-110W | MJPEG/MPEG4 | N/A | Wireless | -- | Two-way | v | |
ICA-120 | MJPEG/MPEG4 | 3.0.3.3597 | CMOS Boxed | -- | Two-way | v | |
ICA-150W | MJPEG/MPEG4 | N/A | Desktop Wireless | -- | Two-way | v | |
ICA-210W | MJPEG/MPEG4 | 1.0.0 build 39 | Wireless PT | v | Two-way | v | |
ICA-550W | MJPEG/MPEG4 | 1.0.02 | Desktop PT | v | Two-way | v | |
ICA-312 | MJPEG/MPEG4 | 3.0.3.3597 | 25 meter IR | -- | Two-way | v | |
ICA-350 | MJPEG/MPEG4 | 3.0.3.3597 | 30 meter Outdoor IR | -- | Two-way | v | |
ICA-501 | MJPEG/MPEG4 | 3.0.3.3597 | CCD PT | v | Two-way | v | |
ICA-510 | MJPEG/MPEG4 | 1.6.16.00 | Dual Mode CCD Dome | v | Two-way | v | |
ICA-525 | MJPEG/MPEG4 | 3.0.3.3597 | 20 meter IR Vandal Proof Dome | v | Two-way | v | |
ICA-530 | MJPEG/MPEG4 | 3.0.3.3597 | 15 meter IR Dome | v | Two-way | v | |
ICA-601 | MJPEG/MPEG4 | 3.0.3.3597 | Indoor Speed Dome | v | Two-way | v | |
IVS-110 | MJPEG/MPEG4 | 3.0.3.3597 | 1 Ch. Video Server | v | Two-way | v | |
IVS-H120 | MJPEG/MPEG4/H.264 | N/A | H.264 Video Server | v | Two-way | v | |
ICA-HM131 | MJPEG/H.264 | P20100602NS | Mini Dome | -- | One-way | x | |
ICA-HM131R | MJPEG/H.264 | P20100602NS | Mini Dome | -- | One-way | x | |
ICA-HM126 | MJPEG/H.264 | P20100602NS | Boxed | -- | One-way | x | |
ICA-HM126R | MJPEG/H.264 | P20100602NS | Boxed | -- | One-way | x | |
ICA-H652 | MJPEG/H.264 | P20100602NS | SpeedDome | v | One-way | x | |
HikVision | DS2CD862MF | MJPEG/H.264 | V2.0 build 100125 only | Box | -- | Two-way | x |
Dynacolor | V1-A | MJPEG/H.264 | 20100602NS | Mini Dome | -- | One-way | x |
V1-B | MJPEG/H.264 | 20100602NS | Mini Dome | -- | One-way | x | |
V6-A1270 | MJPEG/H.264 | 20100602NS | Boxed | -- | One-way | x | |
V6-B1270 | MJPEG/H.264 | 20100602NS | Boxed | -- | One-way | x | |
DH801e-S4 | MJPEG/H.264 | 20100602NS | SpeedDome | v | One-way | x | |
NH061 | MJPEG/MPEG4/H.264 | 20100602NS | Boxed | -- | One-way | x | |
Ovislink | WL-2000CAM | MJPEG/MPEG4 | LM.1.6.16.05 | Wireless Fixed | -- | Two-way | v |
POE-100CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Boxed | -- | Two-way | v | |
POE-200CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Dome | v | Two-way | v | |
OD-300CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Outdoor IR | -- | Two-way | v | |
POE-100CAMv2 | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Boxed | -- | Two-way | v | |
POE-200CAMv2 | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Dome | v | Two-way | v | |
WL-2600CAM | MJPEG/MPEG4 | LM.1.6.16.05 | Wireless PoE IR PT | v | Two-way | v | |
POE-260CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE IR PT | v | Two-way | v | |
WL-350HD | MJPEG/MPEG4/H.264 | MG.1.6.02 | Wireless Fixed | -- | Two-way | v | |
POE-200HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE IP Dome | v | Two-way | v | |
OD-600HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PTZ | v | Two-way | v | |
POE-250HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE IP Dome | v | Two-way | v | |
OD-325HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | IR Bullet | -- | Two-way | v | |
POE-100HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE Boxed | -- | Two-way | v | |
Sanyo | VCC-HD2300 | MJPEG/H.264 | CAM MAIN Ver. 1.01-02 (100506-00) CAM SUB Ver. 1.00-00 (090910-00) NET MAIN Ver. 1.02-00 (100521-01) NET SUB Ver. 1.00-02 (100422-00) |
Box | -- | -- | x |
VCC-HD2500 | MJPEG/H.264 | Dome | v | Two way | x | ||
VCC-HD4600 | MJPEG/H.264 | Boxed | -- | Two way | x | ||
VDC-HD3300 | MJPEG/H.264 | Dome | -- | -- | x | ||
VDC-HD3500 | MJPEG/H.264 | Dome | -- | Two-way | x |
NVST-MP04/08/16 / IVS Central Basic Supported Camera List (as of 10/01/10) | |||||||
Manufacturer | Model | Compression Type Suppported | Firmware | Unit Type | PTZ | Audio Supported | I/O Supported |
Axis | All dual-stream and H.264 capable cameras | MJPEG/MPEG4/H.264 | v4.30 or above | All | V | two-way | V |
Panasonic (Communication) |
BL-C1 | MJPEG | (firmware 1.29 or later) | Fixed | -- | two-way | V |
BL-C10 | MJPEG | (firmware 1.24 or later) | Fixed | -- | two-way | V | |
BL-C20 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BL-C30 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BL-C111 | MJPEG/MPEG4 | (firmware 3.10 or later) | Fixed | -- | two-way | V | |
BL-C131 | MJPEG/MPEG4 | (firmware 3.10 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCS301 | MJPEG | (firmware 1.30 or later) | PTZ Wireless (Digital Zoom) | V | two-way | V | |
BB-HCM100 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM110 | MJPEG | (firmware 1.30R01 or later) | Fixed | -- | two-way | V | |
BB-HCM311 | MJPEG | (firmware 1.30 or later) | Fixed | -- | two-way | V | |
BB-HCM331 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM371 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM-381 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
KX-HCM110 | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
KX-HCM280A | MJPEG | (firmware 1.30 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM403 | MJPEG | (firmware 1.33 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCE481 | MJPEG | (firmware 1.29) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM511 | MJPEG/MPEG4 | (firmware 3.12 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM527 | MJPEG/MPEG4 | (firmware 3.51R00 or later) | PTZ | V | two-way | V | |
BB-HCM531 | MJPEG/MPEG4 | (firmware 3.12 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM547 | MJPEG/MPEG4 | (firmware 3.51R00 or later) | PTZ | V | two-way | V | |
BB-HCM515 | MJPEG/MPEG4 | (firmware 3.11 or later) | PTZ MegaPixel | V | two-way | V | |
BB-HCM580 | MJPEG/MPEG4 | (firmware 3.13 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM581 | MJPEG/MPEG4 | (firmware 3.13 or later) | PTZ (Digital Zoom) | V | two-way | V | |
BB-HCM715 | MJPEG/MPEG4/H.264 | (firmware 4.10R00 or later) | PT | V | two-way | V | |
BB-HCM715 | MJPEG/MPEG4/H.264 | (firmware 4.10R00 or later) | PT | V | two-way | V | |
Panasonic (Business) |
WV-NP1004 | MJPEG | v1.21 | MegaPixel Box | -- | one-way | v |
WV-NP244 | MJPEG/MPEG4 | Fixed Box | -- | one-way | v | ||
WV-NS202 | MJPEG | v1.30 | PTZ | V | one-way | v | |
WV-NF284 | MJPEG/MPEG4 | v1.11 | Fixed Dome | -- | one-way | v | |
WJ-NT304 | MJPEG | v1.10 | 4 Ch. Encoder | V | one-way | v | |
WV-NW484S | MJPEG/MPEG4 | v1.03 | Vandal Dome (Surface Mount) | V | one-way | v | |
WV-NS202A | MJPEG/MPEG4 | v1.10 | PTZ | V | one-way | v | |
WV-NS954 | MJPEG/MPEG4 | v2.20 | PTZ | V | one-way | v | |
WV-NW964 | MJPEG/MPEG4 | v1.10 | Outdoor PTZ | V | one-way | v | |
WJ-NT314 | MJPEG | N/A | 4 Ch. Encoder | V | one-way | v | |
WV-NF302 | MJPEG/MPEG4 | v1.10 | Ruggedized MegaPixel Fixed Dome | -- | one-way | v | |
WV-NP304 | MJPEG/MPEG4 | v1.10 | MegaPixel Box | -- | one-way | v | |
Sony | SNC-CS10 | MJPEG/MPEG4 | v1.06 | Fixed | -- | two-way | x |
SNC-CS11 | MJPEG/MPEG4 | v1.06 | Fixed | -- | two-way | x | |
SNC-CS20 | MJPEG/MPEG4 | v1.02 | Fixed | -- | two-way | x | |
SNC-CS50 | MJPEG/MPEG4/H.264 | v2.23 | Fixed SuperExwave DEPA | -- | two-way | v | |
SNC-DF40 | MJPEG/MPEG4 | v1.18 | Minidome | V | two-way | x | |
SNC-DF50 | MJPEG/MPEG4/H.264 | v1.14 | DynaView Minidome DEPA | V | two-way | v | |
SNC-DF70 | MJPEG/MPEG4 | v1.18 | Ruggedized Minidome | V | two-way | v | |
SNC-DF80 | MJPEG/MPEG4/H.264 | v1.14 | Ruggedized SuperExwave Minidome DEPA | V | two-way | v | |
SNC-DS10 | MJPEG/MPEG4 | v1.02 | Minidome DEPA | V | two-way | v | |
SNC-DS60 | MJPEG/MPEG4 | v1.02 | Ruggedized Minidome DEPA | V | two-way | v | |
SNC-P1 | MJPEG/MPEG4 | v1.29 | Fixed | -- | two-way | x | |
SNC-P5 | MJPEG/MPEG4 | v1.29 | PTZ | V | two-way | x | |
SNC-RZ25 | MJPEG/MPEG4 | v1.30 | PTZ Exwave | V | two-way | x | |
SNC-RZ50 | MJPEG/MPEG4/H.264 | v1.13 | PTZ DEPA | V | two-way | v | |
SNC-RX530 | MJPEG/MPEG4/H.264 | v3.02/v2.32 | PTZ Exwave DEPA | V | two-way | v | |
SNC-RX550 | MJPEG/MPEG4/H.264 | v3.02/v2.32 | PTZ Exwave DEPA | V | two-way | v | |
SNC-RX570 | MJPEG/MPEG4/H.264 | v3.02/v2.23 | PTZ Exwave DEPA Dynaview | V | two-way | v | |
SNC-CM120 | MJPEG/MPEG4 | v1.03 | Megapixel fixed camera | -- | two-way | v | |
SNC-CS20 | MJPEG/MPEG4 | v1.03 | Fixed camera | -- | two-way | v | |
SNC-DM110 | MJPEG/MPEG4 | v1.03 | Megapixel normal minidome camera | V | two-way | v | |
SNC-DM160 | MJPEG/MPEG4 | v1.03 | Megapixel ruggedized minidome camera | V | two-way | v | |
SNC-DS10 | MJPEG/MPEG4 | v1.03 | Normal minidome camera | V | two-way | v | |
SNC-DS60 | MJPEG/MPEG4 | v1.03 | Ruggedized minidome camera | V | two-way | v | |
SNC-RH124 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RH164 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS46 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS44 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS86 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNC-RS84 | MJPEG/MPEG4/H264 | 1.04.00 | Network Camera | V | two-way | v | |
SNT-EX101 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EX104 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EX154 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EP104 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNT-EP154 | MJPEG/MPEG4/H264 | 1.04.00 | Sony Video Network Station | V | two-way | v | |
SNC-CH140 | MJPEG/MPEG4/H264 | 1.10.03 | PoE 720P Boxed | -- | two-way | v | |
SNC-CH180 | MJPEG/MPEG4/H264 | 1.10.03 | PoE 720P Bullet | -- | two-way | v | |
SNC-CH240 | MJPEG/MPEG4/H264 | 1.11 | PoE HD Boxed | -- | two-way | v | |
SNC-DH140 | MJPEG/MPEG4/H264 | 1.10.03 | 720P MiniDome | V | two-way | v | |
SNC-DH140T | MJPEG/MPEG4/H264 | 1.10.03 | 720P MiniDome Vandal Resistance | V | two-way | v | |
SNC-DH180 | MJPEG/MPEG4/H264 | 1.11 | 720P MiniDome Vandal Resistance with IR | V | two-way | v | |
SNC-DH240 | MJPEG/MPEG4/H264 | 1.10.03 | HD MiniDome | V | two-way | v | |
SNC-DH240T | MJPEG/MPEG4/H264 | 1.10.03 | HD MiniDome Vandal Resistance | V | two-way | v | |
SNC-DF85 | MJPEG/MPEG4/H264 | 1.2 | Dual Stream MiniDome D/N and PoE | V | two-way | v | |
AVTech | AVI-201 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x |
AVI-202 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x | |
AVI-203 | MJPEG/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-211 | MJPEG/MPEG4/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-212 | MJPEG/MPEG4/H.264 | N/A | Fixed | -- | two-way | x | |
AVN-222 | MJPEG/MPEG4 | N/A | Fixed | -- | two-way | x | |
AVN-244 | MJPEG/MPEG4/H.264 | N/A | PTZ | v | two-way | x | |
AVN-252 | MJPEG/MPEG4/H.264 | N/A | Bullet | -- | two-way | x | |
AVN-263 | H.264 | N/A | Bullet | -- | two-way | x | |
AVN-284 | MJPEG/MPEG4/H.264 | N/A | PTZ | v | two-way | x | |
Canon | VB-C300 | MJPEG | V1.1 | PTZ | v | two-way | v |
VB-C60 | MJPEG/MPEG4 | V1.0.0 | PTZ | v | two-way | v | |
VB-C500D | MJPEG/MPEG4 | V1.0.0 | PTZ | v | two-way | v | |
ACTi | ACM1011 | MJPEG/MPEG4 | V3.11 | IP Bullet Camera | -- | two-way | v |
ACM1511 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM1231 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM1232 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed IP Bullet Camera | -- | two-way | v | |
ACM3011 | MJPEG/MPEG4 | V3.11 | IP Fixed Dome | -- | two-way | v | |
ACM3401 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM3411 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM3511 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACM4000 | MJPEG/MPEG4 | V3.11 | IP Cube Camera | -- | two-way | v | |
ACM4001 | MJPEG/MPEG4 | V3.11 | IP Cube Camera | -- | two-way | v | |
ACM4200 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Cube IP Camera | -- | two-way | v | |
ACM4201 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Cube IP Camera | -- | two-way | v | |
ACM5601 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Box IP Camera | -- | two-way | v | |
ACM5611 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Box IP Camera | -- | two-way | v | |
ACM7411 | MJPEG/MPEG4 | V3.11 | MegaPixel Fixed Dome IP Camera | -- | two-way | v | |
ACD2100 | MJPEG/MPEG4 | V3.11 | 1 Ch. Video Server | v | two-way | v | |
ACD2200 | MJPEG/MPEG4 | V3.11 | 4 Ch. Video Server | v | two-way | v | |
ACD2300 | MJPEG/MPEG4 | V3.11 | 8 Ch. Video Server | v | two-way | v | |
ACD2400 | MJPEG/MPEG4 | V3.11 | 16 Ch. Video Server | v | two-way | v | |
TCM-5311 | MJPEG/MPEG4/H.264 | V3.11 | H.264 CCD MegaPixel IP Camera | -- | two-way | v | |
D-Link | DCS-2102 | MJPEG/MPEG4 | v1.03 | Fixed | -- | two-way | x |
DCS-2121 | MJPEG/MPEG4 | v1.03 | Fixed | -- | two-way | x | |
DCS-3410 | MJPEG/MPEG4 | v1.03 | Box | -- | two-way | x | |
DVS-N3010 | MJPEG/MPEG4 | v3.2.58 | Single-channel video server | -- | two-way | x | |
DVS-N3014 | MJPEG/MPEG4 | v3.2.58 | Single channel wireless video server | -- | two-way | x | |
DVS-N3040 | MJPEG/MPEG4 | v3.2.58 | Four-channel video server | -- | two-way | x | |
DVS-N3044 | MJPEG/MPEG4 | v3.2.58 | Four-channel video server | -- | two-way | x | |
DCS-N3530 | MJPEG/MPEG4 | v3.2.58 | Day/Night | -- | two-way | x | |
DCS-N3531 | MJPEG/MPEG4 | v3.2.58 | Day/Night | -- | two-way | x | |
DCS-N3534 | MJPEG/MPEG4 | v3.2.58 | Wireless | -- | two-way | x | |
DCS-N5440 | MJPEG/MPEG4 | v3.2.58 | PT | -- | two-way | x | |
DCS-N5442 | MJPEG/MPEG4 | v3.2.58 | PT/IR | -- | two-way | x | |
DCS-N5444 | MJPEG/MPEG4 | v3.2.58 | PT/IR/Wireless | -- | two-way | x | |
DCS-N6240 | MJPEG/MPEG4 | v3.2.58 | PTZ | -- | two-way | x | |
DCS-N6241 | MJPEG/MPEG4 | v3.2.58 | PTZ PoE | -- | two-way | x | |
DCS-N6244 | MJPEG/MPEG4 | v3.2.58 | Wireless PTZ PoE | -- | two-way | x | |
DCS-N2100 | MJPEG/MPEG4 | v3.2.58 | 3GPP | -- | two-way | x | |
DCS-N2104 | MJPEG/MPEG4 | v3.2.58 | 3GPP Wireless | -- | two-way | x | |
Zavio | F210A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v |
F312A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F611E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F510E/W | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F511E/W | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F520E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed IP Camera | -- | one-way | v | |
F610A | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
D611E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
D510E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
M511E/W | MJPEG/MPEG4 | LM.1.6.16.03 | PT IP Camera | v | one-way | v | |
M510W/W | MJPEG/MPEG4 | LM.1.6.16.03 | PT IP Camera | v | one-way | v | |
D520E | MJPEG/MPEG4 | LM.1.6.16.03 | Fixed Dome IP Camera | -- | one-way | v | |
F731E | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
F721A | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
F521E | MJPEG/MPEG4 | LM.1.6.16.03 | Bullet IP Camera | -- | one-way | v | |
V111T | MJPEG/MPEG4 | LM.1.6.16.03 | Video Server | v | one-way | v | |
F3105 | MJPG/MP4/H264 | MG 1.6.01 | H.264 Wireless MegaPixel Camera | -- | one-way | v | |
D6111 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP Vandal Proof Dome | -- | one-way | v | |
F3100 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP fixed | -- | one-way | v | |
F3105 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP fixed wireless | -- | one-way | v | |
F5100 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP box | -- | one-way | v | |
F5105 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP box wireless | -- | one-way | v | |
F5115 | MJPG/MP4/H264 | MG 1.6.01 | 1.3 MP D/N box wireless | x | one-way | v | |
A-MTK | H.264 MegaPixel Series: AM91xxM |
MJPEG/MPEG4/H.264 | V5.0.0.3263 | Cube | -- | two-way | v |
AM92xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | PT | v | two-way | v | |
AM93xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | PTZ | v | two-way | v | |
AM95xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR | -- | two-way | v | |
AM96xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Box | -- | two-way | v | |
AM97xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Dome | v | two-way | v | |
AM98xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR Dome | v | two-way | v | |
AM90xxM | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Vandal | -- | two-way | v | |
H.264 CCD Series: AM93xx |
MJPEG/MPEG4/H.264 | V5.0.2.3832 | PTZ | v | two-way | v | |
AM95xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | IR | -- | two-way | v | |
AM96xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Box | -- | two-way | v | |
AM97xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Dome | v | two-way | v | |
AM99xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Speed Dome | v | two-way | v | |
AM62xx | MJPEG/MPEG4/H.264 | V5.0.2.3832 | Video Server | v | two-way | v | |
MPEG4 MegaPixel Series: AM31xM |
MJPEG/MPEG4 | V3.0.2.3269 | CMOS | -- | two-way | v | |
AM32xM | MJPEG/MPEG4 | V3.0.2.3269 | PT | v | two-way | v | |
AM36xM | MJPEG/MPEG4 | V3.0.2.3269 | Box | -- | two-way | v | |
MPEG4 CCD/VGA Series: AM30xx |
MJPEG/MPEG4 | V3.0.2.3269 | Vandal | -- | two-way | v | |
AM31xx | MJPEG/MPEG4 | V3.0.2.3269 | CMOS | -- | two-way | v | |
AM32xx | MJPEG/MPEG4 | V3.0.2.3269 | PT | v | two-way | v | |
AM35xx | MJPEG/MPEG4 | V3.0.2.3269 | IR | -- | two-way | v | |
AM36xx | MJPEG/MPEG4 | V3.0.2.3269 | Box | -- | two-way | v | |
AM37xx | MJPEG/MPEG4 | V3.0.2.3269 | Dome | v | two-way | v | |
AM38xx | MJPEG/MPEG4 | V3.0.2.3269 | IR Dome | v | two-way | v | |
AM39xx | MJPEG/MPEG4 | V3.0.2.3269 | Speed Dome | v | two-way | v | |
AM61xx | MJPEG/MPEG4 | V3.0.2.3269 | Video Server | v | two-way | v | |
Vivotek | 7000 Series IP7131 (Ver.1) |
MJPEG/MPEG4 | 0102b |
Fixed |
-- | one-way | x |
IP7132 (Ver.1) | MJPEG/MPEG4 | 0102a | Fixed | -- | one-way | x | |
IP7135 (Ver.1) | MJPEG/MPEG4 | 0301b | Fixed | -- | one-way | x | |
IP7137 (Ver.1) | MJPEG/MPEG4 | 0401a | Fixed | -- | one-way | x | |
PT7135 (Ver.1) | MJPEG/MPEG4 | 0301a | PTZ | one-way | x | ||
PT7137 (Ver.1) | MJPEG/MPEG4 | 0400b | PTZ | v | one-way | x | |
New 7000 Series IP7130 |
MJPEG/MPEG4 | 0101b |
Fixed |
-- | one-way | v | |
IP7133 | MJPEG/MPEG4 | 0101b | Fixed | -- | one-way | v | |
P7134 | MJPEG/MPEG4 | 0101e | Fixed | -- | one-way | v | |
IP7142 | MJPEG/MPEG4 | 0201a | Fixed | -- | one-way | v | |
IZ7151 | MJPEG/MPEG4 | 0101f | Fixed | -- | one-way | v | |
IP7153 | MJPEG/MPEG4 | 0100b | Fixed | -- | one-way | v | |
IP7154 | MJPEG/MPEG4 | 0100b | Fixed | -- | one-way | v | |
IP7160 | MJPEG/MPEG4 | 0102a | Fixed | -- | one-way | v | |
IP7161 | MJPEG/MPEG4 | 102h | Fixed | -- | one-way | v | |
IP7251 | MJPEG/MPEG4 | 0100f | Fixed | -- | one-way | v | |
IP7330 | MJPEG/MPEG4 | 0103a | Fixed | -- | one-way | v | |
PZ7111 | MJPEG/MPEG4 | 0106b | PTZ | v | one-way | v | |
PZ7112 | MJPEG/MPEG4 | 0104e | PTZ | v | one-way | v | |
PZ7121 | MJPEG/MPEG4 | 0106b | PTZ | v | one-way | v | |
PZ7122 | MJPEG/MPEG4 | 0104c | PTZ | v | one-way | v | |
PZ7131 | MJPEG/MPEG4 | 0100b | PTZ | v | one-way | v | |
PZ7132 | MJPEG/MPEG4 | 0100e | PTZ | v | one-way | v | |
PZ7151 | MJPEG/MPEG4 | 0101b | PTZ | v | one-way | v | |
PZ7152 | MJPEG/MPEG4 | 0101b | PTZ | v | one-way | v | |
PT7135 | MJPEG/MPEG4 | 0301a | PTZ | v | one-way | v | |
FD7131 | MJPEG/MPEG4 | 0201c | Fixed Dome | -- | one-way | v | |
FD7132 | MJPEG/MPEG4 | 0201c | Fixed Dome | -- | one-way | v | |
FD7141 | MJPEG/MPEG4 | 0101b | Fixed Dome | -- | one-way | v | |
FD7141V | MJPEG/MPEG4 | 0101b | Fixed Dome | -- | one-way | v | |
FD7151 | MJPEG/MPEG4 | 0201b | Fixed Dome | -- | one-way | v | |
SD73x3 | MJPEG/MPEG4 | 0102a | Speed Dome | v | one-way | v | |
IP8161 | MJPEG/MPEG4/H.264 | 0100m | 2MP H.264 D&N Fixed Camera | -- | one-way | v | |
VS2403 | MJPEG/MPEG4 | 0103e | MPEG4 Video Server | -- | -- | -- | |
Toshiba | IK-WD01A | MJPEG/MPEG4 | N/A | Speed Dome | v | one-way | v |
K-WB70A | MJPEG/MPEG4 | N/A | IP Bullet | -- | one-way | v | |
Abus | TV7240 | MJPEG/MPEG4 | 0102a,0102c,0910l | P/T | v | one-way | v |
TV7230 | MJPEG/MPEG4 | 0102a,0102c,0910w | P/T | v | one-way | v | |
TV7203 | MJPEG/MPEG4 | 0202a,0203a,0210l | Compact Fixed | -- | one-way | v | |
TV7204 | MJPEG/MPEG4 | 0202a,0203a,0210w | Compact Fixed | -- | one-way | v | |
TV7206 | MJPEG/MPEG4 | 0100b | Video Server | v | one-way | v | |
TV7220 | MJPEG/MPEG4 | 610l | Boxed | -- | one-way | v | |
TV7221 | MJPEG/MPEG4 | 4270 | Boxed | -- | one-way | v | |
TV7222 | MJPEG/MPEG4 | 710l | Boxed | -- | one-way | v | |
TV7223 | MJPEG/MPEG4 | 4970 | Boxed | -- | one-way | v | |
Arecont Vision | AV1300 | MJPEG | N/A | 1.3M IP Camera | x | one-way | x |
AV1305 | MJPEG/H.264 | N/A | 1.3M H.264 IP Camera | x | one-way | x | |
AV1355 | MJPEG/H.264 | N/A | 1.3M MegaDome H.264 | x | one-way | x | |
AV2100 | MJPEG | N/A | 2M IP Camera | x | one-way | x | |
AV2105 | MJPEG/H.264 | N/A | 2M H.264 IP Camera | x | one-way | x | |
AV2155 | MJPEG/H.264 | N/A | 2M MegaDome H.264 | x | one-way | x | |
AV3100 | MJPEG | N/A | 3M IP Camera | x | one-way | x | |
AV3105 | MJPEG/H.264 | N/A | 3M H.264 IP Camera | x | one-way | x | |
AV3155 | MJPEG/H.264 | N/A | 3M MegaDome H.264 | x | one-way | x | |
AV3130 | MJPEG | N/A | 3M/1.3M Day and Night | x | one-way | x | |
AV5100 | MJPEG | N/A | 5M IP Camera | x | one-way | x | |
AV5105 | MJPEG/H.264 | N/A | 5M H.264 IP Camera | x | one-way | x | |
AV5155 | MJPEG/H.264 | N/A | 5M MegaDome H.264 | x | one-way | x | |
AV8180 | MJPEG | N/A | 8M 180°Panoramic | x | one-way | x | |
AV8185 | MJPEG/H264 | N/A | 8M 180°Panoramic H.264 | x | one-way | x | |
AV8360 | MJPEG | N/A | 8M 360°Panoramic | x | one-way | x | |
AV8365 | MJPEG/H264 | N/A | 8M 360°Panoramic H.264 | x | one-way | x | |
Etrovision | EV6150 | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x |
EV6150A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6151A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6153A | MJPEG/MPEG4/H.264 | v1.5.1 | Box | -- | Two-way | x | |
EV6551A | MJPEG/MPEG4/H.264 | v1.5.1 | Dome | v | Two-way | x | |
EV6552A | MJPEG/MPEG4/H.264 | v1.5.1 | Dome | v | Two-way | x | |
EV8150A | MJPEG/MPEG4/H.264 | v1.5.1 | MegaPixel | v | Two-way | x | |
EV6353A | MJPEG/MPEG4/H.264 | v1.5.1 | Outdoor | -- | Two-way | x | |
EV6250A | MJPEG/MPEG4/H.264 | v1.5.1 | Speed Dome | v | Two-way | x | |
EV3850A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3151A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3151 | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
EV3150A | MJPEG/MPEG4/H.264 | v1.5.1 | Video Server | v | Two-way | x | |
Mobotix | M12 | MJPEG | 3.4.5.18 | DualNight | v | Two-way | x |
M22 | MJPEG | 3.4.5.18 | Allround | v | Two-way | x | |
D12 | MJPEG | 3.4.5.18 | DualDome | v | Two-way | x | |
D24 | MJPEG | 4.0.1.15 | MonoDome | v | Two-way | x | |
ALinking | 9122/9122p | MJPEG/MPEG4 | v1.29 | Box Camera | -- | Two-way | -- |
9751/9751w | MJPEG/MPEG4 | v1.27 v1.32 | Box Camera | -- | Two-way | -- | |
9852/9852w | MJPEG/MPEG4 | v1.27 v1.33 | Box Camera | -- | Two-way | -- | |
9451 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9351 | MJPEG/MPEG4 | v1.27 v1.33 | Dome Camera | -- | Two-way | -- | |
9551 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9552 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9553 | MJPEG/MPEG4 | v1.27 v1.33 | Speed Dome | -- | Two-way | -- | |
9152 | MJPEG/MPEG4 | v1.27 v1.33 | Box Camera | -- | Two-way | -- | |
9652 | MJPEG/MPEG4 | v1.27 v1.33 | IR IP Camera | -- | Two-way | -- | |
BrickCom | WFB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x |
FD-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Fixed Dome | -- | Two-way | x | |
FB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
CB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
WCB-100A | MJPEG/MPEG4/H.264 | v2.3.5.9 | Boxed | -- | Two-way | x | |
IQInvision | IQA2xx series | MJPEG | V3.0/4 | Dome | v | Two-way | v |
IQA1xx serires | MJPEG | V3.0/4 | Boxed | -- | Two-way | v | |
IQ04xx/D4xx/05xx series | MJPEG | V3.0/4 | Boxed | -- | Two-way | v | |
IQEye5xx | MJPEG | V2.8/6 | Boxed | -- | Two-way | v | |
IQEye7xx/8xx series | MJPEG | V2.8/6 | Boxed | -- | Two-way | v | |
Hunt | All | MJPEG/MPEG4 | N/A | N/A | v | Two-way | v |
Pixord | P600 | MJPEG/H.264 | 1.0.5_rc1_1 | Boxed | -- | Two-way | x |
LevelOne | FCS-0010v2 | MJPEG/MPEG4 | 1.0.12 | Network Camera | -- | Two-way | v |
WCS-0010 | MJPEG/MPEG4 | 1.0.13 | Wireless Network Camera | -- | Two-way | v | |
FCS-0020 | MJPEG/MPEG4 | 1.0.07 | PTZ | v | Two-way | v | |
WCS-0020 | MJPEG/MPEG4 | 1.0.07 | Wireless | -- | Two-way | v | |
FCS-1091 | MJPEG/MPEG4 | 1.0.07 | D&N PoE | -- | Two-way | v | |
WCS-1090 | MJPEG/MPEG4 | 1.0.07 | Wireless | -- | Two-way | v | |
FCS-1030 V2.0 | MJPEG/MPEG4 | 0204a | Network Camera | -- | One-way | x | |
WCS-2030 V3.0 | MJPEG/MPEG4 | 0205a | Wireless | -- | One-way | v | |
FCS-1060 | MJPEG/MPEG4 | 0204a | CMOS PT | v | One-way | x | |
WCS-2060 | MJPEG/MPEG4 | 0204b | Wireless | -- | One-way | x | |
FCS-3021 | MJPEG/MPEG4 | 0101b | PoE IP Dome | v | One-way | v | |
FCS-5030 | MJPEG/MPEG4 | 0102g | Network Camera with IR | -- | One-way | v | |
FCS-4010 | MJPEG/MPEG4 | 0100f | D&N IP Speed Dome | v | One-way | v | |
FCS-5011 | MJPEG/MPEG4 | 0100f | Outdoor WDR PoE with IR | -- | One-way | v | |
FCS-1101 | MJPEG/MPEG4 | 1.6.16P02 | PoE | -- | Two-way | v | |
FCS-1081A | MJPEG/MPEG4 | 1.6.16P02 | PoE | -- | Two-way | v | |
FCS-4x00 | MJPEG/MPEG4 | 1.6.16P02 | D&N PTZ/Speed Dome | v | Two-way | v | |
FCS-0030 | MJPEG/MPEG4/H.264 | N/A | H.264 MegaPixel PIR | -- | Two-way | v | |
WCS-0030 | MJPEG/MPEG4/H.264 | N/A | Wireless | -- | Two-way | v | |
FCS-1121 | MJPEG/MPEG4/H.264 | v1.0 | H.264 MegaPixel PoE | -- | Two-way | v | |
FCS-3061 | MJPEG/MPEG4/H.264 | N/A | H.264 D&N MegaPixel PoE Dome | -- | Two-way | v | |
FCS-4020 | MJPEG/MPEG4 | 0100b | D&N Speed Dome | -- | One-way | v | |
FCS-3071 | MJPEG/H.264 | L20100602NS | Mini Dome | -- | x | x | |
FCS-1131 | MJPEG/H.264 | L20100602NS | Mini Dome | -- | x | x | |
FCS-1141 | MJPEG/MPEG4/H.264 | L20100602NS | Boxed | -- | x | x | |
Planet | ICA-H312 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 IR Camera | -- | Two-way | v |
ICA-H610 | MJPEG/MPEG4/H.264 | N/A | H.264 Indoor CCD | -- | Two-way | v | |
ICA-H651 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 Outdoor Speed Dome | v | Two-way | v | |
ICA-HM125 | MJPEG/MPEG4/H.264 | 1.0.3_rc7_4782 | H.264 2MP Boxed | -- | Two-way | v | |
ICA-HM130 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Dome | v | Two-way | v | |
ICA-HM135 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Vandal Proof Dome | v | Two-way | v | |
ICA-HM230 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel CMOS PT | v | Two-way | v | |
ICA-HM350 | MJPEG/MPEG4/H.264 | 5.0.1.3576 | H.264 MegaPixel Outdoor IR | -- | Two-way | v | |
ICA-M220 | MJPEG/MPEG4 | 1.19 | MegaPixel CMOS PT | v | Two-way | v | |
ICA-M220W | MJPEG/MPEG4 | 1.19 | 802.11n MegaPixel CMOS PT | v | Two-way | v | |
ICA-107 | MJPEG/MPEG4 | 1.37 | Wired CMOS | -- | Two-way | v | |
ICA-107P | MJPEG/MPEG4 | 1.37 | PoE CMOS | -- | Two-way | v | |
ICA-107W | MJPEG/MPEG4 | 1.37 | Wireless CMOS | -- | Two-way | v | |
ICA-108 | MJPEG/MPEG4 | 3.0.3.3597 | Wired IR | -- | Two-way | v | |
ICA-108W | MJPEG/MPEG4 | 3.0.3.3597 | Wireless IR | -- | Two-way | v | |
ICA-110 | MJPEG/MPEG4 | N/A | Wired | -- | Two-way | v | |
ICA-110W | MJPEG/MPEG4 | N/A | Wireless | -- | Two-way | v | |
ICA-120 | MJPEG/MPEG4 | 3.0.3.3597 | CMOS Boxed | -- | Two-way | v | |
ICA-150W | MJPEG/MPEG4 | N/A | Desktop Wireless | -- | Two-way | v | |
ICA-210W | MJPEG/MPEG4 | 1.0.0 build 39 | Wireless PT | v | Two-way | v | |
ICA-550W | MJPEG/MPEG4 | 1.0.02 | Desktop PT | v | Two-way | v | |
ICA-312 | MJPEG/MPEG4 | 3.0.3.3597 | 25 meter IR | -- | Two-way | v | |
ICA-350 | MJPEG/MPEG4 | 3.0.3.3597 | 30 meter Outdoor IR | -- | Two-way | v | |
ICA-501 | MJPEG/MPEG4 | 3.0.3.3597 | CCD PT | v | Two-way | v | |
ICA-510 | MJPEG/MPEG4 | 1.6.16.00 | Dual Mode CCD Dome | v | Two-way | v | |
ICA-525 | MJPEG/MPEG4 | 3.0.3.3597 | 20 meter IR Vandal Proof Dome | v | Two-way | v | |
ICA-530 | MJPEG/MPEG4 | 3.0.3.3597 | 15 meter IR Dome | v | Two-way | v | |
ICA-601 | MJPEG/MPEG4 | 3.0.3.3597 | Indoor Speed Dome | v | Two-way | v | |
IVS-110 | MJPEG/MPEG4 | 3.0.3.3597 | 1 Ch. Video Server | v | Two-way | v | |
IVS-H120 | MJPEG/MPEG4/H.264 | N/A | H.264 Video Server | v | Two-way | v | |
ICA-HM131 | MJPEG/H.264 | P20100602NS | Mini Dome | -- | One-way | x | |
ICA-HM131R | MJPEG/H.264 | P20100602NS | Mini Dome | -- | One-way | x | |
ICA-HM126 | MJPEG/H.264 | P20100602NS | Boxed | -- | One-way | x | |
ICA-HM126R | MJPEG/H.264 | P20100602NS | Boxed | -- | One-way | x | |
ICA-H652 | MJPEG/H.264 | P20100602NS | SpeedDome | v | One-way | x | |
HikVision | DS2CD862MF | MJPEG/H.264 | V2.0 build 100125 only | Box | -- | Two-way | x |
Dynacolor | V1-A | MJPEG/H.264 | 20100602NS | Mini Dome | -- | One-way | x |
V1-B | MJPEG/H.264 | 20100602NS | Mini Dome | -- | One-way | x | |
V6-A1270 | MJPEG/H.264 | 20100602NS | Boxed | -- | One-way | x | |
V6-B1270 | MJPEG/H.264 | 20100602NS | Boxed | -- | One-way | x | |
DH801e-S4 | MJPEG/H.264 | 20100602NS | SpeedDome | v | One-way | x | |
NH061 | MJPEG/MPEG4/H.264 | 20100602NS | Boxed | -- | One-way | x | |
Ovislink | WL-2000CAM | MJPEG/MPEG4 | LM.1.6.16.05 | Wireless Fixed | -- | Two-way | v |
POE-100CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Boxed | -- | Two-way | v | |
POE-200CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Dome | v | Two-way | v | |
OD-300CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Outdoor IR | -- | Two-way | v | |
POE-100CAMv2 | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Boxed | -- | Two-way | v | |
POE-200CAMv2 | MJPEG/MPEG4 | LM.1.6.16.05 | PoE Dome | v | Two-way | v | |
WL-2600CAM | MJPEG/MPEG4 | LM.1.6.16.05 | Wireless PoE IR PT | v | Two-way | v | |
POE-260CAM | MJPEG/MPEG4 | LM.1.6.16.05 | PoE IR PT | v | Two-way | v | |
WL-350HD | MJPEG/MPEG4/H.264 | MG.1.6.02 | Wireless Fixed | -- | Two-way | v | |
POE-200HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE IP Dome | v | Two-way | v | |
OD-600HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PTZ | v | Two-way | v | |
POE-250HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE IP Dome | v | Two-way | v | |
OD-325HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | IR Bullet | -- | Two-way | v | |
POE-100HD | MJPEG/MPEG4/H.264 | 5.0.2.3844 | PoE Boxed | -- | Two-way | v | |
Sanyo | VCC-HD2300 | MJPEG/H.264 | CAM MAIN Ver. 1.01-02 (100506-00) CAM SUB Ver. 1.00-00 (090910-00) NET MAIN Ver. 1.02-00 (100521-01) NET SUB Ver. 1.00-02 (100422-00) |
Box | -- | -- | x |
VCC-HD2500 | MJPEG/H.264 | Dome | v | Two way | x | ||
VCC-HD4600 | MJPEG/H.264 | Boxed | -- | Two way | x | ||
VDC-HD3300 | MJPEG/H.264 | Dome | -- | -- | x | ||
VDC-HD3500 | MJPEG/H.264 | Dome | -- | Two-way | x |
