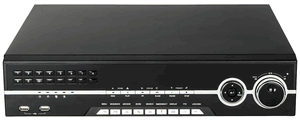

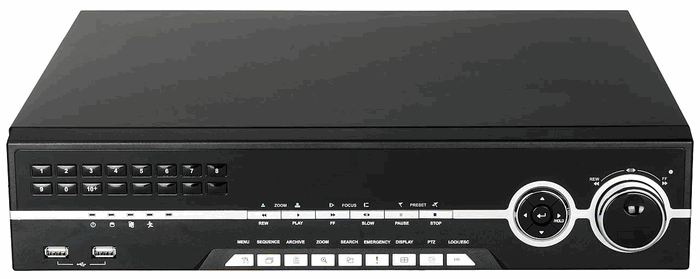

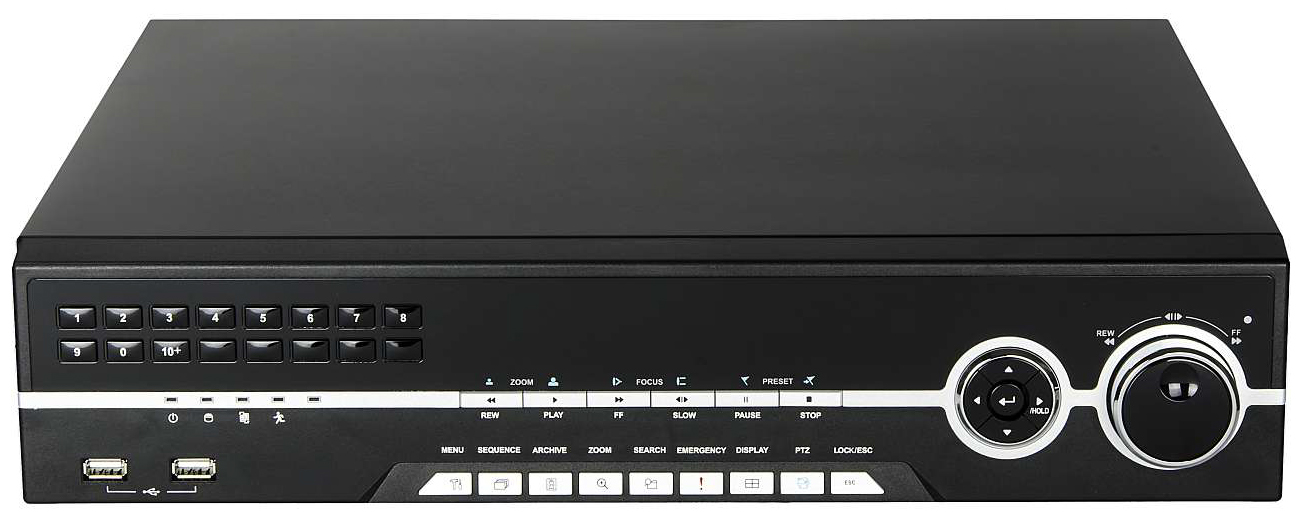

Home IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Network Video Recorders 4-128 Channel Telpix NVST-IP5832E-32 | NVR / 32CH up to 8MP(4K)@30 / 32 PoE / ONVIF / 120Mbps / 8 SATA + 1eSATA / 4K output
Telpix NVST-IP5832E-32 | NVR / 32CH up to 8MP(4K)@30 / 32 PoE / ONVIF / 120Mbps / 8 SATA + 1eSATA / 4K output
Telpix NVST-IP5832E-32|NVR / 32CH up to 8MP(4K)@30 / 32 PoE / ONVIF / 120Mbps / 8 SATA + 1eSATA / 4K output
- Full GUI with alpha blending
- Individual setting of resolution frame rates and picture quality
- Instant Replay
- Digital Zoom
- Mouse Control
- Weekly scheduler with holiday by 10 minutes setting
- Covert
- Disable and Private function of cameras
- Motion Detection with 576 area setting
- Relay alarm output
- PTZ control by RS-485
- Daylight Saving Time and Network Time Setting
- Multi User Authority
- Deinterlacer upon live and playback
- Multi languages with full graphic
- Individual Network port setting
- Auto Deletion
- Import and Export the configuration
- Interactive setup via network
- POS Interface
- Mirroring
Model | NVST-IP5832E-32 |
Camera input | 32 POE + 1 RJ45 |
IP Camera Spec | ONVIF 2.3, RTSP, H.264, dual stream |
IP Camera Num | 32 |
Output | 1 HDMI (Main Display or Programmable HD Spot) |
1 VGA (Main Display or Programmable HD Spot) | |
1 Composite (Programmable SPOT) | |
Audio input | 2 RCA |
Output | 1 RCA |
Sensor In | 16 (NC, NO selectable) |
Alarm out | 2 Relay, 14 TTL |
Operating System | Embedded Linux OS |
Speed | Real Time |
Resolution (Pixel) | 1280 × 1024, 1280 × 720, 1920 × 1080, 3840 × 2160(HDMI only) |
Split screen | 1,4,6,8,9,13,16,25,32 |
CODEC | H.264 |
Resolution (Pixel) / fps | main: upto 8MP @ 30 |
dual: upto 960 × 540 | |
Total Bitrate | 120Mbps |
Channel Bitrate | 3.75 Mbps |
Display | 1,4,6,8,9,13,16,25,32 |
Search mode | Calendar, Event ,POS , Panorama, Thumbnail |
Fast/Slow speed | Normal, REW & FF [recorded speed x2, x4, x8, x16, x32, x64, x1/2, x1/4], Frame to frame, Pause |
Backup device | External HDD, CD&DVD-RW, Network, Thumb Drive |
Network Interface | Gigabit Ethernet × 2 |
The number of HDD | 8 SATA + 1 eSATA(upto 8 bays, No capacity limit ; 6TB or more) |
Power Consumption | 280W (SMPS) |
Operating Temperature | 41°F ~ 104°F(5°C ~ 40°C) |
Relative Humidity | Maximum 80% non-condensing |
Dimension (W × D × H) | 430 × 420 × 88 |
