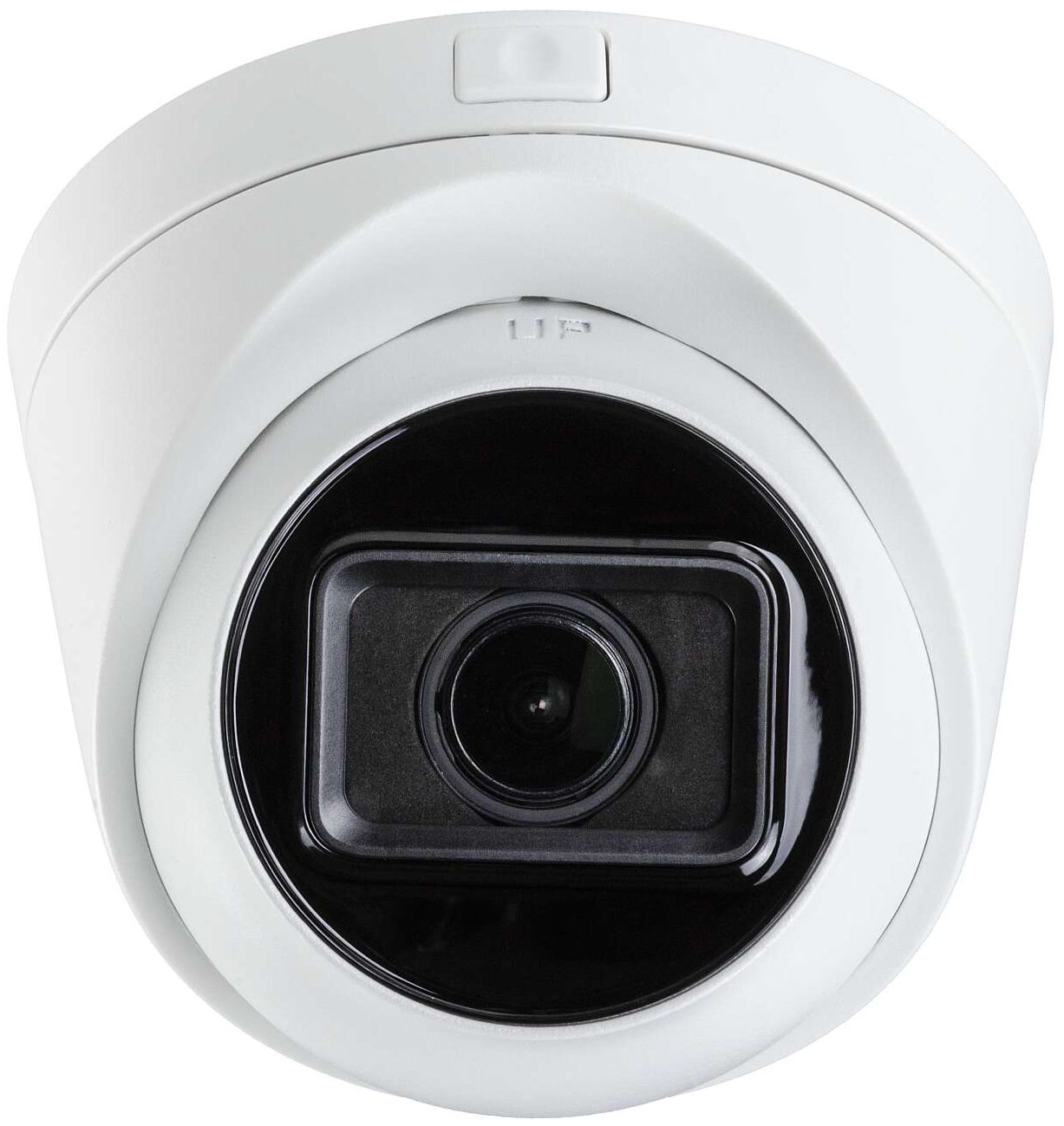

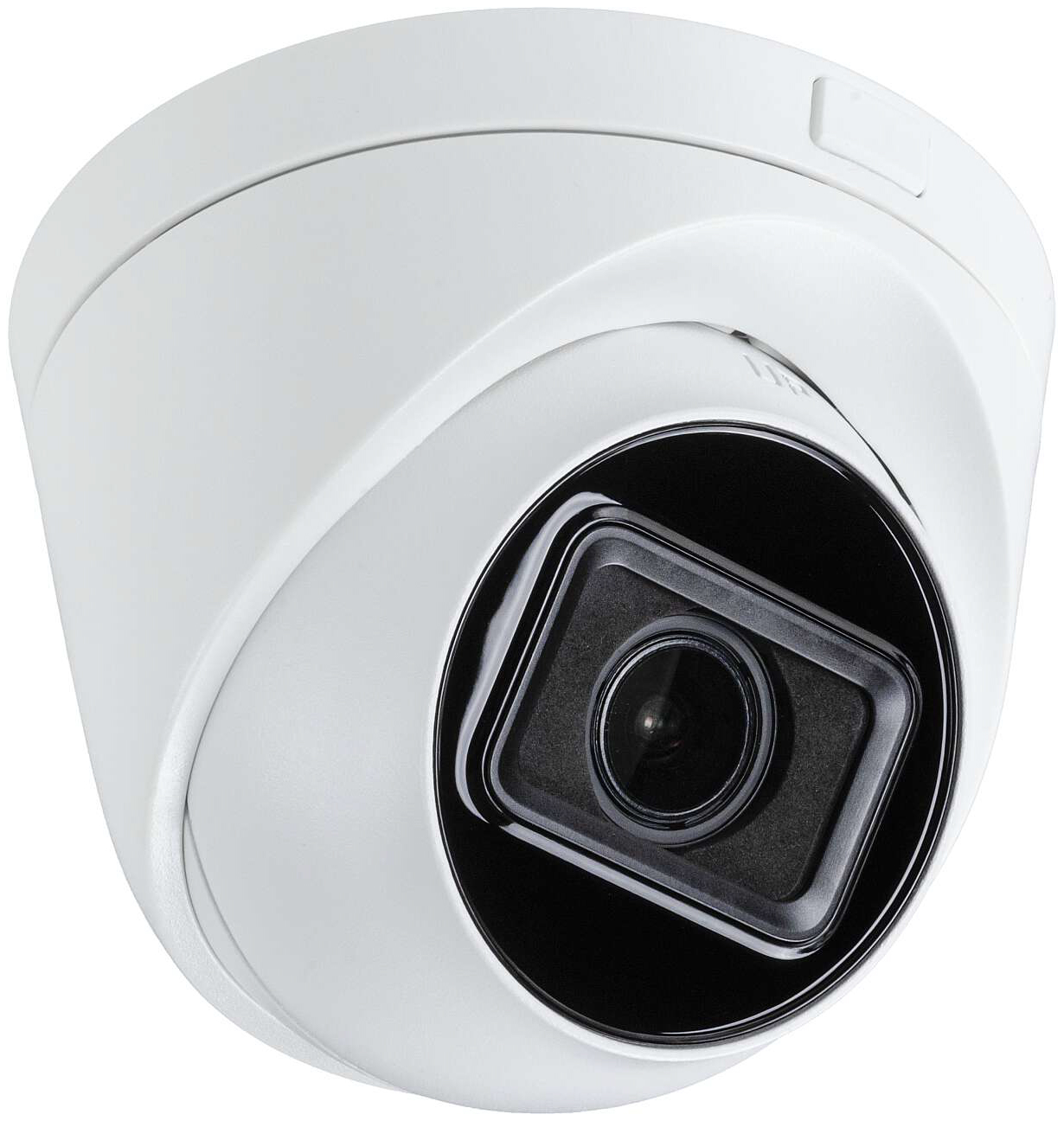

Magic NIU-G4132V-W 4MP Outdoor IR Turret Network Camera, H.265+, IP67, Metal Body, Vari-focal Lens, 100ft (30m) IR Range, 120dB True WDR, DC 12V or PoE

Additional View

Magic NIU-G4132V-W 4MP Outdoor IR Turret Network Camera, H.265+, IP67, Metal Body, Vari-focal Lens, 100ft (30m) IR Range, 120dB True WDR, DC 12V or PoE

Model	NIU-G4132V-W
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Yes
Auto-Iris	No
Day& Night	IR cut filter
Wide Dynamic Range	120 dB
Digital noise reduction	3D DNR
Angle Adjustment	Pan: 0� to 360�, tilt: 0� to 75�, rotate: 0� to 360�
Lens
Focal Length	2.8 mm to 12mm
Aperture	F1.6
Focus	No
FOV	Horizontal FOV: 92.8� to 29�, vertical FOV: 50.2� to 16.4�, diagonal FOV: 109� to 32.4�
Lens Mount	ø14
IR
IR Range	Up to 30 m
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265 / H.264 Sub stream: H.265 / H.264 / MJPEG
H.264 Type	Baseline Profile / Main Profile / High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Video bit rate	32Kbps ~ 8Mbps
Smart Feature-set
Region of Interest	1 fixed region for main stream and sub-stream
Max. Image Resolution	2560 � 1440
Main Stream Max. Frame Rate	50Hz: 20fps (2560 � 1440), 25fps (2304 � 1296, 1920 � 1280, 1280 � 720) 60Hz: 20fps (2560 � 1440), 30fps (2304 � 1296, 1920 � 1280, 1280 � 720)
Sub-stream Max. Frame Rate	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Image Enhancement	BLC, 3D DNR
Image Settings	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day / Night Switch	Auto, scheduled, day, night
Network
Network Storage	Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD error, HDD full
Alarm Trigger	Support built-in microSD / SDHC / SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version	5.5.52
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator, and User
Client	iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	-30�C ~ 60�C (-22�F ~ 140�F) Humidity 95% or less (non-condensing)
Power Supply	12 VDC � 25%, 5.5 mm coaxial power plug PoE (802.3af Class3)
Power Consumption and Current	12 VDC, 1 A, Max: 11 W; PoE (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, Max: 12.5 W
Ingress Protection	IP67
Material	Camera body: metal, bottom base: plastic
Dimensions	Camera: ø 129.4 � 116.4 mm (5.1" � 4.6") With package: � 170 � 150mm (6.7" � 5.9")
Weight	Camera: Approx. 560g (1.2 lb.) With package: Approx. 850 g (1.9 lb.)
