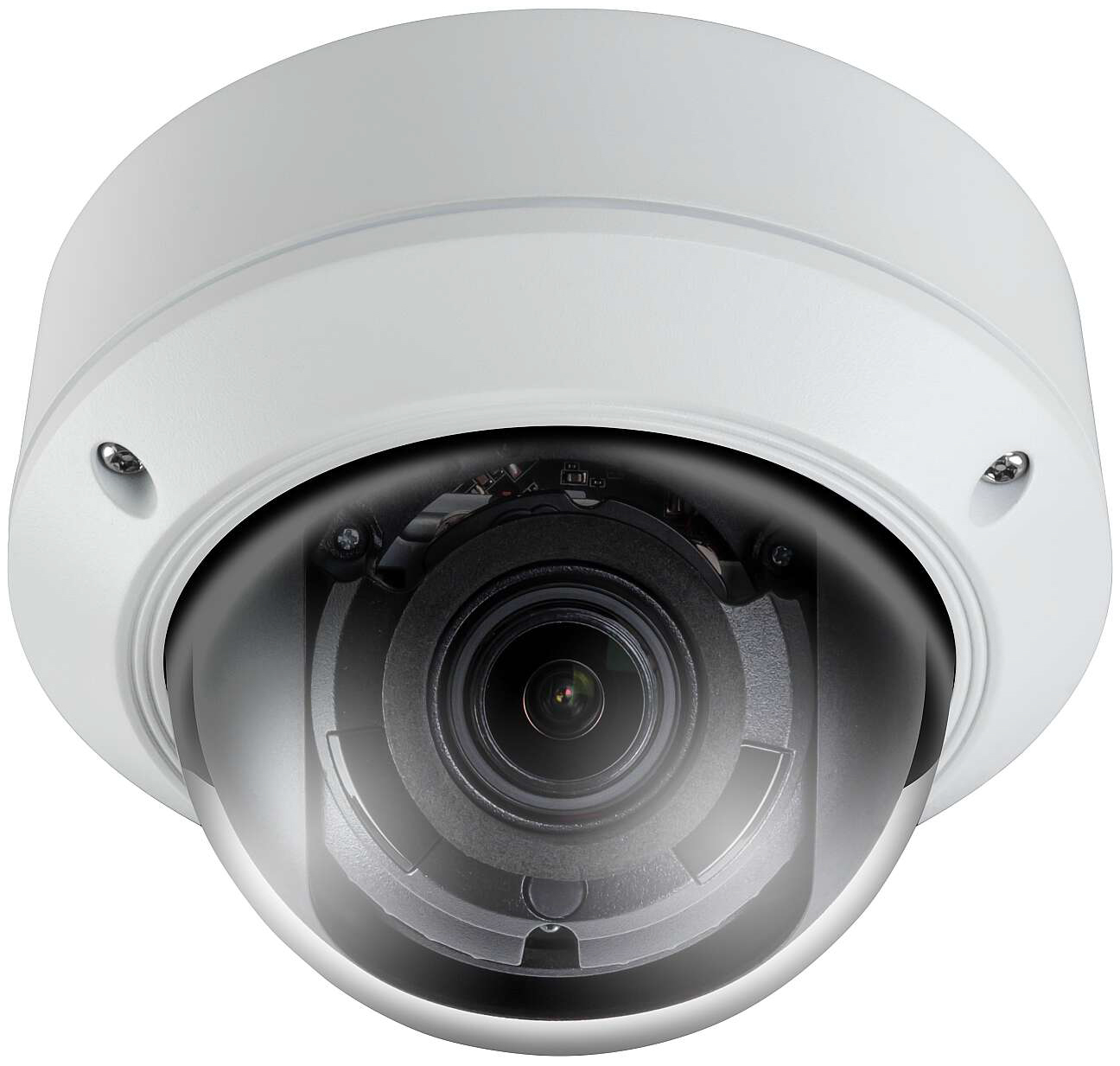

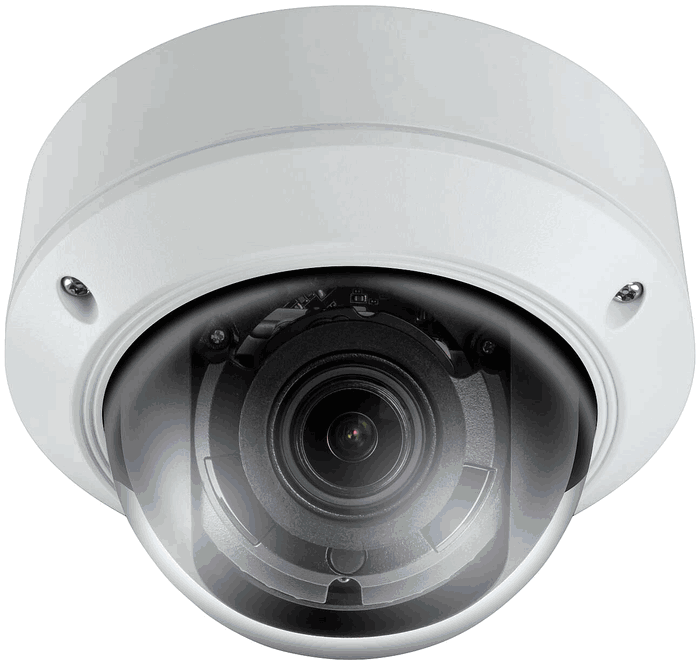

Magic NIT-GM4432V-W 4MP Outdoor IR Dome Network Camera, H.265+, IP67, Metal Body, Auto-Focus Motorized Vari-focal Lens, 100ft (30m) IR Range, 120dB True WDR, DC 12V or PoE, Vandal-Resistant

Outdoor IR Fixed Dome Camera provides high definition network output. It supports H.265+ video compression technology, which assures savings in bandwidth and storage.

The camera has an EXIR 2.0 range of up to 100 feet (30 meters).

The 2.8 mm and 4 mm lens options are optimized for viewing angles that fit any situation.

Model	NIT-GM4432V-W
Camera
Image Sensor	1/3" Progressive Scan CMOS
Min. Illumination	Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
Shutter time	1/3 s to 1/100, 000 s, support slow shutter
Slow shutter	Yes
Auto-Iris	No
Day / Night	IR cut filter
Digital Noise Reduction	3D DNR
WDR	120dB
Adjustment Range	Pan: 0� to 355�, tilt: 0� to 75�, rotate: 0� to 360�
Lens
Focal Length	2.8 to 12 mm
Aperture	F1.6
Focus	Auto
FOV	Horizontal field of view: 98� to 28� Vertical field of view: 51� to 16� Diagonal field of view: 115� to 32�
Lens Mount	M14
IR
IR Range	Up to 100 ft (30 m)
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main profile
H.265+	Main stream supports
Video Bit Rate	32 Kbps to 8 Mbps
Smart Features-set
Region of Interest	1 fixed region for main stream and sub-stream
Maximum Resolution	2560 � 1440
Main Stream	50Hz: 20fps (2560 � 1440), 25fps (2304 � 1296, 1920 � 1080, 1280 � 720) 60Hz: 20fps (2560 � 1440), 30fps (2304 � 1296, 1920 � 1080, 1280 � 720)
Sub-Stream	30 fps (640 � 480, 640 � 360, 320 � 240)
Third Stream	50Hz: 25fps (640 � 480, 640 � 360, 320 � 240) 60Hz: 30fps (640 � 480, 640 � 360, 320 � 240)
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night Switch	Auto, scheduled
Network
Network Storage	Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version	5.5.3
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User / Host	Up to 32 users; three levels: administrator, operator, and user
Client	iVMS-4200, Hik-Connect, iVMS-5200
Web Browser	IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface	1-port RJ-45 10M/100M self-adaptive Ethernet port
Reset Button	Yes
General
Operating Conditions	-30 �C to 50 �C (-22 �F to 122 �F), humidity: 95% or less (non-condensing)
Power Supply	12 VDC � 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption and Current	12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W
Protection Level	IP67, IK10, TVS 2000V lightning protection, surge protection and voltage transient protection
Material	Body: metal, bubble: plastic
Dimensions	Camera: Φ 141 mm � 99.9 mm (5.6" � 3.9") With package: 140 mm � 140 mm � 154 mm (5.5" � 5.5" � 6.1")
Weight	Camera: approx. 820 g (1.8 lb.) With package: approx. 1200 g (2.6 lb.)
