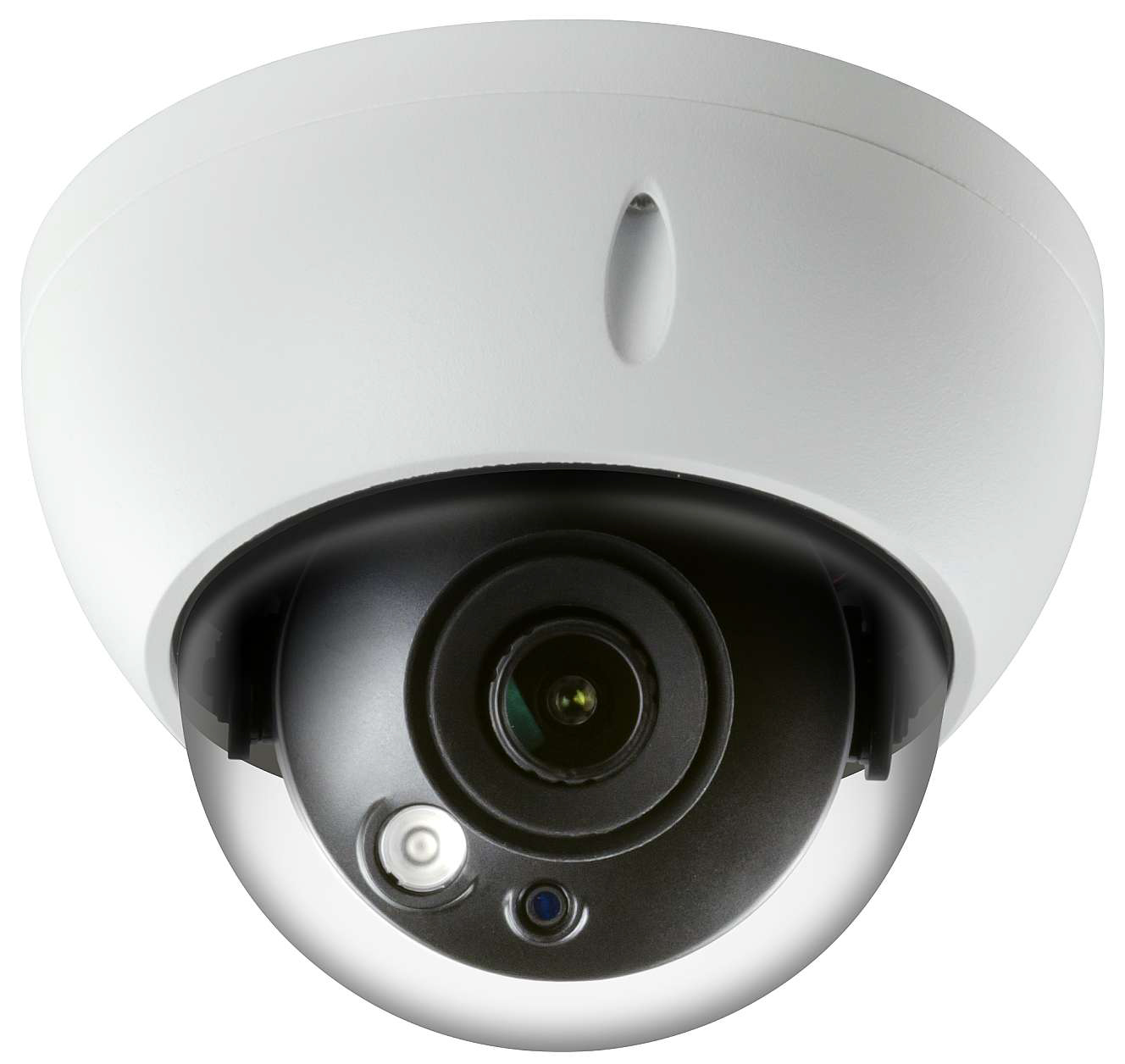

Eyemax NIT-E8032 | 4K(8MP) H.265+ Outdoor IR Dome Network Camera, Starlight, True-WDR, Fixed Lens, UL-Listed, IR Range up to 98ft, IP67, IK10, PoE or DC 12V

Model	NIT-E8032
Camera
Image Sensor	1/2" 8Megapixel progressive CMOS
Effective Pixels	3840(H) � 2160(V)
RAM/ROM	512MB / 128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3 ~ 1/100,000s
Minimum Illumination	0.003Lux / F1.6 (Color, 1/3s, 30IRE) 0.02Lux / F1.6 (Color, 1/30s, 30IRE) 0Lux / F1.6 (IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/Manual
IR LEDs	1
Lens
Lens Type	Motorized
Mount Type	Board-in
Focal Length	2.8 / 4mm
Max. Aperture	F1.6
Angle of View	H: 110.5� (2.8mm) / 87� (4mm)
Focus Control	Fixed
Close Focus Distance	2.8mm: 0.5m (19.69in) 4.0mm: 1.5m (4.9ft)
Dori Distance
2.8mm	Detect: 42m(138ft) Observe: 17m(56ft) Recognize: 8m(26ft) Identify: 4m(13ft)
4mm	Detect: 104m(341ft) Observe: 42m(138ft) Recognize: 21m(69ft) Identify: 10m(33ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0� ~ 355� ;Tilt:0� ~ 75� ;Rotation:0� ~ 355�
Intelligence
Event Trigger	Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS	Tripwire, Intrusion
Video
Compression	H.265 / H.264H / MJPEG(Sub Stream)
Smart Codec	Support H.265+ / H.264+
Streaming Capability	2 Streams
Resolution	4K(3840 � 2160) � 6M(3072 � 2048) � 5M(2560 � 1920) � 3M(2048 � 1536) � 3M(2304 � 1296) � 1080P(1920 � 1080) � 1.3M(1280 � 960) � 720P(1280 � 720) � D1(704 � 576 � 704 � 480) � VGA(640 � 480) � CIF(352 � 288 � 352 � 240)
Frame Rate
Frame Rate	Main Stream: 4K (1 ~ 25/30fps), Sub Stream: D1(25/30Fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32Kbps~8192Kbps H.265: 16Kbps~8192Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR(120dB)
White Balance	Auto / Natural / Street Lamp / Outhoor / Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Digital Zoom	16x
Flip	0� / 90� / 180� / 270�
Mirror	Off/On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability	ONVIF Profile S&G, API
Streaming Method	Unicast / Multicast
Max. User Access	10 Users / 20 Users
Edge Storage	NAS, Local PC for instant recording, Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, DMSS
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL: UL60950 ~ 1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V PoE (802.3af)(Class 0)
Power Consumption	<8.9W
Environmental
Operating Conditions	-30� C ~ +60� C (-22� F ~ +140� F) / Less than 95% RH
Storage Conditions	-30� C ~ +60� C (-22� F ~ +140� F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	�122mm � 88.9mm(4.80"x3.50")
Net Weight	0.45Kg (1.0lb)
Gross Weight	0.60Kg(1.33lb)
