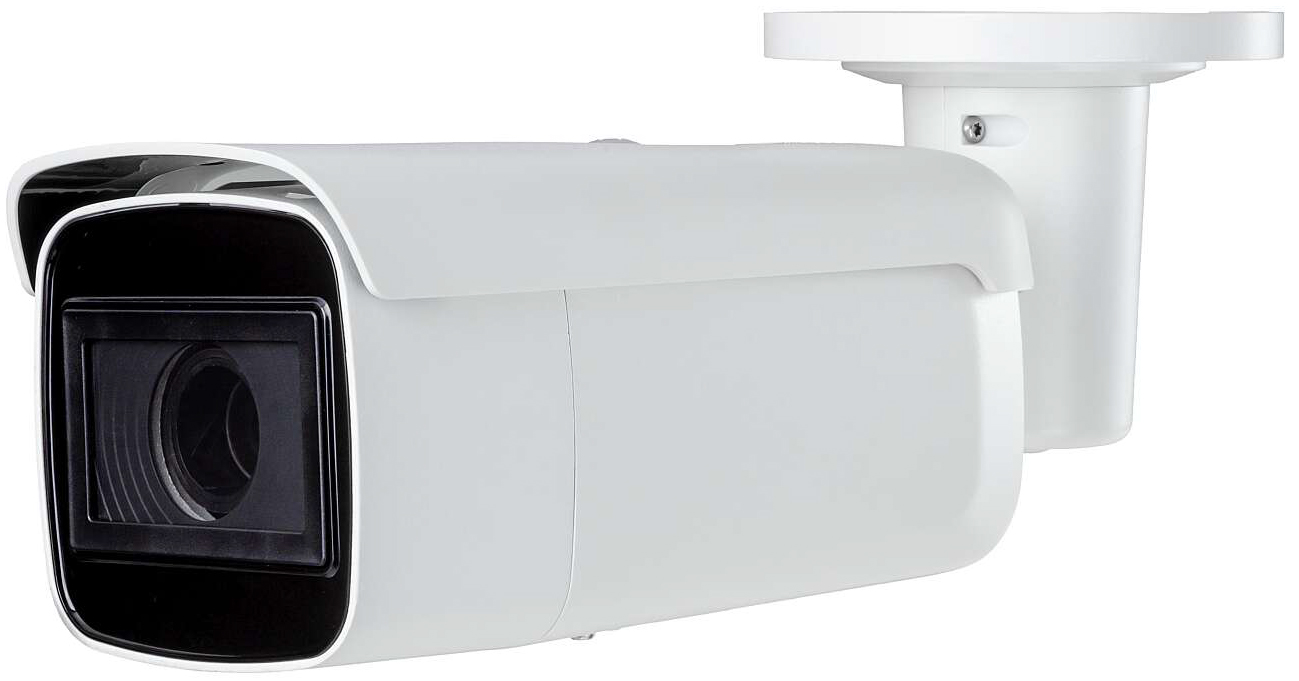

Magic NIR-GM8752V-W 8MP (4K) 4-in-1 Outdoor IR Bullet Network Camera, H.265+, IP67, Metal Body, Auto Focus Motorized Vari-focal Lens, 165ft (50m) IR Range, 120dB True WDR, DC 12V or PoE

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

New Arrivals

Magic NIR-GM8752V-W 8MP (4K) 4-in-1 Outdoor IR Bullet Network Camera, H.265+, IP67, Metal Body, Auto Focus Motorized Vari-focal Lens, 165ft (50m) IR Range, 120dB True WDR, DC 12V or PoE

Outdoor IR Varifocal Bullet Camera provides high definition network output. It supports H.265+ video compression, which assures savings in bandwidth and storage.

The camera is equipped with a 2.8 to 12 mm motorized varifocal lens, and offers an IR range of up to 165 ft (50 m).

Smart features, such as line crossing and intrustion detection are supported.

Model	NIR-GM8752V-W
Camera
Image Sensor	1/2.5" Progressive Scan CMOS
Min. Illumination	Color: 0.01 lux @ (f/1.2, AGC on), 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR
Shutter time	1/3 s to 1/100,000 s
Slow shutter	Yes
Auto-Iris	No
Day / Night	IR Cut Filter
Digital Noise Reduction	3D DNR
WDR	120dB
Adjustment Range	Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 355°
Lens
Focal Length	2.8 to 12 mm motorized varifocal lens
Lens Type	Motorized
Aperture	f/1.6
Focus	Auto
FOV	Horizontal FOV: 105° to 34.5°, vertical FOV: 55° to 19°, diagonal FOV: 125° to 40°
Lens Mount	Φ14
IR
IR Range	Up to 165 ft (50 m)
Wavelength	850 nm
Compression Standard
Video Compression	Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264
H.264 Type	Main profile/high profile
H.264+	Main stream support
H.265 Type	Main profile
H.265+	Main stream support
Video Bit Rate	32 Kbps to 16 Mbps
Smart Features
Behavior Analysis	Line crossing detection, intrusion detection
Exception Detection	Yes
Region of Interest	One fixed region for main stream and sub-stream
Maximum Resolution	3840 × 2160
Main Stream	15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream	30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	30 fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Target Cropping	No
Day/Night Switch	Day/night/auto/schedule/triggered by alarm in
Network
Network Storage	MicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect
Web Browser	Plug-in required live view: IE 8+, Chrome 41.0 to 44, Firefox 30.0 to 51, Safari 8.0 to 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Audio	1 input (line in), 1 output (line out), mono sound, terminal block
Communication Interface	1-port RJ45 10M/100M self-adaptive Ethernet port
Alarm	1 input, 1 output (maximum 12 VDC, 30 mA), terminal block
Video Output	1 Vp-p composite output(75 Ω/BNC)
On-Board Storage	Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC	H.264 and H.265 encoding
Reset Button	Yes
Audio
Environment Noise Filtering	Yes
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate	64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2)
General
Operating Conditions	-22° F to 140° F (-30° C to 60° C); humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug, PoE (802.3at, class 4)
Power Consumption and Current	12 VDC, 1.2 A, maximum 14.5 W, PoE (802.3at, 42.5 V to 57 V), 0.5 A to 0.3 A, maximum 18 W
Protection Level	IP67
Material	Metal
Dimensions	Φ 4.1" x 11.7" (Φ 105.1 mm x 297.5 mm)
Weight	2.90 lbs (1.335 kg)
