Home IP Cameras and Network Video Recorders NVRs Truon IP Cameras and NVR Truon NIP-B20H20 1080p IP Outdoor IR PTZ Camera w X20 Optical Zoom

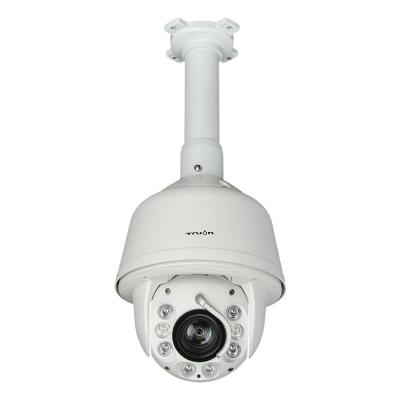

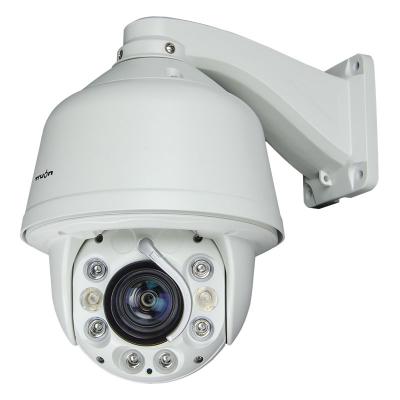

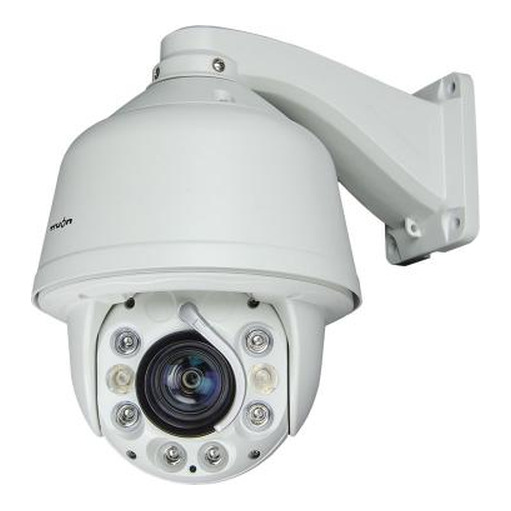

Truon NIP-B20H20 1080p IP Outdoor IR PTZ Camera w X20 Optical Zoom
Truon NIP-B20H20 1080p IP Outdoor IR PTZ Camera w X20 Optical Zoom
- 4.7mm ~ 94.0mm(20×)optical zoom
- H.264 dual-stream video compression
- Max 25/30fps@1080p resolution
- WDR(DWDR), Day/Night(ICR), DNR (2D&3D), Auto iris, Auto focus, AWB, AGC, BLC
- Support P2P penetration, Mobile phone push alarm function
- Multiple network monitoring: Web viewer, CMS & Mobile
- Max 240°/s pan speed, 360° endless pan rotation
- Up to 255 presets, 8 auto scan, 8 tour, 4 pattern
- IR LEDs up to 120m
- With aluminum wiper, Avoid dust, ensure that the image is clear
- IP 66, -35~55°C, DC12V
Model | NIP-B20H20 |
Camera | |
Image Sensor | 1/2.9" 2.0 Megapixel Sony CMOS |
Effective Pixels | 1920(H)?1080(V) |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual, 1/100~1/200,000s |
Min. Illumination | 0.5 Lux (F1.6, 50 IRE, ICR OFF), 0.095 Lux(F1.6, 50 IRE, ICR ON) |
Camera Features | |
Day/Night | Auto(ICR) / Color / B/W |
Backlight Compensation | Auto |
WDR | Support |
White Balance | Auto |
Gain Control | Auto/Manual |
Noise Reduction | 2D/3D |
Privacy Masking | Up to 5 areas |
Lens | |
Focal Length | 4.7mm ~ 94.0mm(20? Optical zoom) |
Max Aperture | F1.6 ~ F3.5 |
Focus Control | Auto / Manual |
Iris control | Auto / Manual |
Angle of View | H: 55.2?~3.2? |
PTZ | |
Pan/Tilt Range | Pan: 0? ~ 360? endless; Tilt: -5? ~ 90?, auto flip 180? |
Manual Control Speed | Pan: 0.01? ~120? /s; Tilt: 0.01? ~100? /s |
Preset Speed | Pan: 240? /s; Tilt: 200? /s |
Protocol | PELCO_P, PELCO_D |
Preset point | 256PCS |
Cruise scan | 8 groups, 32pcs preset each group |
Auto scan | 8 groups, Left and right boundary can be set, the scanning speed can be set |
Pattern scan | 4PCS, Max 500pcs order or 30mins each group |
Wiper function | Support |
Video | |
Compression | H.264 |
Resolution | 1080P(1920?1080) / 720P(1280?720) / SVGA(800?600) |
Frame Rate | Main Stream : 1080P/ 720P / SVGA (1 ~ 25/30fps) Sub Stream : D1 / CIF / QCIF (1 ~ 25/30fps) |
Bit Rate | 16K ~ 8192Kbps |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP |
ONVIF | ONVIF Ver. 2.0 |
Max. User Access | 10 users |
Smart Phone | iPhone, iPad, Android |
General | |
Power Supply | DC12V, 3A |
Power Consumption | <50W |
Working Environment | -35?C~+55?C, 10%~85% |
Dimensions | (W)210?(H)304mm / (W)8.2?11.9(H)inch |
