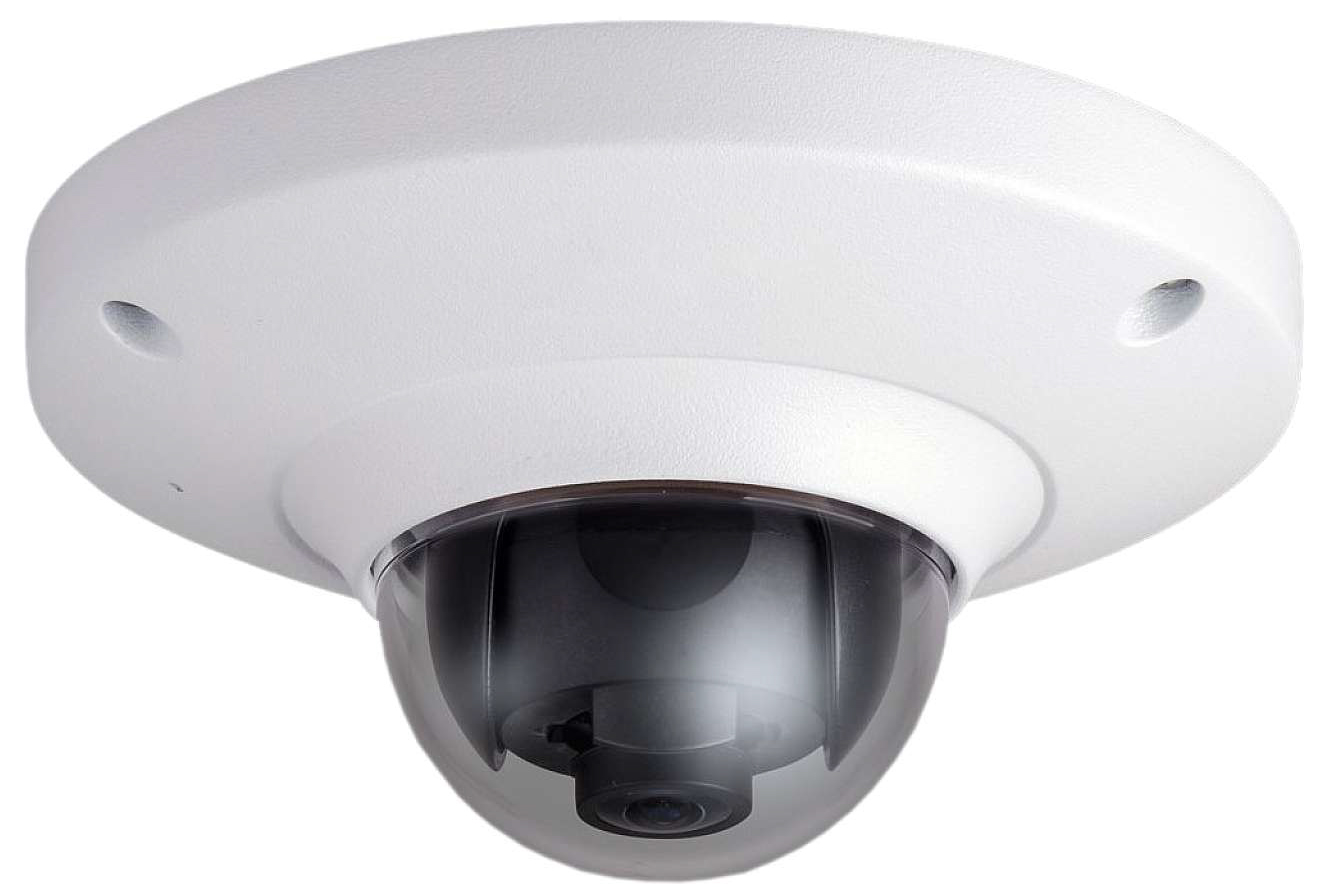

Eyemax NIF-E502-W | 5MP H.265+ Outdoor Fisheye Camera, True-WDR, 1.4mm Fixed Lens, Built-in Mic, UL-Listed, IP67, IK10, PoE or DC 12V

Model	NIF-E502-W
Camera
Image Sensor	1/2.7" 5 Megapixel progressive scan CMOS
Effective Pixels	2592(H) � 1944(V)
RAM/ROM	512MB / 32MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4) ~ 1/100,000s
Minimum Illumination	0.02Lux / F1.6 (Color, 1/3s, 30IRE) 0.2Lux / F1.6 (Color, 1/30s, 30IRE) 0.05Lux / F1.6 (B/W, 1/3s, 30IRE) 0.5Lux / 1.6 (B/W, 1/30s, 30IRE)
S/N Ratio	More than 50dB
IR Distance	N/A
IR On/Off Control	N/A
IR LEDs	N/A
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	1.4mm
Max. Aperture	F1.6
Angle of View	H: 180�, V: 180�
Optical Zoom	N/A
Focus Control	Fixed
Close Focus Distance	N/A
Dori Distance
1.4mm	Detect: 28m(92ft) Observe: 11m(36ft) Recognize: 6m(20ft) identify: 3m(10ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan: 0� ~ 355� / Tilt: 0� ~ 75� / Rotation:0� ~ 360�
Intelligence
Advanced Intelligent Functions	Tripwire, Intrusion, Heat map
Video
Compression	H.265+ / H.265 / H.264+ / H.264
Streaming Capability	5M(2592 � 1944) � 3M(2048 � 1536) � UXGA(1600 � 1200) � 1.3M(1280 � 960) � D1(704 � 576 � 704 � 480) � CIF(352 � 288 � 352 � 240)
Frame Rate	Main Stream: 5M(1 ~ 25fps) Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control	CBR / VBR
Bit Rate	H.264: 24 ~ 10240Kbps H.265: 14 ~ 9984Kbps
Day/Night	Electronic
BLC Mode	BLC / HLC / WDR
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	N/A
Defog	N/A
Digital Zoom	16x
Flip	N/A
Mirror	Off/On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a / G.711Mu / AAC / G.726
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users / 20 Users
Edge Storage	NAS Local PC for instant recording Mirco SD card supports up to 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950 ~ 1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	Built-in Mic
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V, PoE (802.3af)(Class 0)
Power Consumption	<3.4W
Environmental
Operating Conditions	-30� C ~ +60� C (-22� F ~ +140� F) / Less than 95% RH
Storage Conditions	-30� C ~ +60� C (-22� F ~ +140� F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK08
Construction
Casing	Metal
Dimensions	F110mm � 56mm (4.33" � 2.2")
Net Weight	0.38Kg (0.84lb)
Gross Weight	0.44Kg (0.97lb)
