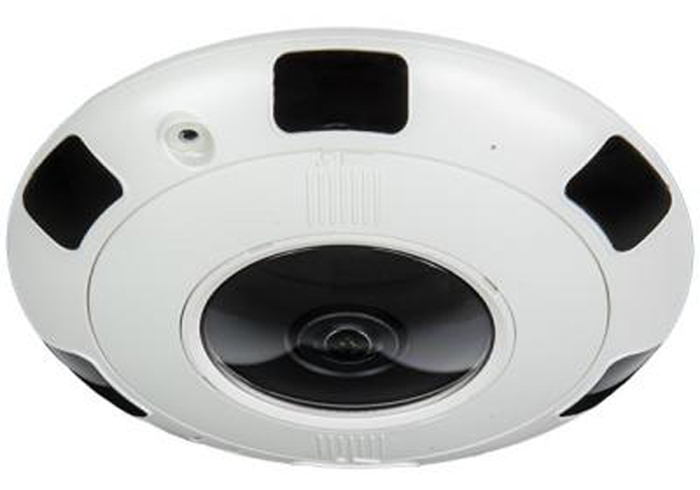

IP Power NIF-A602F 6 MegaPixel IP Fisheye Network Camera
Fish-Eye camera provides an easier solution to cover a wide area, which could otherwise require the use of multiple cameras.
- 360° De-Warp: Having the powerful Majestic solution de-warping the image to give an all angle view from single 2048x1024 pixel stream in real-time.
- Wall-Mount: With 180° view, we also can deliver from a e-PTZ or ROI (Region Of Interest) Panoramic wall stream @ 2048 x 1024 pixels
- Real-Time: Majestic fish-eye powerful solution gives you the full 25/30fps from camera no matter what orientation or resolution you are looking to use i.e. 360 or 180.
- Panoramic views from ceiling mount or wall mount with ePTZ
- De-warp on camera, using a 6th Gen 12 Mega pixel lens for the highest crisp images
- 100dB WDR / Advanced Noise Reduction
- 6 pcs High Powered Super Flux IR LEDs
Model | NIF-A602F |
CAMERA | |
Light Sensitivity | 0.01 Lux B/W (0 Lux IR LED On) |
Day / Night | True Day / Night with ICR Filter ADC light level to allow user defined day/night switch |
Fish-eye Lens | 12 Mega pixel 6th Gen. f1.6mm F=2.0 360° |
IR LED | 6pc High Powered Super Flux LED 850nm |
IR Distance | 20 Meters (66 feet) |
Video Output | Setup / Service BNC Video supported internal connector with dangle cable supplied |
Electronic Shutter | Auto / User 1/5-1/10,000 ; 50/60Hz software selectable |
Memory Card | Micro SDXC Max 2TB |
Signal / Noise | 60dB |
Resolution | Max 3072 x 2048 @ 30fps |
VIDEO | |
Compression | H-264 High/Main/Base Profile. Stream1 H-264, or MJPEG |
Streaming | De-Warp Panorama stream of 2048x1024 pixels Fish-eye stream of 2048x2048 |
Quality Setting (VBR) | 1 - 9 (9 Highest) |
I Frame | User selection value |
ePTZ | Set position of the de-warp stream origin. 0-360 for fisheye, and 0-180 for wall mount |
Gain Control | Auto / Fixed 8~102db |
Orientation | Horizontal Mirror / Vertical Flip |
Text Overlay | Time / Date / Camera / Custom OSD |
Masking | User defined masking areas, area follow ePTZ area |
NETWORK | |
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
TCP/IP | IPv4 / IPv6 (DHCP / Fixed) |
Compliance | Onvif v2.42 Profile-S Listed |
RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled) |
Web Language | English, Chinese, Russian, Polish |
Recording Simultaneous. | Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection |
Network Protocols: | HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPPoE, NTP. Unicast and Multicast supported.Video streaming from SDK & NVMS / NVR software or 3rd party applications.User Ports setting for Web port, RTSP Port, and SDK Control Port and Alarm Port. |
AUDIO | |
Input / Output | Optional Microphone: 1 x RCA Input / 1 x RCA Output@ 1V Line Level |
Audio Compression | G711 A-Law, G711 U-Law, RAW_PCM |
GENERAL | |
Power Input | 12V DC Terminal / PoE 802.3af |
Power Consumption | 5W / Max 8W(LED On) PoE Class3 |
Temperature | -4°F to 131°F (-20°C to 55°C) |
Operating Humidity | 10% - 85% RH |
Approvals | CE / FCC / RoHS Compliant / IP66 / IK10 |
Product Dimensions | 162 x 50.8 mm (6.37” x 2”) |
Product Weight | 0.3kg / 0.66lb |
Mounting | Wall & Ceiling Mountable |
