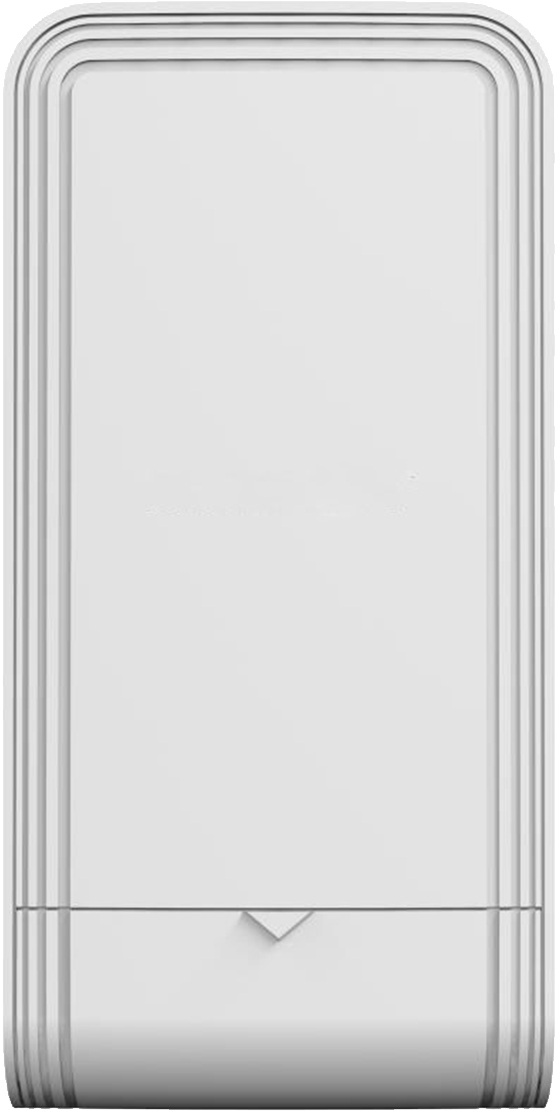

LTS LTWB-5AC-12 Wireless Bridge

Model	LTWB-5AC-12
Wireless Parameter
Max. Transmission Rate of Air Interface	≤ 867 Mbps
Wireless Standard	IEEE 802.11/a/n/ac
Working Frequency Band	5180 to 5240 MHz 5260 to 5320 MHz (DFS) 5500 to 5700 MHz (DFS) 5745 to 5825 MHz (Note: Available channel may vary with local regulations.)
Transmitting Power	22 dBm (Note: Transmitting power may vary with local regulations.)
Receiving Sensitivity	-58 ± 2 dBm@AC80 -MCS9; -84 ± 2 dBm@AC80 -MCS0
Antenna Gain	9 dBi
Antenna Angle	Beamwidth [3dB] (35°± 5°)
Networking Mode	Point-to-Point, Point-to-Multipoints (less than 4 points recommended)
Hardware Parameter
Port Numbers	2 x Gigabit RJ45 ports
LED Indicator	Power indicator, LAN indicator, signal intensity indicator
Reset	Hardware resetting button
Power Supply	12 VDC/1 A Passive PoE; 12 VDC, 1 A
Software Function
Application Function	TDMA, DFS, TPC
Channel Width	20/40/80 MHz
Channel Selection	Auto/manual selection
Network Protocol	NTP (network time synchronization), IP Portal (auto search for IP address), HTTPS (web management), SSH (debugging)
Security Mode	WPA2-PSK
Security Mechanism	Wireless network name hidden
Management Method	Web, NVMS V3
Upgrade	Web, NVMS V3
System Log	Syslog, control center information
General
Product Dimensions	92 mm x 187 mm x 58 mm (3.62" x 7.36" x 2.28")
Package Dimensions	132 mm x 228 mm x 91 mm (5.19" x 8.97" x 3.58")
Net Weight	0.307 kg (0.677 lb)
Gross Weight	0.807 kg (1.779 lb)
Packing List	Wireless bridge x 1, power adapter (12 VDC, 1 A) x 1, 100 MB PoE injector x 1, binding tape x 2, quick start guide x 1
Packing Method	Single unit packing
Working Temperature	-30°C to 70°C (-22°F to 158°F)
Working Humidity	5% to 95% (no condensation)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Storage Humidity	5% to 95% (no condensation)
Installation Mode	Pole mounting
Max. Power Consumption	4.5 W (for normal); 2.64 W~ 2.75 W (with 1 channel 2 M stream IPC); 2.67 W~ 2.75 W (with 1 channel 4 M stream IPC); 2.75 W~ 2.9 W (with 1 channel 8 M stream IPC)
Approval
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (AS/NZS CISPR 32: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
Radio	EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247; FCC Part 15.407; FCC 2.1091
