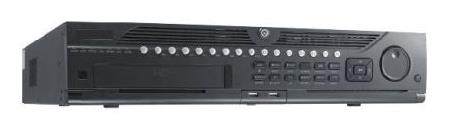

LTS LTN9664-R 64CH 200Mbps up to 5 Megapixel Recording 1080p RAID NVR
64CH 1080P NVR, Third-party network cameras supported, 1920×1080P resolution real-time recording, HDMI and VGA output at up to 1920×1080P resolution, 16-ch simultaneous playback, HDD quota and group management.RAID 0,1,5,10 supported.
Product Features
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- Up to 8 SATA interfaces
- HDD quota and group management
- Dual gigabit network interfaces
- RAID 0,1,5,10 supported
Model | LTN9664-R |
System | |
Compression Format | H.264 |
OS | Embedded Linux |
Video/ Audio Output | |
IP Video Input | 64-ch, Max 200Mbps Input |
VGA Output | 1-ch, resolution: 1920?1080P/60Hz, 1600?1200/60Hz, 1280?1024/60Hz, 1280?720/60Hz, 1024?768/60Hz |
CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω) |
HDMI Output | 1-ch, resolution: 1920 ? 1080P /60Hz, 1920 ? 1080P /50Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz, 1280 ? 720/60Hz, 1024 ? 768 /60Hz |
Recording Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF |
Simultaneous Playback | 64-ch |
Playback Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF |
Dual Stream | Main and Sub-Streams |
Audio Input | 1-ch BNC |
Audio Output | 1-ch BNC |
Backup Format | MP4 |
Storage | |
SATA | 8 SATA Interfaces for 8HDDs |
e-SATA | 1 eSATA Interface |
Capacity | Up to 4TB capacity for each disk |
Array type | RAID 0,1,5,10 supported |
Number of array | 4 |
Number of virtual disk | 8 |
External Interface | |
Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet |
USB Interface | 3?USB 2.0 Interfaces |
Serial Interface | 1 RS-485, 1xRS-232 |
Alarm Input: | 16 |
Alarm Output | 4 |
General | |
Mobile App | NVMS7000 for iPhone/iPad/Android |
Power Supply | 100 ~240VAC |
Consumption | ≤ 45 W (without hard disk) |
Working Temperature | -10 ?C ~ 55 ?C |
Humidity | 10%~90% |
Chassis | 19-ich rack-mounted 1U chassis |
Dimensions | 445 ? 470 ?90 mm (17.52" ?18.5"? 3.54") |
Weight | ≤ 8 Kg (17.64 lb) ( without hard disk or DVD-R/W ) |
