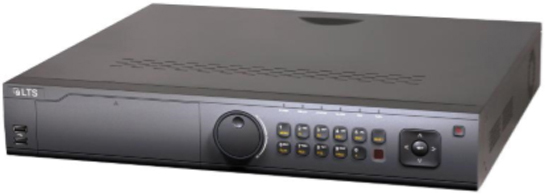

LTS LTN8932D-P16 Platinum Enterprise Level 32 Channel Deep Learning NVR
LTS LTN8932D-P16 Platinum Enterprise Level 32 Channel Deep Learning NVR
- Up to 32-ch 12 MP IP cameras can be connected
- Deep Learning Support: 4CH Human/Vehicle Detection
- Connectable to the third-party network cameras Compression and Recording
- H.265+ compression effectively reduces the storage space and costs by up to 75%
- Full channel recording at up to 12 MP resolution HD Video Output
- HDMI/VGA output provided
- HDMI video output at up to 4K (3840 × 2160) resolution Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 12-ch synchronous playback at up to 1080p resolution
- Normal/Important/Custom video playback
- Important files management
- HDD health monitoring
Model | LTN8932D-P16 |
Video/Audio input | |
IP video input | 32-ch |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Network | |
Incoming/Outgoing bandwidth | 256 Mbps/200 Mbps |
Video/Audio output | |
Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
CVBS output (Optional) | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 480 |
HDMI/VGA resolution (as main port) | 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz 4K resolution is only available for HDMI. |
HDMI/VGA resolution (as aux port) | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Decoding | |
Decoding format | H.265/H.265+/H.264/H.264+/MPEG4 |
Synchronous playback | 16-ch |
Capability | 12-ch @ 1080p |
Smart analysis | |
Capability | False alarm filtering for 4-ch behavior (line crossing and intrusion) detection for 2 MP, 3 MP, and 4 MP network camera |
Hard disk | |
SATA | 4 SATA interfaces for four 3.5-inch HDDs |
Capacity | Up to 8 TB capacity for each HDD |
eSATA | 1 eSATA interface |
External interface | |
Network interface | 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Serial interface | RS-485 (half-duplex), RS-232, Keyboard |
USB interface | Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
Alarm in/out | 16/4 |
PoE interface | |
Interface | 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 200W |
Supported standard | IEEE 802.3 af/at |
General | |
Power supply | 100 to 240 VAC |
Power | ≤ 300 W |
Consumption (without HDD) | ≤ 30 W |
Working temperature | -10℃ to +55℃ (+14℉ to +131℉) |
Working humidity | 10 to 90 % |
Chassis | 1.5U chassis |
Dimensions (W × D × H) | 445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
Weight (without HDD) | ≤ 5 kg (11 lb) |
