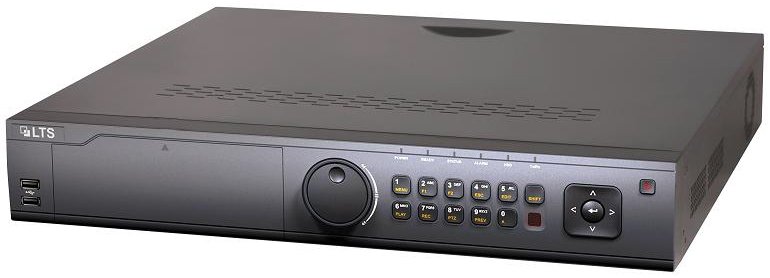

LTS LTN8916H Platinum Enterprise Level 16 Channel NVR

SKU#

:

LTN8916H

Regular Price

:

$699.95

Sale Price

:

$549.95

You Save

$150.00(21.43% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTS LTN8916H Platinum Enterprise Level 16 Channel NVR

Model	LTN8916H
Recorder Series	Platinum Series
Recorder Channel	16-Channel
Recorder Case	1.5U Case
Recorder Technology	IP / NVR
Featured Product	No
Video/Audio input
IP video input	16-ch Up to 12 MP resolution
Two-way audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Network
Incoming bandwidth	160 Mbps
Outgoing bandwidth	256 Mbps
Remote connection	128
Video/Audio output
Recording resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 � 576, NTSC: 704 � 480
HDMI1 output resolution	4K (3840 � 2160)/60Hz, 4K (3840 � 2160)/30Hz, 2K(2560�1440)/60Hz,1920 � 1080p/60Hz, 1600 � 1200/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz
VGA output resolution	2K(2560�1440)/60Hz,1920 � 1080p/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60Hz,HDMI1/VGA Simultaneous Output
HDMI2 output resolution	1920 � 1080/60Hz, 1280 � 1024/60Hz , 1280 � 720/60Hz, 1024 � 768/60Hz
Audio output	1-ch, RCA (Linear, 1 KO)
Decoding
Decoding format	H.265/H.265+/H.264/H.264+/MPEG4
Live view / Playback resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
Capability	2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Network management
Network protocols	TCP/IP, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP�, HTTPS
Hard disk
SATA	4 SATA interfaces for 4HDDs
Capacity	Up to 8TB capacity for each HDD
eSATA	1 eSATA interface
External interface
Network interface	2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Serial interface	1 RS-485 (half-duplex), 1 RS-232
USB interface	Front panel: 2 � USB 2.0; Rear panel: 1 � USB 3.0
Alarm in/out	16/4 (16/8 optional)
General
Power supply	100 to 240 VAC
Power	≤ 80 W
Consumption (without hard disk)	≤ 20 W
Working temperature	-10 �C to 55 �C (14 �F to 131 �F)
Working humidity	10 to 90 %
Dimensions (W�D�H)	445 � 400 �71 mm ( 17.5"� 15.7" � 2.8")
Weight (without hard disk)	≤ 5 kg (11 lb)
