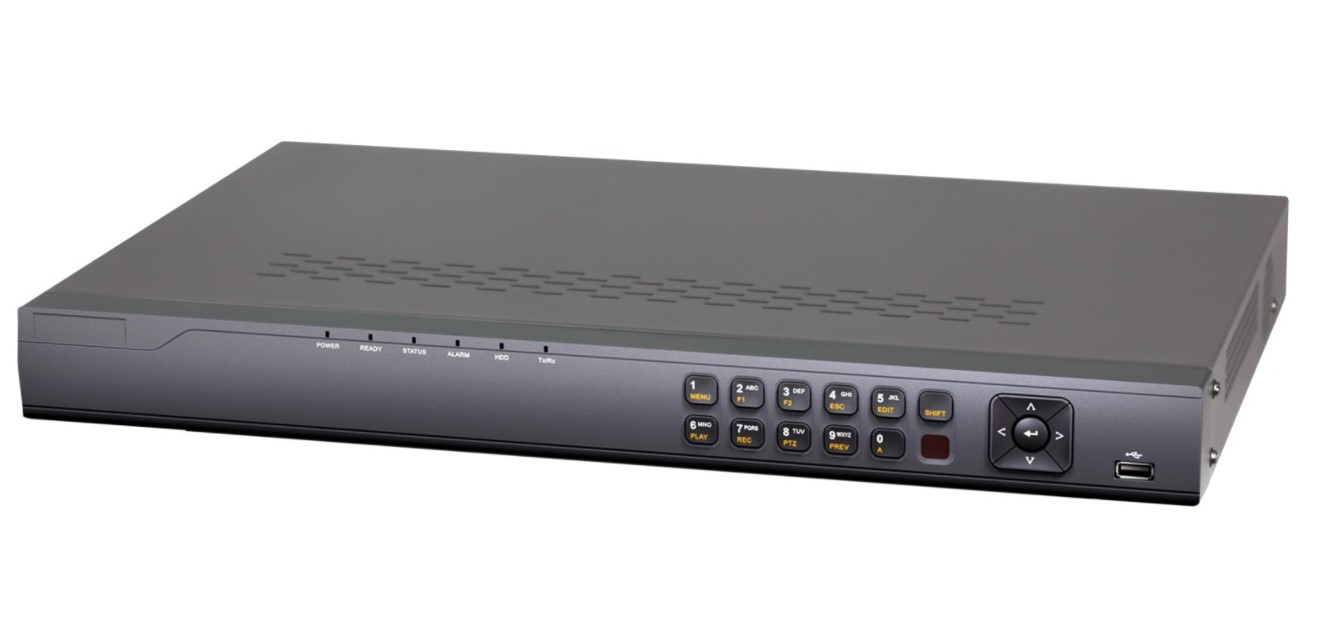

LTS LTN8716-P16 Platinum Professional Level 16 Channel PoE 1U NVR
LTS LTN8716-P16 Platinum Professional Level 16 Channel PoE 1U NVR
- Connect up to 16 IP Cameras
- Support Live View, Storage, Playback up to 6MP (3072x2048)
- 16 Built-in PoE
- 2 SATA up to 12TB
- Supports up to 4 POS
Model | LTN8716-P16 |
Recorder Series | Platinum Series |
Recorder Channel | 16-Channel |
Recorder Case | 1U Case |
Recorder Technology | IP / NVR |
Featured Product | No |
Video/Audio Input | |
IP Video Input | 16-CH |
Two-Way audio Input | 1-ch, RCA (2.0 Vp-p, 1k?) |
Network | |
Incoming Bandwidth | 160Mbps |
Outgoing Bandwidth | 80Mbps |
Remote Connection | 128 |
Video/Audio Output | |
Recording Resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Frame Rate | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
HDMI/VGA Output | 1-ch, resolution: 1920 × 1080 /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz |
Audio Output | 1-ch, RCA (Linear, 1k?) |
Decoding | |
Live View/Playback Resolution | 6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 16-ch@4CIF, 12-ch@720P, 6-ch@1080P |
Hard Disk | |
SATA | 2 SATA interfaces for 2 HDDs |
Capacity | Up to 6TB for each disk |
External Interface | |
Network Interface | 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface |
USB Interface | 1 × USB 2.0 and 1 × USB 3.0 |
PoE | |
Interface | 16 independent 100 Mbps PoE network interfaces |
Max. Power | 200W |
Supported Standard | AF and AT |
General | |
Power Supply | 100~240V AC |
Consumption | ≤ 15W |
Working Temperature | +14 ºF~ + 131 ºF(-10 ºC ~ +55 ºC ) |
Working Humidity | 10% - 90% |
Casing | 19-inch rack-mounted 1U casing |
Dimensions (WxDxH) | 445 × 290 × 45mm (17.5 ×11.4 × 1.8 inch) |
Weight | ≤ 1 kg (2.2 lb) |
