Home New Arrivals LTS LTN8704Q-P4N 4CH Professional Level NVR

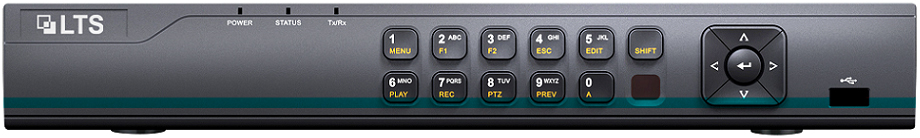

LTS LTN8704Q-P4N 4CH Professional Level NVR
LTS LTN8704Q-P4N 4CH Professional Level NVR
- Up to 4-ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/5-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Model | LTN8704Q-P4N |
Recorder Series | Platinum Series |
Recorder Channel | 4-Channel |
Recorder Case | mini 1U |
Recorder Technology | IP / NVR |
Video and Audio | |
IP Video Input | 4-ch Up to 8 MP resolution |
Incoming Bandwidth | 40 Mbps |
Outgoing Bandwidth | 80 Mbps |
HDMI Output | 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
VGA Output | 1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz |
Video Output Mode | HDMI/VGA simultaneous output |
CVBS Output | N/A |
Audio Output | 1-ch, RCA (Linear, 1 KΩ) |
Two-way Audio Input | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Decoding | |
Decoding Format | H.265+/H.265/H.264+/H.264 |
Recording Resolution | 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF |
Synchronous Playback | 4-ch |
Capability | 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps) |
Stream Type | Video, Video & Audio |
Audio Compression | G.711ulaw/G.711alaw/G.722/G.726 |
Network | |
Remote connection | 16 |
Network Protocol | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
PoE | |
Interface | 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
Power | ≤ 50 W |
Supported Standard | IEEE 802.3 af/at |
Auxiliary Interface | |
SATA | 1 SATA interface |
Capacity | Up to 8 TB capacity for each disk |
USB Interface | Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0 |
General | |
Power Supply | 48 VDC, 1.35 A |
Consumption (witdout HDD and PoE off) | ≤ 10 W |
Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working Humidity | 10% to 90% |
Dimension (W x D x H) | 320 x 240 x 48 mm (12.4" x 9.4" x 1.9") |
Weight (without HDD) | ≤ 1 kg (2.2 lb) |
