Home IP Cameras and Network Video Recorders NVRs IP Cameras and NVR's by LTS LTS Platinum Series IP NVR's - Network Video Recorders H.265 / H.265+ Ultra HD 4K Resolution NVRs by LTS Platinum Series LTS LTN8704K-HT Platinum Advanced Level 4 Channel Hybrid NVR - Compact 1U

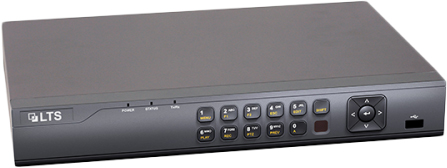

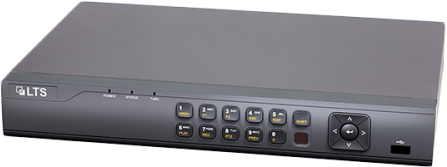

LTS LTN8704K-HT Platinum Advanced Level 4 Channel Hybrid NVR - Compact 1U
LTS LTN8704K-HT Platinum Advanced Level 4 Channel Hybrid NVR - Compact 1U
- 4 Channel Hybrid Network Video Recorder
- Support 5MP HD-TVI 4.0 Cameras
- Support 6MP IP Cameras
- 4K(3840x2160)
- HDMI Video Output
- H.265/H.265+/H.264
- Support 4CH HD-TVI and 4CH IP Cameras
Model | LTN8704K-HT | |
Recorder Series | Platinum Series | |
Recorder Channel | 4-Channel | |
Recorder Case | Compact Case | |
Recorder Technology | Hybrid NVR | |
Featured Product | No | |
Video/Audio Input | ||
Video/Audio Input | H.265+/H.265/H.264 Zip+/H.264 | |
Video Input | 4-CH | |
BNC interface (1.0 Vp-p, 75 O), supporting coaxition | ||
Supported HDTVI input | 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25 | |
Supported AHD input | 1080p25, 1080p30, 720p25, 720p30 | |
CVBS input | Support | |
IP Video Input | 4-ch, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras | |
Audio compression | G.711u | |
Audio input | 4-ch, RCA (2.0 Vp-p, 1 kO) | |
Video/Audio Output | ||
HDMI/ VGA output | 1 -ch , 19 20 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60 Hz | |
Encoding resolution | 5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF | |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704×576, NTSC: 704×480 | |
Frame rate | Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N) | |
Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N) | ||
Video bit rate | 32 Kbps -10 Mbps | |
Audio output | 1-ch, RCA (Linear, 1 kO) | |
Audio bit rate | 64 Kbps | |
Dual- stream | Support | |
Stream type | Video, Video & Audio | |
Synchronous playback | 4ch | |
Network | ||
Remote connections | 128 | |
Network protocols | TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF | |
Hard Disk | ||
SATA | 1 SATA | |
Capacity | Up to 8TB capacity for each disk | |
External Interface | ||
Network Interface | 1, RJ45 10M / 100Mself-adapt ive Ethernet interface | |
Serial Interface | 1; RS-485 serial interface, half-duplex | |
USB Port | 2 × USB2.0 | |
Alarm In/Out | 1-Apr | |
General | ||
Power Supply | DC 12V | |
Consumption | = 10W | |
Working Temperature | -10 °C ~ +55 °C(14°F - 131°F) | |
Working Humidity | 10% - 90% | |
Chassis | 1U compact case | |
Dimension | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) | |
Weight | =1.6Kg (2.6 lb) |
