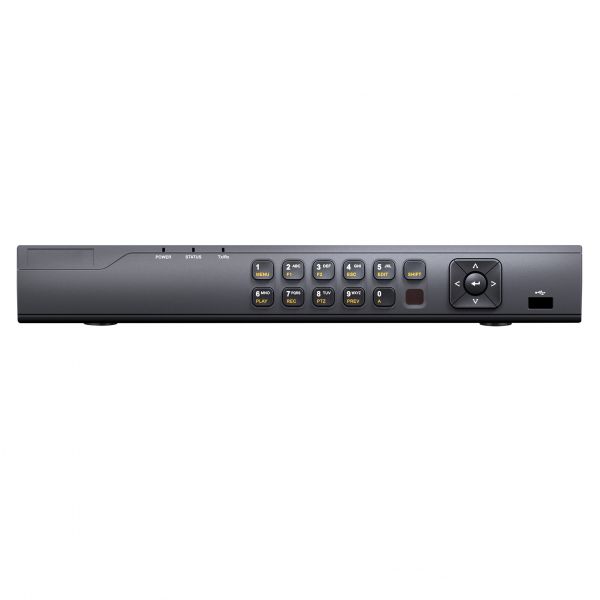

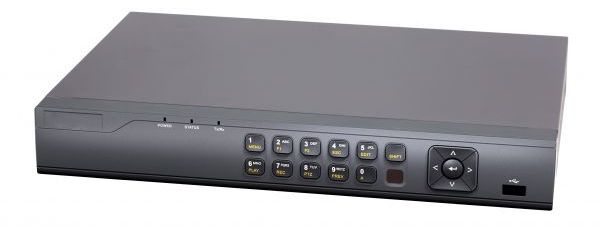

LTS LTN8704-P4 4CH 1U Plug & Play NVR
LTS LTN8704-P4 4CH 1U Plug & Play NVR
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 4-ch network cameras can be connected with 25M incoming bandwidth
- 1 SATA interfaces
- Plug & Play with 4 independent PoE network interfaces
- Support network detection, including network delay, packet loss, etc
Model | LTN8704-P4 |
Video / Audio input | |
IP video input | 4-ch? |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
Network | |
Incoming bandwidth | 25Mbps? |
Outgoing bandwidth | 80Mbps? |
Remote connection | 128 |
Video / Audio output | |
Recording resolution | 5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
HDMI / VGA output | 1-ch, resolution: 1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz,?1280 ? 1024 /60Hz, 1280? 720 /60Hz, 1024 ? 768 /60Hz |
Audio output | 1-ch, RCA (Linear, 1kΩ) |
Frame rate | Main stream: 50 fps (P) / 60 fps (N) Sub-stream: 50 fps (P) / 60 fps (N) |
Decoding | |
Live view / Playback resolution | 5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Capability | 4-ch@1080P |
Hard disk | |
SATA | 1 SATA interface for 1 HDD |
Capacity | Up to 4TB for each disk |
External interface | |
Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface |
Serial interface | 1 RS-485 half-duplex interface |
USB interface | 1 ? USB 2.0 and 1 ? USB 3.0 |
PoE | |
PoE Interface | 4 independent 100 Mbps PoE? |
Max. Power | 50W |
Standard? | AF and AT |
General | |
Power supply | 48V DC |
Power Consumption | ≤ 10 W (without hard disk) |
Working temperature | 14?F~131?F(-10 ?C ~ +55 ?C) |
Working humidity | 10% ~ 90% |
Chassis | 1U chassis |
Dimension? | 12.4"?9.1"?1.8"(315 ? 230 ? 45mm)? |
Weight | ≤ 2.2lb(1 Kg )( without hard disk) |
