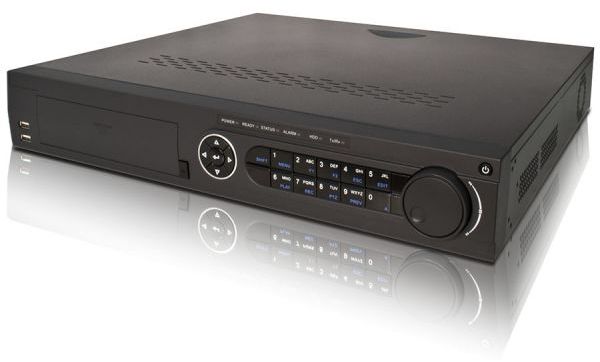

LTS LTN7732 32 Channel Professional Level NVR 80Mbps

Please note, this product has been discontinued by manufacturer. Before ordering, please Contact Us or call 866-446-2288 for availability or for suggestion on compatible replacement.
FEATURES
- Connectable to Network Cameras with up to 5 Megapixel Resolution.
- Support Live View, Storage and Playback of Video at 5.0 Megapixel Resolution.
- Zoom in for Any Area When Playback.
- Playing Reversely.
- Adverse Playback for Multi-channel.
- Realize Instant Playback for Assigned Channel Duringmulti-channel Display Mode.
- Digital Zoom in Live View and Playback Mode.
- 16CH Simultaneously Playback at D1resolution.
- Customization of tags, Searching and Playing Back By Tags.
- Searching Record Files by Events (Alarm Input/Motion Detection).
- Holiday Recording Schedule Configuration.
- HDD Quota Management; Different Capacity Can be Assigned Todifferent Channel.
- Redundant Recording.
- 4 SATA Interfaces Available.
- Dual System Design Ensures High Reliability and Stability.
- 1 Self-adaptive 10M/100M/1000M Network Interface.
- IPv6 is Supported.
- TCP/IP Protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, UPnP and iSCSI are supported.
Model | LTN7732 | |
System | Compression Format | H.264 |
OS | Embedded Linux | |
Video/ Audio Output | IP Video Input | 32-ch, Max 80Mbps Input |
VGA Output | 1-ch, resolution: 1920?1080P/60Hz, 1600?1200/60Hz, 1280?1024/60Hz, 1280?720/60Hz, 1024?768/60Hz |
|
CVBS Output | 1-ch, BNC (1.0 Vp-p, 75 Ω) | |
HDMI Output | 1-ch, resolution: 1920 ? 1080P /60Hz, 1920 ? 1080P /50Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz, 1280 ? 720/60Hz, 1024 ? 768 /60Hz |
|
Recording Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | |
Simultaneous Playback | 16-ch | |
Playback Resolution | 5MP / 3MP / 2MP / 1080P / 720P / VGA / D1 / VGA / DCIF / 2CIF / CIF / QCIF | |
Dual Stream | Main and Sub-Streams | |
Audio Input | 1-ch BNC | |
Audio Output | 1-ch BNC | |
Backup Format | MP4 | |
Storage | SATA | 4 SATA Interfaces for 2HDDs |
e-SATA | 1 eSATA Interface | |
Capacity | Up to 4TB capacity for each disk | |
Dual Steam | Master Stream | 30(NTSC)/25(PAL)fps CIF per Ch |
Network Stream | 1/2 fps CIF per Ch | |
External Interface | Network Interface | 1 RJ45 10M/100M/1000M adaptive Ethernet |
USB Interface | 3 USB 2.0 Interfaces | |
Serial Interface | 1 RS-485, 1xRS-232 | |
Alarm Input: | 16 | |
Alarm Output | 4 | |
General | Mobile App | Guarding Expert for iPhone/iPad/Android |
Power Supply | 100 ~240VAC | |
Consumption | ≤ 15 W (without hard disk) | |
Working Temperature | -10 ?C ~ 55 ?C | |
Humidity | 10%~90% | |
Chassis | 19-ich rack-mounted 1U chassis | |
Dimensions | 17.5" ? 15.25" ?2.75" (W x D x H) | |
Weight | ≤ 2 Kg ( without hard disk) |
