Home IP Cameras and Network Video Recorders NVRs IP Cameras and NVR's by LTS LTS Platinum Series IP NVR's - Network Video Recorders LTS LTN7608-HT 8Ch Analog + 8Ch IP 40Mps Hybrid Network Camera NVR

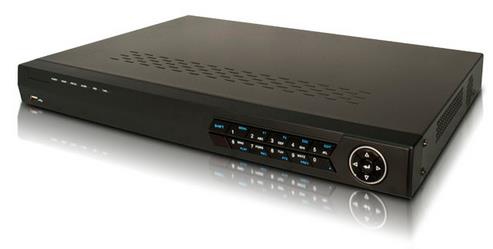

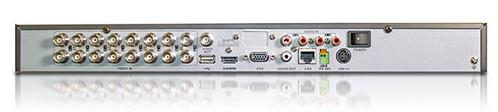

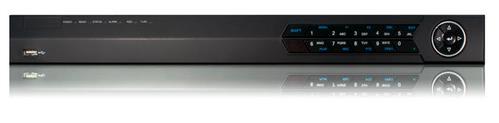

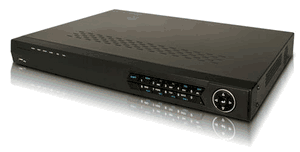

LTS LTN7608-HT 8Ch Analog + 8Ch IP 40Mps Hybrid Network Camera NVR
Hybrid NVR, H.264 video compression, Third-party network cameras supported, Up to 5 Megapixels resolution recording, HDMI and VGA output at up to 1920×1080P resolution, 8/16-ch synchronous playback, HDD quota and group management.
Product Features
- 8/16CH Analog + 8/16CH IP (Hybrid setup)
- H.264 video compression
- Third-party network cameras supported
- 8/16-ch synchronous playback
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- HDD quota and group management
Model | LTN7608-HT |
Video/Audio input | |
Video compression | H.264 |
Analog video input | 8-ch |
Video input interface | BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive |
IP video input | 8-ch |
Composite video input | |
Audio compression | |
Audio input | |
Two-way audio | |
Video/Audio output | |
HDMI / VGA output | 1920 ? 1080 / 60 Hz (1080P), 1600 ? 1200 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), Resolution: PAL: 704 ? 576, NTSC: 704 ? 480 |
Video loop out | Optional |
Encoding resolution(Analog) | Main stream:WD1/4CIF / 2CIF / CIF / QCIF Sub-stream: CIF / QCIF |
Frame rate(Analog) | Main stream: 25 fps (P) / 30 fps (N) Sub-stream: 25 fps (P) / 30 fps (N) |
Video bitrate | 32 Kbps ~ 3 Mbps |
Audio output | 1-ch,RCA (Linear, 1 KΩ) |
Audio bitrate | 64 Kbps |
Stream type | Video, Video & Audio |
Dual-stream | Support |
Playback resolution | 5MP/3MP/1080P/UXGA/720P/WD1/4CIF/VGA/DCIF/2CIF/CIF/QCIF |
Synchronous playback | 8-ch |
Hard disk | |
SATA | 2 SATA interfaces |
Capacity | Up to 4 TB capacity for each disk |
External interface | |
Network interface | 1;10M/100M/1000M self-adaptive Ethernet interface |
Serial interface | 1 RS-485 half-duplex interface |
USB port | 2 ? USB2.0 |
Alarm in/out | Optional |
General | |
Power supply | 12 VDC |
Consumption | Max. 10W (without hard disk) |
Working temperature | -10 ?C ~ +55 ?C (14 ?F ~ 131 ?F) |
Working humidity | 10%~90% |
Chassis | 1U chassis |
Dimensions (W ? D ? H) | 445 ? 290 ? 45 mm |
Weight | Approx. 2 kg / 4.4 lb (without hard disk) |
