LTS LTN7604V-P4 4Ch 20Mbps Compact Mini-Tower with Hot-Swap Technology NVR

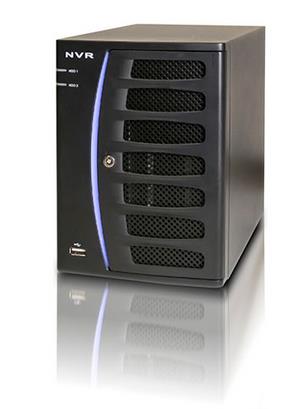

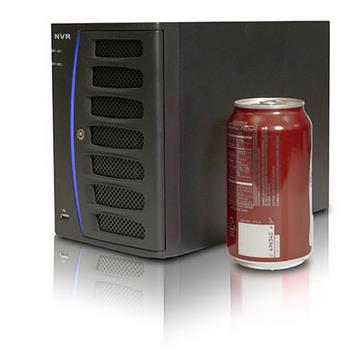

Compact Mini-Tower Design with Hot-Swap Technology, Third-party network cameras supported,Up to 5 Megapixels resolution recording,HDMI and VGA output at up to 1920×1080P,HDD quota and group management,4 independent PoE network interfaces,Vertical design for easy HDD installation
Product Features
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P
- HDD quota and group management
- 4 independent PoE network interfaces
- Vertical design for easy HDD installation

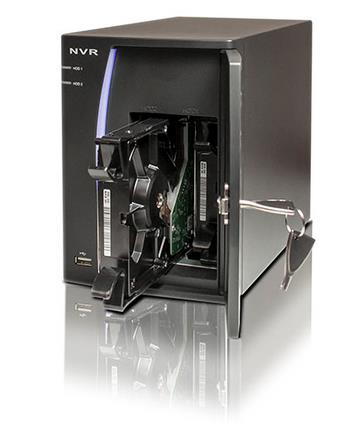

- HDD hot-swap supports 2 HDD
Model | LTN7604V-P4 |
Video / Audio input | |
IP video input | 4-ch |
Two-way audio input | 1-ch, RCA (2.0 Vp-p, 1kO) |
Incoming bandwidth | 20Mbps |
Video / Audio output | Decoding resolution | 5MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | HDMI / VGA output | 1-ch, resolution: 1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280x720 /60Hz, 1024 x 768 /60Hz |
Audio output | 1-ch, RCA (Linear, 1kO) | Playback resolution | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF | Synchronous playback | 4-ch 720P / 2-ch 1080P / 1-ch 5MP |
Hard disk | SATA | 2 SATA interfaces for 2 HDDs | Capacity | Up to 4TB for each disk |

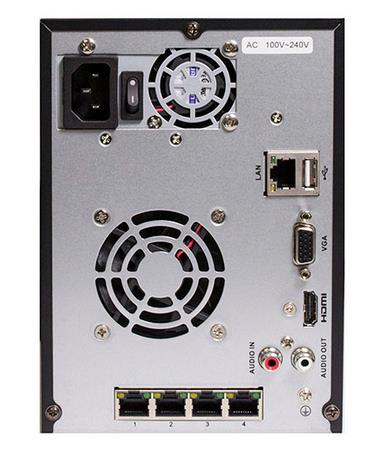

External interface | Network interface | 1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface 4 independent 10 /100 Mbps PoE Ethernet interfaces | Serial interface | 1 RS-485 half-duplex interface | USB interface | 2 x USB 2.0 |
General | Power supply | 100~240VAC, 47~63Hz, 3A | Power Consumption | = 10 W (without hard disk) | Working temperature | 10% ~ 90% | Chassis | Vertical chassis | Dimension | 130 x 236 x 180mm(5.1"x9.3"x7.1") | Weight | = 2 Kg(4.4lb) ( without hard disk) |
