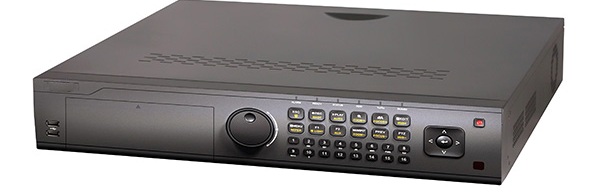

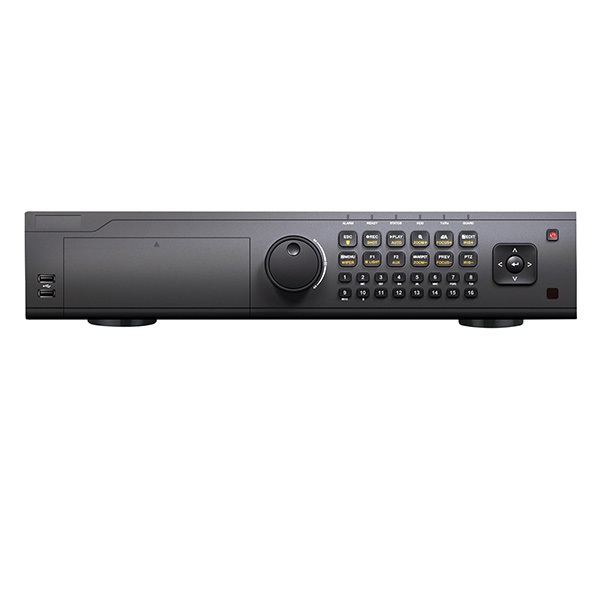

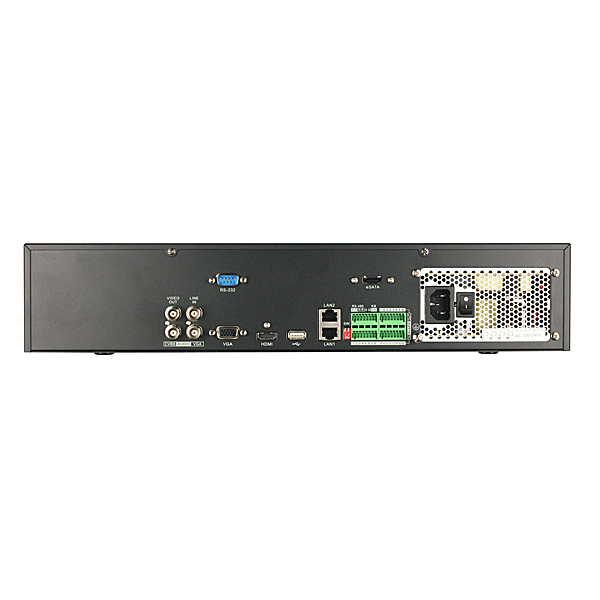

LTS LTN0764 64 Channel Dual Gigabit Network Video Recorder
LTS LTN0764 64 Channel Dual Gigabit Network Video Recorder
- Third-party network cameras supported
- Up to 5 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- Up to 8 SATA interfaces
- HDD quota and group management
- Dual gigabit network interfaces
Model | LTN0764 |
Video/Audio input | |
IP video input | 64-ch |
Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1kΩ) |
Incoming bandwidth | 160Mbps |
Video/Audio output | |
Recording resolution | ?5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω) Resolution: 704 ? 576 (PAL); 704 ? 480 (NTSC) |
HDMI output | 1-ch, resolution:? 1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz, 1280 ? 720 /60Hz, 1024 ? 768 /60Hz? |
VGA output | 1-ch, resolution: 1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz,? 1280 ? 720 /60Hz, 1024 ? 768 /60Hz? |
Audio output | 2-ch, BNC (Linear, 600Ω) |
Playback resolution | 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF? |
Synchronous playback | 16-ch |
Hard disk | |
SATA | Up to 8 SATA interfaces |
eSATA | 1 eSATA interface |
Capacity | Up to 4TB capacity for each HDD |
External interface | |
Network interface | 2, 10M / 100M / 1000M self-adaptive Ethernet interface |
Serial interface | RS-232, RS-485, RS-485 keyboard |
USB interface | 3 ? USB 2.0 |
Alarm in | 16 |
Alarm out | 4 |
General | |
Power supply | 100 ~ 240VAC, 6.3A, 50 ~ 60Hz |
Consumption | ≤ 40 W |
Working temperature | -10 ?C? ~ +55 ?C(14?F ~ 131?F) |
Working humidity | 10% ~ 90% |
Chassis | 19-inch rack-mounted 2U chassis |
Dimensions(W ? D ? H) | 445 ? 470 ? 90 mm (17.52" ?18.5"? 3.54")? |
Weight | ≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W ) |
