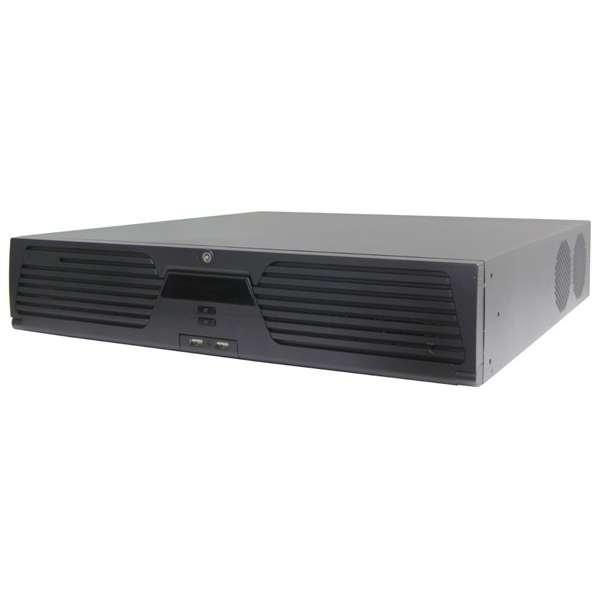

LTS LTN0764-R8 Platinum Enterprise Level 64 Channel NVR 2U 768Mbps
LTS LTN0764-R8 Platinum Enterprise Level 64 Channel NVR 2U 768Mbps
- Third-party network cameras supported
- Up to 8 Megapixels resolution recording
- HDMI and VGA output at up to 1920×1080P resolution
- 8 SATA interfaces,up to 6TB for each disk
- Support NAS, IP SAN Network Storage
- HDD quota and group management
- Dual gigabit network interfaces
- RAID 0,1,5,10 supported
Model | LTN0764-R8 | |
Recorder Series | Platinum Series | |
Recorder Channel | 64-Channel | |
Recorder Case | 2U Case | |
Recorder Technology | IP / NVR | |
Featured Product | No | |
Video / Audio input | ||
IP video input | 64-ch | |
Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) | |
Incoming bandwidth | 768Mbps | |
Outgoing bandwidth | 768Mbps | |
Remote connection | 128 | |
Video / Audio output | ||
Recording resolution | 8MP/5MP/3MP/1080P/UXGA/720P/VGA / 4CIF/DCIF/2CIF/CIF/QCIF | |
HDMI output | 2-ch, resolution: HDMI1: 1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 128 ×0 1024 /60Hz, 1280 × 720 /60Hz,1024 × 768 /60Hz HDMI2: 3840 × 2160P /60Hz, 1920 × 1080P /60Hz,1600 × 1200 /60Hz, 1×28 10024 /60Hz,1 280 × 720 /60Hz, 1024 × 768 /60Hz | |
VGA output | 1-ch, resolution: 920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1028 × 720 /60Hz, 1024 × 768 /60Hz | |
Audio output | 1-ch, BNC (Linear, 600 Ω) | |
Playback resolution | 8MP/5MP/3MP/1080P/ UXGA/ 720P/ VGA / 4CIF/DCIF/2CIF/CIF/QCIF | |
Synchronous playback | 16-ch | |
Hard disk | ||
SATA | Up to 8 SATA interfaces for 4HDD+1 DVD-R/W, or 8HDDs | |
eSATA | 1 eSATA interface | |
Disk array | ||
Array type | RAID0, RAID1, RAID5, RAID10 | |
Number of array | 8 | |

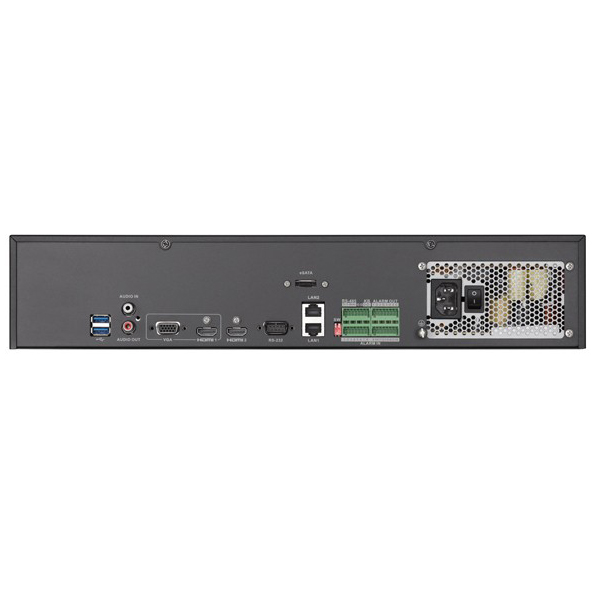

External interface | ||
Network interface | 2, 10M / 100M / 1000M self-adaptive Ethernet interface | |
Serial interface | RS-232, RS-485, RS-485 keyboard | |
USB port | 2 x USB2.0 + 2 x USB3.0 | |
Alarm in/out | 16/4 | |
General | ||
Power supply | 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz | |
Power Consumption | ≤100W | |
Working temperature | -10°C ~ +55°C (14 °F ~ 131 °F) | |
Working humidity | 10% ~ 90% | |
Dimension | 445 × 470 × 90 mm (17.52" ×18.5"× 3.54") | |
Weight | ≤ 8 kg (17.64 lb) ( without hard disk or DVD-R/W ) | |
Video | No |
