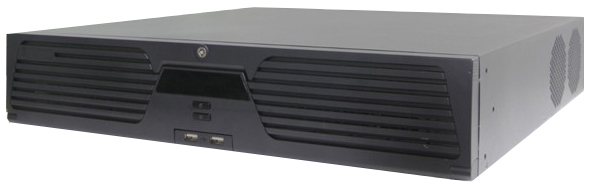

LTS LTN0732D-R8 Platinum Enterprise Level 32 Channel NVR 2U
LTS LTN0732D-R8 Platinum Enterprise Level 32 Channel NVR 2U
- 32 Channel Network Video Recorder
- Video Input: 32CH IP@320Mbps
- VGA1 up to 2K (2560 × 1440)/60Hz resolution, HDMI1 up to 4K (3840 × 2160)/60Hz; VGA2 /HDMI2 output up to 1080P
- Up to 16-ch synchronous playback
- Human Body Detection analytics to improve the alarm accuracy rate effectively
- Up to 8 SATA hard disks and 1 eSATA disk can be connected for both recording and backup
- HDD hot swap with RAID0, RAID1, RAID5, RAID6, RAID10 storage scheme configurable
Model | LTN0732D-R8 | |
Recorder Series | Platinum Series | |
Recorder Channel | 32-Channel | |
Recorder Case | 2U Case | |
Recorder Technology | IP / NVR | |
Featured Product | No | |
Video/Audio input | ||
IP video input | 32-ch | |
Two-way audio input | 1-ch, BNC (2.0 Vp-p, 1 kΩ) | |
Incoming bandwidth | 320Mbps | |
Outgoing bandwidth | 256 Mbps, or 200 Mbps (when RAID is enabled) | |
Remote connection | 256 Mbps, or 200 Mbps (when RAID is enabled) | |
Video/Audio output | ||
Recording resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF | |
HDMI output / HDMI1 | VGA1: 2K (2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1: 4K (3840×2160)/60Hz, 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1920×1080/60Hz, 1600×1200/60Hz,1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
VGA output/ HDMI2 | 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz | |
Audio output | 2-ch, RCA (Linear, 1 KΩ) | |
Synchronous playback | 16-ch | |
Hard disk | ||
SATA | 8 SATA interfaces | |
eSATA | 1 eSATA interface | |
Capacity | Up to 8TB capacity for each HDD | |
Disk array | ||
Array type | RAID0, RAID1, RAID5, RAID6, RAID10 | |
External interface | ||
Network interface | 2 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interfaces | |
Two-Way Audio | 1-ch, RCA (2.0 Vp-p, 1 kΩ) | |
Serial interface | RS-232; RS-485; Keyboard | |
USB port | 2×USB 2.0 on front panel and 1×USB 3.0 on rear panel | |
Alarm in/out | 16/4 | |
General | ||
Power supply | 100 ~ 240 VAC, 50 ~ 60Hz | |
Power Consumption | ≤ 200W | |
Working temperature | 14°F - 131°F (-10°C ~ +55°C) | |
Working humidity | 10% ~ 90% | |
Dimension | 17.5"×18.5"×3.5" (445×470×90 mm) | |
Weight | ≤ 22 lbs (10 Kg, without hard disk) |
