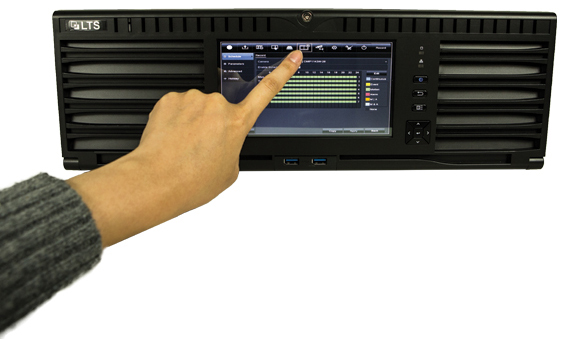

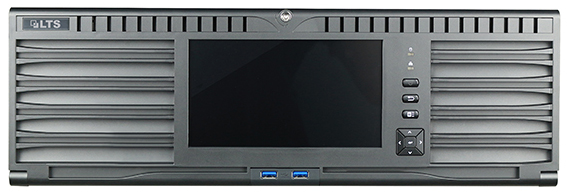

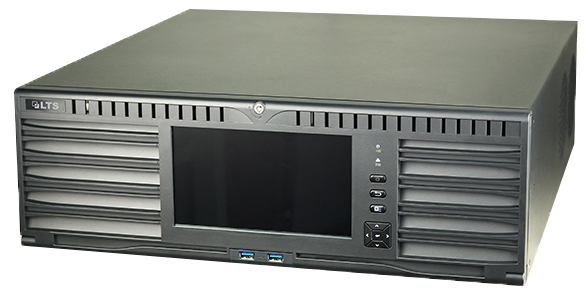

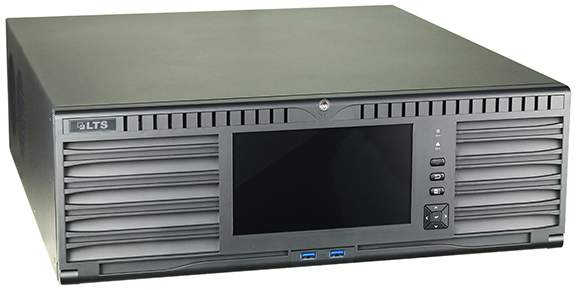

LTS LTN07256-R16 Platinum Enterprise Level 256 Channel NVR 3U
LTS LTN07256-R16 Platinum Enterprise Level 256 Channel NVR 3U
- 256 Channel Network Video Recorder
- Support Live View, Recording, Playback up to 12MP
- Quad-Core CPU
- 16 SATA up to 128TB
- 4 RJ45 10/100/1000Mbps Ethernet Interfaces
- RAID0, RAID1, RAID5, RAID 6, and RAID10 Hot Swap
- H.265/H.265+/H.264/H.264+ Ready
Model | LTN07256-R16 | |
Recorder Series | Platinum Series | |
Recorder Channel | Others | |
Recorder Case | 3U Case | |
Recorder Technology | IP / NVR | |
Featured Product | No | |
Video/Audio input | ||
IP Video Input | 256-CH | |
Two-Way audio Input | 1-ch, RCA (2.0 Vp-p, 1kΩ) | |
Network | ||
Incoming Bandwidth | 768Mbps/ 768Mbps | |
Outgoing Bandwidth | 768Mbps/768Mbps | |
Remote Connection | 256 | |
Video/Audio Output | ||
Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF | |
HDMI1/VGA1 Output Resolution | Two independent HDMI outputs of 4K resolution. Resolution: 4K(4096×2160), 4K(3840×2160)/30Hz 2K(2560×1440)/60Hz, 1080p(1920×1080)/60Hz, UXGA(1600×1200)/60Hz, SXGA(1280×1024)/60Hz, 720p(1280×720)/60Hz, XGA(1024×768)/60Hz 1-ch Resolution: 1080p(1920×1080)/60Hz, UXGA(1600×1200)/60Hz, SXGA(1280×1024)/60Hz, 720p(1280×720)/60Hz, XGA(1024×768 )/60Hz | |
HDMI2 Output | 1-ch,(1920×1080P)/60Hz, (1600×1200)/60Hz, (1280×1024)/60Hz, (1280×720)/60Hz, (1024×768)/60Hz | |
HDMI outputs (on HDMI Output Extension Board) | 1-ch,(1920×1080P)/60Hz, (1600×1200)/60Hz, (1280×1024)/60Hz, (1280×720)/60Hz, (1024×768)/60Hz | |
Audio Output | 1-ch, RCA (Linear, 1kΩ) | |
Decoding | ||
Live View/Playback Resolution | H.264, MPEG4, M-JPEG | |
Synchronous Playback | 16-CH | |
Capability | 44-ch@1080P | |
Hard Disk | ||
SATA | 16 SATA interfaces supporting hot-plug | |
Capacity | Up to 8TB Capacity for Each HDD | |
Disk Array | ||
Array Type | RAID0, RAID1, RAID5, RAID 6, and RAID10 | |
Number of Array | 16 | |
Interface | ||
Network Interface | 4, RJ45 10M / 100M / 1000M self-adaptive Ethernet interface | |
Optic Fiber Interface | 4, 1000 Mbps Optic Fiber Interface | |
Serial Interface | 1 RS-485,Keyboard | |
USB Interface | Front Panel: 2×USB 2.0; Rear Panel: 2×USB 3.0 | |
Alarm In/Out | 16/8 | |
General | ||
Power Supply | 100 ~ 240 VAC, 550W | |
Consumption | ≤140W (without hard disk or DVD-R/W) | |
Working Temperature | 14ºF ~ 131ºF (-10 ºC ~ +55 ºC) | |
Working Humidity | 10% ~ 90% | |
Casing | 19-Inch Rack-Mounted 3U Chassis | |
Dimensions (WxDxH) | 17.4"×19.4"×5.7" (442×494×146 mm) | |
Weight | ≤ 35.3 lbs (16Kg, without hard disk or DVD-R/W) |
