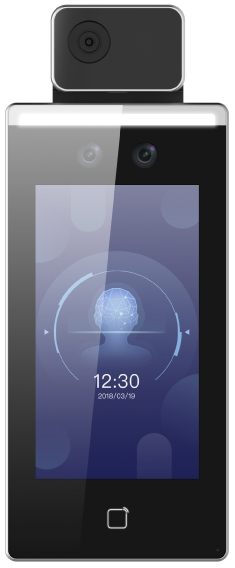

LTS LTK3607FM-T Face Recognition Terminal

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

Access Control

LTS LTK3607FM-T Face Recognition Terminal

Supports Vanadium Oxide uncooled sensor to measure target's temperature
Temperature measuring range: 30 ℃ to 45 ℃ (86 ℉ to 113 ℉), accuracy: 0.1 ℃, deviation: � 0.5 ℃
Recognition distance: 0.3 to 1.8 m
Fast temperature measurement mode: Detects face and takes temperature without identity authentication
Multiple authentication modes are available: card and temperature, face and temperature, card and face and temperature, etc
Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid
Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed
Displays temperature measurement results on the authentication page
Triggers voice prompt when detecting abnormal temperature
Configurable door status (open/close) when detecting abnormal temperature
Transmits online and offline temperature information to the client software via TCP/IP communication and saves the data on the client software
Face recognition duration < 0.2 s/User; face recognition accuracy rate ≥ 99% 6000 face capacity, 6000 card capacity, and 100,000 event capacity
Suggested height for face recognition: between 1.4 m and 1.9 m
Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
Watchdog design and tamper function
Audio prompt for authentication result
NTP, manually time synchronization, and auto synchronization
Connects to external access controller or Wiegand card reader via Wiegand protocol
Connects to secure door control unit via RS-485 protocol to avoid the door opening when the terminal is destroyed
Imports and export data to the device from the client software
* Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes.
* In order to get an accurate temperature, after the device is powered on, you should wait for 90 min to warm the device up.

Model	LTK3607FM-T
Temperature measurement
Temperature range	30 �C to 45 �C (86 �F to 113 �F)
Sensor	Vanadium Oxide uncooled sensor
Resolution	120 � 160
Frame rate	25 fps
Measurement accuracy	0.1 �C
Measurement deviation	� 0.5 �C, without black body calibration
Measuring distance	0.3 to 1.8 m
Screen
Size	7-inch
Type	Touch screen
Camera
Pixel	2 MP
Lens	Dual-lens
Network
Wired network	Support, 10/100/1000 Mbps self-adaptive
Interface
Network interface	1
RS-485	1
Wiegand	1
Lock output	1
Exit button	1
Door contact input	1
IO input	2
IO output	1
TAMPER	1
Capacity
Card capacity	6000
Face capacity	6000
Event capacity	100,000
Authentication
Card type	Mifare 1 card
Card reading distance	0 to 5 cm
Card reading duration	< 1 s
Face recognition duration	< 0.2 s per person
Face recognition distance	0.3 to 1.8 m
Function
Face anti-spoofing	Support
Live view	Support
Audio prompt	Support
Others
Power supply	12 VDC/2 A
Working temperature	0 �C to 50 �C (32 �F to 122 �F) For temperature measurement: 10 �C to 35 �C (50 �F to 95 �F)
Working humidity	10 to 90% (No condensing)
Application environment	Indoor and windless environment use only
