Home Access Control LTS LTH-M201-C IP Intercom Camera Module

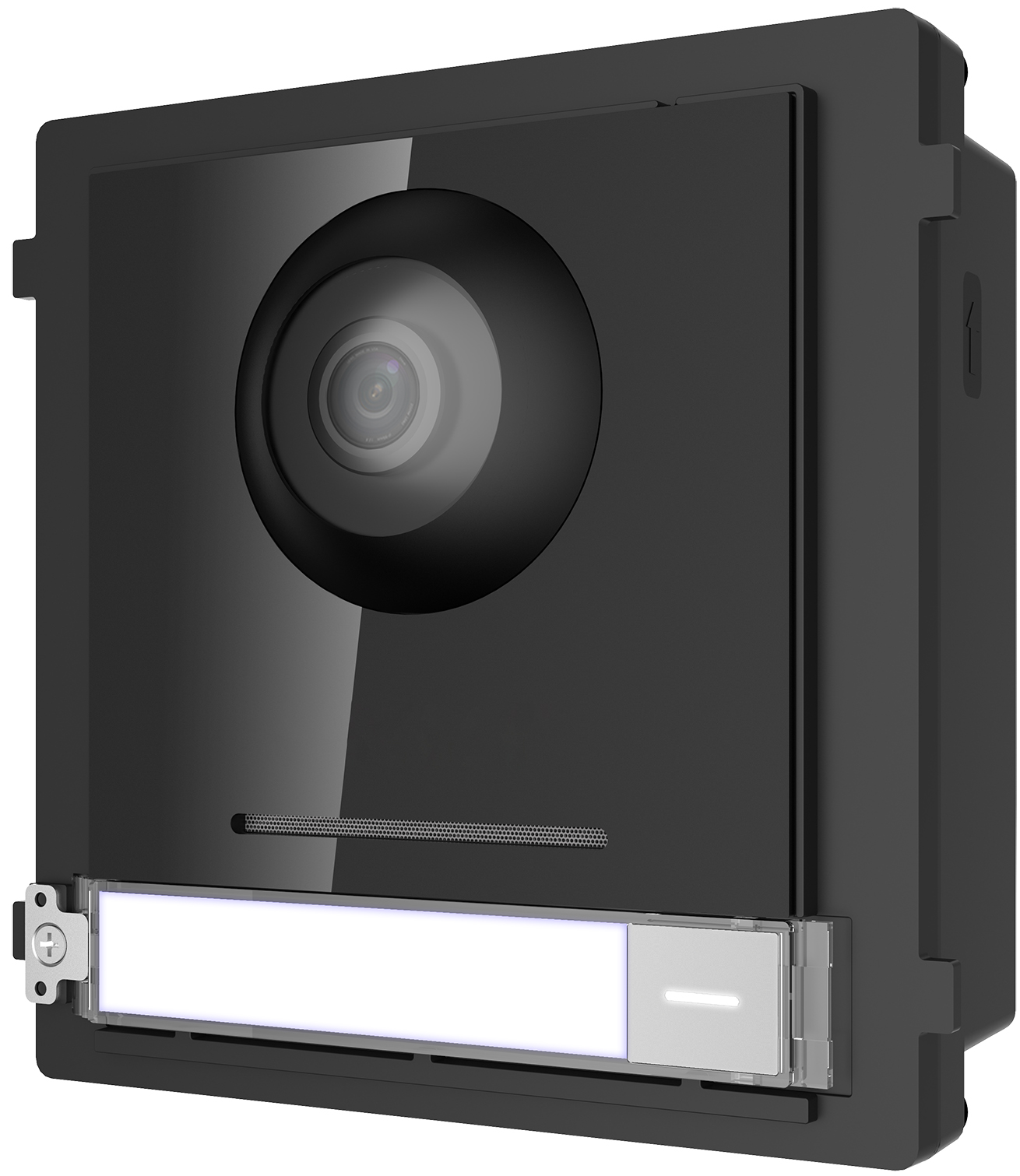

LTS LTH-M201-C IP Intercom Camera Module
LTS LTH-M201-C IP Intercom Camera Module
- 2 MP HD video intercom function
- Access control function
- Noise suppression and echo cancellation
- H.264 video compression
- Low illumination
- Tampering alarm supported
- Fisheye camera with IR supplement light
- Supports sub-modules’ access (max. 8)
- Nametag customization
- Easy to and extend
Model | LTH-M201-C |
System parameters | |
Processor | Embedded MCU Processor |
Operation system | Embedded Linux Operation System |
Operation method | Physical Button |
Video parameters | |
Camera | Low Illumination 2 MP HD IR Camera |
Video compression standard | H.264 |
Resolution | Main Stream: 1920 × 1080 Sub Stream: 720 × 480 |
BLC | Supported |
DNR | Supported |
WDR | Supported |
Anti-flicker | 50 Hz, 60 Hz |
Field of View | Horizontal: 180° Vertical: 96° |
Audio parameters | |
Audio input | Built-in Omnidirectional Microphone |
Audio output | Built-in Loudspeaker(More than 85 dB within 20 cm ) |
Audio compression standard | G.711 U |
Audio compression rate | 64 Kbps |
Audio quality | Noise Suppression and Echo Cancellation |
Light supplement | |
Light supplement mode | IR Supplement |
Network parameters | |
Ethernet | 10/100 Mbps Self-Adaptive Ethernet |
Network protocol | TCP/IP, RTSP |
Alarm parameters | |
Tampering alarm | 1 |
Interfaces | |
Module-connecting | 1 |
I/O input | 4 |
Debug | 1 |
Relay | 2 (30 V, 1 A) |
General | |
Physical button | 1 |
Power Supply | 12 VDC/PoE ( IEEE 802.3af) |
Power consumption | ≤10 W |
Working temperature | -40℃ to +60℃ (-40℉ to 140℉) |
Working humidity | 10% to 95% |
IP protection level | IP65 |
Installation | Flush Mounting, Surface Mounting |
Dimensions (L × W × H) | 98 mm × 99.8 mm × 43.9 mm (3.86" × 3.93" × 1.73") |
