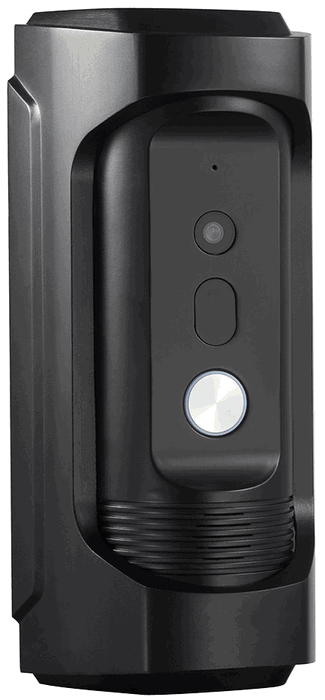

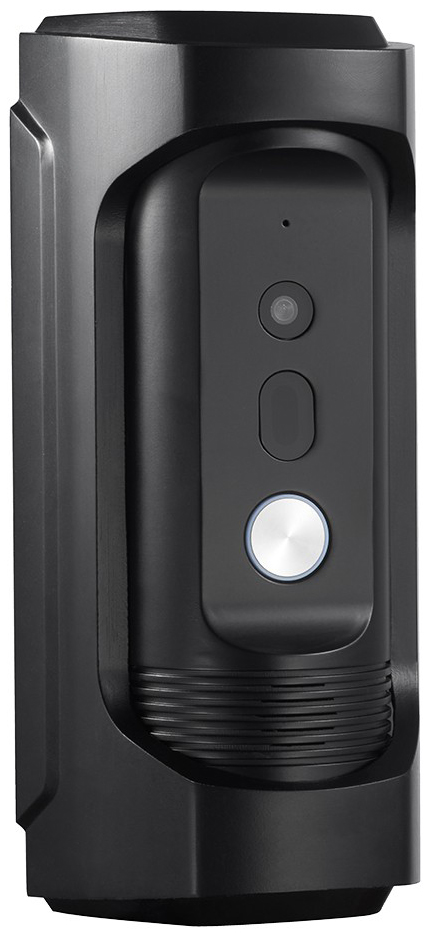

LTS LTH-M001 IP Video Intercom Main Module with Camera

Model	LTH-M001
System Parameters
Processor	High-Performance Embedded SOC Processor
Operation system	Embedded Linux Operation System
Camera Parameters
Image sensor	1/3" Progressive Scan CMOS, Color, Day/Night
Light sensitivity	Low Illumination
Lens	Pinhole, f3.47mm,F2.5
Field of view	80�(Horizontal), 44�(Vertical)
Field of view adjustment	-50�to 50�
Video Parameters
Video compression standard	H.264
Video streaming	Dual Stream
Resolution	Main Stream: 1280 � 720 Sub-Stream: 640 x 480
Video frame rate	PAL: 25 fps, NTSC: 30 fps
Video bit rate	Main Stream: 32 Kbps to 4096 Kbps Sub-Stream: 32 Kbps to 2048 Kbps
Anti-flicker frequency	50 Hz, 60 Hz
Wide dynamic range	Digital WDR, Auto-Switch, DAY/ON, NIGHT/OFF
Image settings	Color, Brightness, Contrast, Sharpness, Saturation, Video Standard, OSD Display
Audio parameters
Audio streaming	Two-Way, Full Duplex
Audio input	Built-in Omnidirectional Microphone
Audio output	Built-in Loudspeaker
Audio compression standard	G.711 U
Audio compression rate	64 Kbps
Audio quality	Noise Suppression and Echo Cancellation
Light Supplement
Light supplement mode	IR Supplement, IR Distance: 5 Meters
Wavelength	940 nm
Control	Auto ON/OFF, Time ON/OFF
Network Parameters
Ethernet	10/100 Mbps Self-Adaptive Ethernet
Network protocol	RTSP, RTP, ONVIF, ISAPI, NTP, HTTP, HTTPS, DHCP, FTP, SMTP
Network connection mode	DHCP, Static IP Address
Door-unlocked duration	1 s to 255 s
Alarm parameters
Alarm input	Door Magnetic Alarm
Device interfaces
Network interface	1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
I/O input	1
I/O output	1 Relay Output
Event actions
Event	Motion Detection, Picture Capturing, Call Button Pressing
File uploading	FTP
Email notification	Login Succeeded via Software or Web
General
Material	Wall Mounting Shield: Zinc Alloy Front Panel: Zinc Alloy Rear Panel: Aluminum Alloy Wall Mounting Plate: Secc
Impact protection	IK 9
Ingress protection level	IP 66
Power supply	PoE (Power over Ethernet) 12 VDC
Power consumption	Max. 12 W
Working temperature	-30℃ to +50℃ (-22℉ to 122℉)
Working humidity	10% to 90%
Dimensions (L � W � H)	161.9 mm � 74.1 mm � 53.2 mm (6.37" � 2.92" � 2.09")
Weight	773g (1.70lb)
