Home Access Control LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader

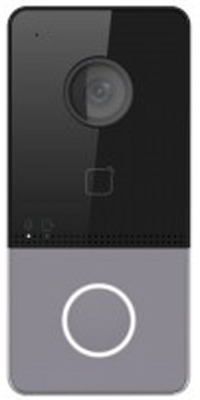

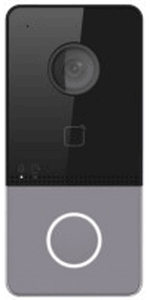

LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader
LTS LTH-301M-WIFI PoE Commercial Doorbell with Card Reader
- PoE Commercial Doorbell with Card Reader and True WDR 2MP IPC Module
- Compact 4.7x 2.2x 0.8 inch Design
- Mifare Reader and Programmable Calling Button
- PoE or TCP/IP with DC12V, IP65 Outdoor
Model | LTH-301M-WIFI |
System parameters | |
Operation system | Embedded Linux operation system |
Operation method | Single-button |
Flash | 32M, 16 M |
RAM | 256 M |
Video Parameters | |
Camera | 2MP HD camera |
Night vision | Low illumination IR supplement mode:3 m |
BLC | Support |
DNR | Support |
WDR | True WDR |
Field of view | Horizontal: 129° Vertical: 75° |
Video compression standard | H.264 |
Stream | Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps |
Resolution | Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576 |
Motion detection | Support |
Anti-flicker frequency | 50 Hz, 60 Hz |
Audio parameters | |
Audio intercom | Two-way audio communication |
Audio input | Built-in omnidirectional microphone |
Audio output | Built-in loudspeaker |
Audio compression standard | G.711 U |
Audio compression Rate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Network parameters | |
Wired network | 10/100 Mbps Ethernet |
Network protocol | TCP/IP, RSTP |
Access control parameters | |
Reading frequency | 13.56 MHz |
Card type | Mifare card |
Relay | 1 |
Interfaces | |
RS-485 | 1 |
Wi-Fi | 2.4G Wi-Fi |
Debugging port | 1 |
Alarm input | 4 |
Grounding | 1 |
Physical button | 1 |
TAMPER switch | 1 |
General | |
Protection level | IP65 |
Indicator | 2 |
Power supply | IEEE802.3af, standard PoE 12 VDC |
Power consumption | < 10 W |
Working temperature | -40℃ to +53℃(-40℉ to 127.4℉) |
Working humidity | 10% to 95% |
Installation | Surface mounting |
Dimension | 138 mm × 65 mm × 27 mm |
