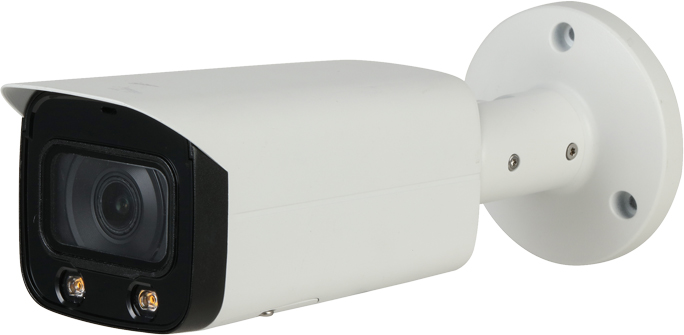

LTS LTDHIP8542W-36MLC 4MP WDR Bullet AI Network Camera 3.6mm

SKU#

:

LTDHIP8542W-36MLC

Regular Price

:

$229.95

Sale Price

:

$159.95

You Save

$70.00(30.44% )

Availability

:

Usually ships the next business day

Power Supply

:

Pre-Made Ethernet Cable

:

Quantity

:

LTS LTDHIP8542W-36MLC 4MP WDR Bullet AI Network Camera 3.6mm

Model

LTDHIP8542W-36MLC

Camera

Image Sensor

1/1.8" 4Megapixel progressive scan CMOS

Effective Pixels

2688 (H) � 1520 (V)

RAM/ROM

512 MB/128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3 s�1/100000 s

Minimum Illumination

0.002 Lux@F1.6

LED Distance

Distance up to 20 m (66 ft)

LED On/Off Control

Auto/Manual

LEDs

Lens

Lens Type

Fixed-focal

Mount Type

Board-in

Focal Length

2.8 mm, 3.6 mm, 6.0 mm

Max. Aperture

F1.6

Angle of View

H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31°

Aperture Type

Fixed

Close Focus Distance

1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft)

DORI Distance

Lens	2.8mm	3.6mm
Detect	58m(190ft)	72m(236ft)
Observe	23m(75ft)	29m(95ft)
Recognize	12m(39ft)	14m(46ft)
Identify	6m(20ft)	7m(23ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan: 0°-360°; Tilt: 0°-90°; Rotation: 0°-360°

Artificial Intelligence

Face Detection

Support face image capture

Perimeter Protection

Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

People Counting

Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access, Storage anomaly

General Intelligence

Object Abandoned/Missing

Heat Map

Yes

Video

Compression

H.265,H.264,H.264B,H.264H, MJPEG (sub stream)

Smart Codec

Yes

Streaming Capability

3 Streams

Frame Rate

Main Stream: 2688 x 1520 (1 fps-25/30 fps), 2560 x 1440 (1 fps-25/30 fps), 1920 x 1080 (1 fps-25/30 fps)
Sub Stream: D1 (1 fps-25/30 fps), D1 (1 fps-50/60 fps)
Third Stream: 1080P (1 fps-16 fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 32 Kbps�8192 Kbps
H.265: 19 Kbps�8192 Kbps

Day/Night

Day/Night: Electronic
Auto/Color/B/W

BLC Mode

BLC/HLC/WDR (140 dB)

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off/On (4 Zone, Rectangle)

Region of Interest

Off/On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Yes

Defog

Yes

Flip

0°/90°/180°/270°

Mirror

Off/On

Privacy Masking

Off/On (4 Area, Rectangle)

Audio

Compression

G.711a, G.711Mu, G.726, AAC, G.723

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP; SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast; ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P

Streaming Method

Unicast/Multicast

Max. User Access

20 Users

Edge Storage

NAS;FTP;SFTP
Micro SD card 256 GB

Web Viewer

IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)

Management Software

Smart PSS, DSS, DMSS

Smart Phone

iOS, Android

Certifications

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Interface

Audio Interface

1/1 channel In/Out

RS485

N/A

Alarm

1 channel In: 5mA 5V DC
1 channel Out: 300mA 12V DC

Electrical

Power Supply

DC 12V (±30%), PoE (802.3af) (Class 0)

Power Consumption

<7.4W

Environmental

Operating Conditions

-30℃ to +60℃ (-22℉ to +140℉)/Less than 95% RH

Storage Conditions

-30℃ to +60℃ (-22℉ to +140℉)

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

244.1 mm x 79.0 mm x 75.9 mm (9.61" x 3.11" x 2.99")

Net Weight

0.815 kg (1.80 lb)

Gross Weight

1.08 kg (2.38 lb)
