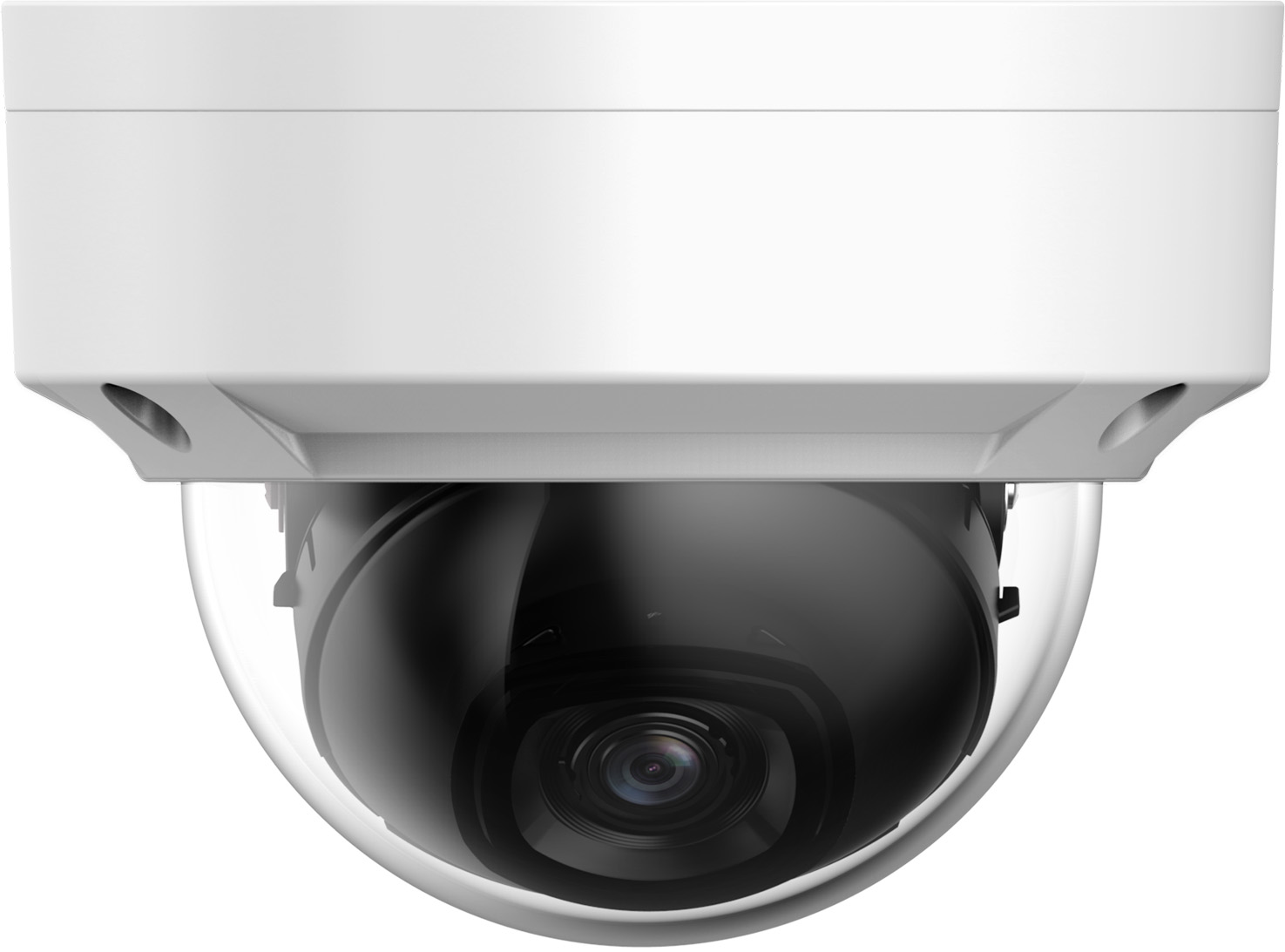

LTS LTDHIP7742W-28MD 4MP Lite AI IR Fixed focal Dome Network Camera 2.8mm

Model

LTDHIP7742W-28MD

Camera

Image Sensor

1/3� 4Megapixel progressive CMOS

Effective Pixels

2688 (H) x 1520 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s�1/100000 s

Min. Illumination

0.005 Lux@F1.6

IR Distance

50 m (164.0 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

3 (IR LEDs)

Pan/Tilt/Rotation Range

Horizontal: 0°-355°; vertical: 0°-65°; rotation: 0°-355°

Lens

Lens Type

Fixed focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122°
3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100°
6 mm: Horizontal:52°; vertical: 28°; diagonal: 61°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens	2.8mm	3.6mm
Detect	56 m (183.7 ft)	80 m (262.5 ft)
Observe	22.4 m (73.5 ft)	32.0 m (105.0 ft)
Recognize	11.2 m (36.8 ft)	16.0 m (52.5 ft)
Identify	5.6 m (18.4 ft)	8.0 m (26.3 ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream (2688 � 1520@1�25/30 fps)
sub stream (704 � 576@1�25 fps/704 � 480@1�30 fps)
third stream (1280 � 720@1�25/30 fps)

Stream Capability

3 streams

Resolution

4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps�8192 Kbps
H.265: 3 Kbps�8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270°(Support 90°/270°with 1920 x 1080 resolution.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Audio Compression

G.711a; G.711Mu; G726; AAC

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP; FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast; ICMP;IGMP;NFS;PPPoE;802.1x;SNMP

Interoperability

ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec

Scene Self-adaptation

Yes

User/Host

20 (Total bandwidth: 64 M)

Edge Storage

FTP; SFTP; Micro SD Card (support max. 256 G); LTSCloud; NAS

Browser

IE: IE8, IE9, IE11
Chrome
Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Port

Audio Input

1-channel (RCA port)

Audio Output

1-channel (RCA port)

Alarm Input

1 channel in: 5mA 3V-5V DC

Alarm Output

1 channel out: 300mA 12V DC

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

<7.3W

Environment

Operating Conditions

-40℃ to +60℃ (-40℉ to +140℉)/less than ≤ 95% RH

Strorage Conditions

-40℃ to +60℃ (-40℉ to +140℉)

Ingress Protection

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm � Φ109.9 mm (3.2" � Φ4.3")

Net Weight

378 g (0.8 lb)

Gross Weight

523 g (1.2 lb)
