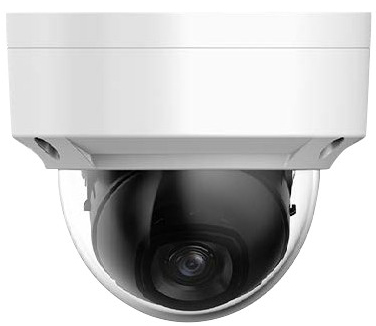

LTS LTDHIP7642NW-36M 4MP WDR IR Dome Network Camera 3.6mm

Model

LTDHIP7642NW-36M

Camera

Image Sensor

1/3" 4Megapixel progressive CMOS

Effective Pixels

2688 (H) x 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s-1/100000 s

Min. Illumination

0.008 Lux @ F1.6

IR Distance

30 m (98.43 ft)

IR On/Off Control

Auto/Manual

IR LEDs Number

Pan/Tilt/Rotation Range

Pan: 0°-355°
Tilt: 0°-65°
Rotation: 0°-355°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm:
Pan: 102.0°
Tilt: 55.0°
Diagonal: 121.0°
3.6 mm:
Pan: 84.0°
Tilt: 45.0°
Diagonal: 100.0°

Iris Type

Fixed aperture

Close Focus Distance

2.8 mm: 0.9 m (2.95 ft)
3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens	2.8mm	3.6mm
Detect	56 m (183.73 ft)	80 m (262.47 ft)
Observe	22.4 m (73.49 ft)	32 m (104.99 ft)
Recognize	11.2 m (36.75 ft)	16 m (52.49 ft)
Identify	5.6 m (19.37 ft)	8 m (26.25 ft)

Smart Event

General IVS Analytics

Tripwire; intrusion

Video

Video Compression

H.265; H.264; H.264B; MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream:
2688 x 1520 (1 fps-20 fps)
2560 x 1440 (1 fps-25/30 fps)
Sub stream:
704 x 576 (1 fps-25 fps)
704 x 480 (1 fps-30 fps)

Stream Capability

2 streams

Resolution

2688 x 1520 (2688 x 1520); 2560 x 1440 (2560 x 1440); 2304 x 1296 (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 ╫480); CIF (352 x 288/352 x 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps-6144 kbps
H.265: 12 kbps-6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart IR

Yes

Image Rotation

0°/90°/180°/270° (Supports 90°/270° with 2688 x 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 (10/100 Base-T)

Protocol

IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI; P2P; Milestone; Genetec

User/Host

Edge Storage

LTS Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

≤ 5.2W

Environment

Operating Conditions

-40℃ to +60℃ (-40℉ to +140℉)/less than ≤ 95% RH

Storage Temperature

-40℃ to +60℃ (-40℉ to +140℉)

Protection Grade

IP67; IK10

Structure

Casing

Metal

Dimensions

81 mm x Φ109.9 mm (3.19" x Φ4.33")

Net Weight

0.350 kg (0.77 lb)

Gross Weight

0.491 kg (1.08 lb)
